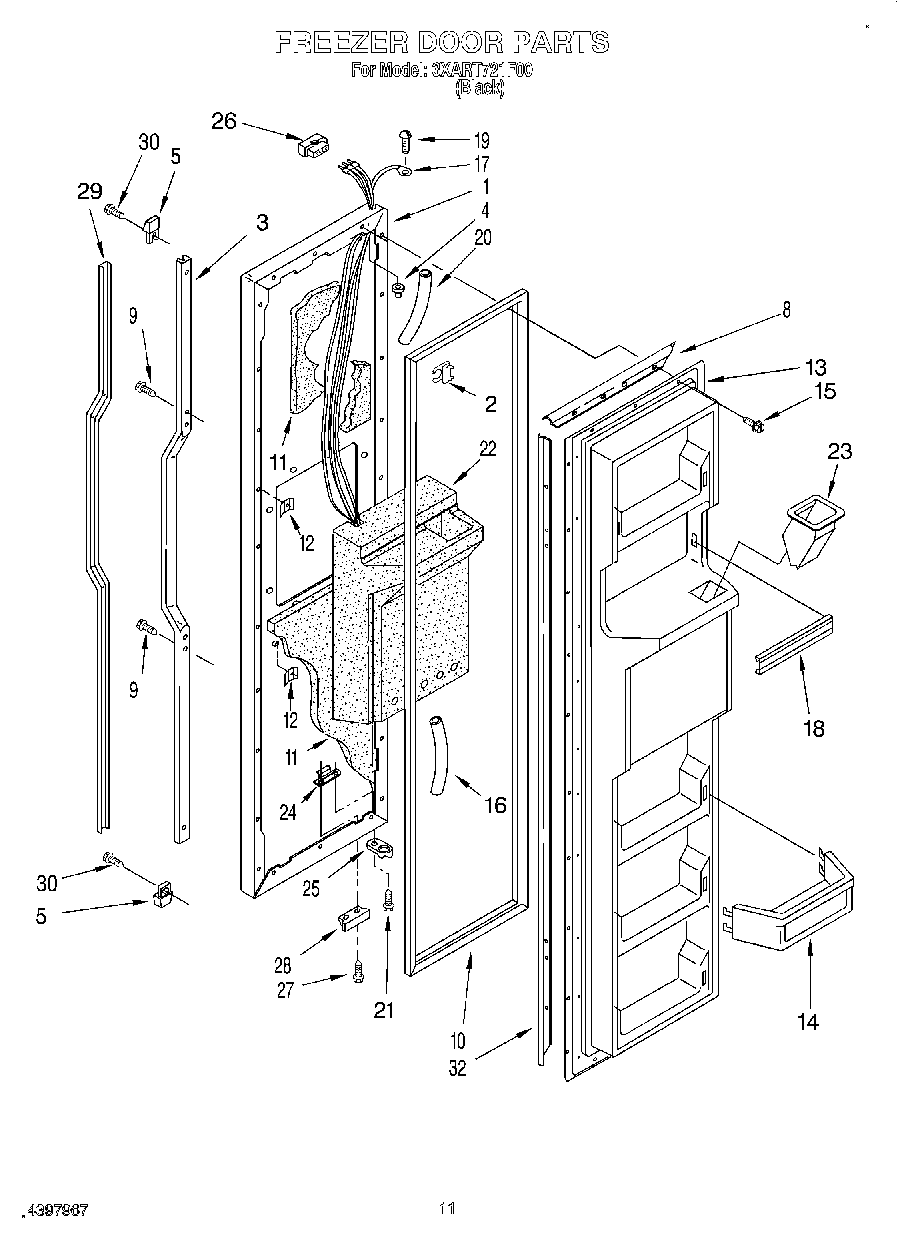

3XART721F00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Also Order Item 11)
2	Clip
3	Retainer, Insert (Black)
4	Seal, Hinge Pin
5	End Cap (Black)
8	Retainer, Gasket
9	WP489463 Whirlpool Refrigerator Screw
10	Door, Gasket Magnetic
11	WPL 876029
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
14	Trim, Door Shelf (4)
15	WP489069 Whirlpool Compactor Screw
16	Tube, Door Wiring
17	Wire Harness
18	TRIM-DOOR
19	WP3400906 Whirlpool Refrigerator Screw
20	Tube, Door Wiring
21	WP3400012 Whirlpool Refrigerator Screw
22	Insulation, Dispenser
23	Chute, Ice
24	Tap, Plate
25	4318165 Whirlpool Refrigerator Door Closure Cam Kit
26	WP2154473 Whirlpool Refrigerator Connector
27	WP489483 Whirlpool Screw
28	Bracket, Door Stop (Black)
29	Insert, Handle (Black)
30	WP3400852 Whirlpool Refrigerator Screw
32	Retainer, Gasket
