3XART721F01 03 – FREEZER LINER

3XART721F01 03 – FREEZER LINER

Written by

in

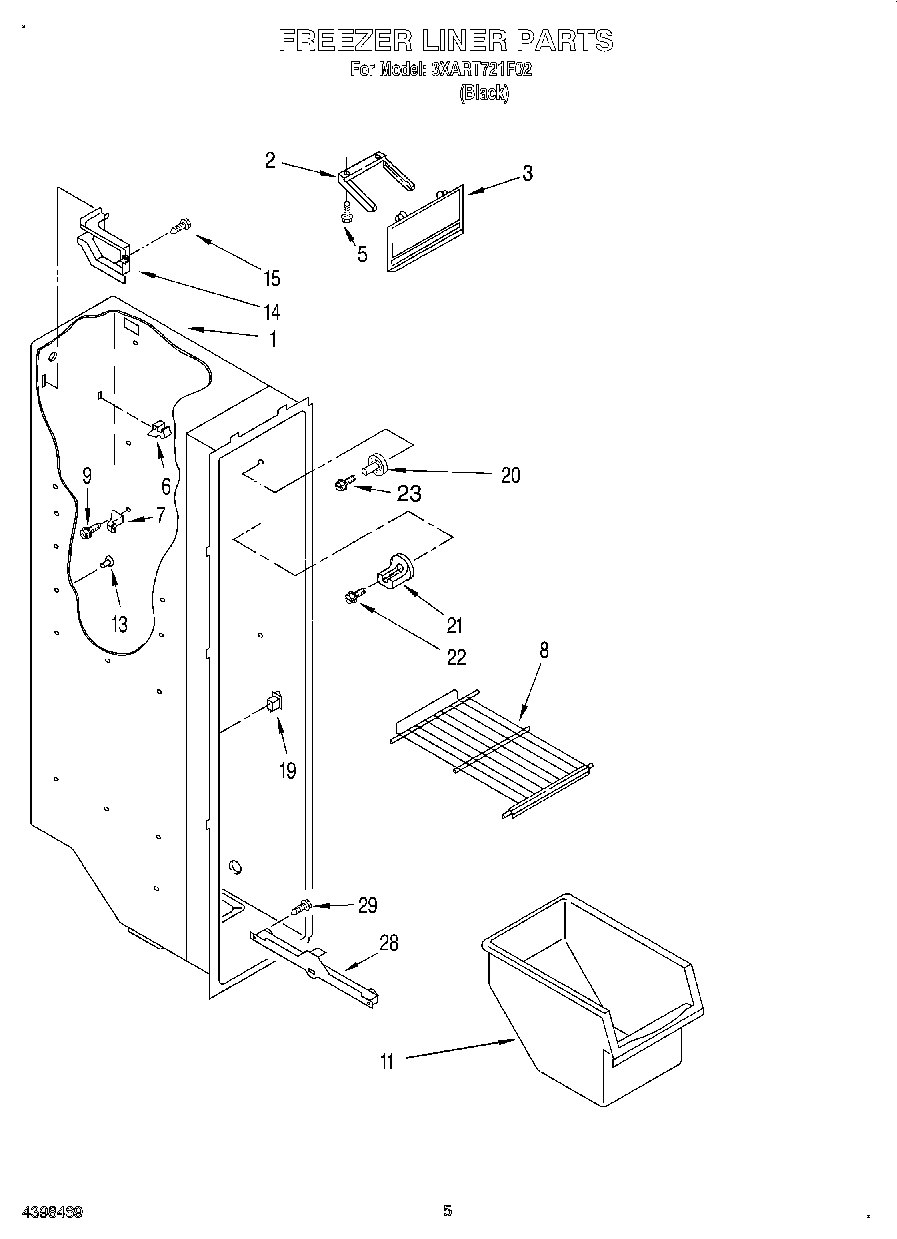

3XART721F01 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8Shelf (1)
11Bin, Freezer
13Grommet
14Cover, Wiring
15SCREW
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
21Stud, Rear
22W10142289 Whirlpool Air Conditioner Screw
23WP3400806 Whirlpool Screw
28W10845583 Whirlpool Refrigerator Track
28Slide, Basket (Left Side)
29718257 Whirlpool Dishwasher Screw
