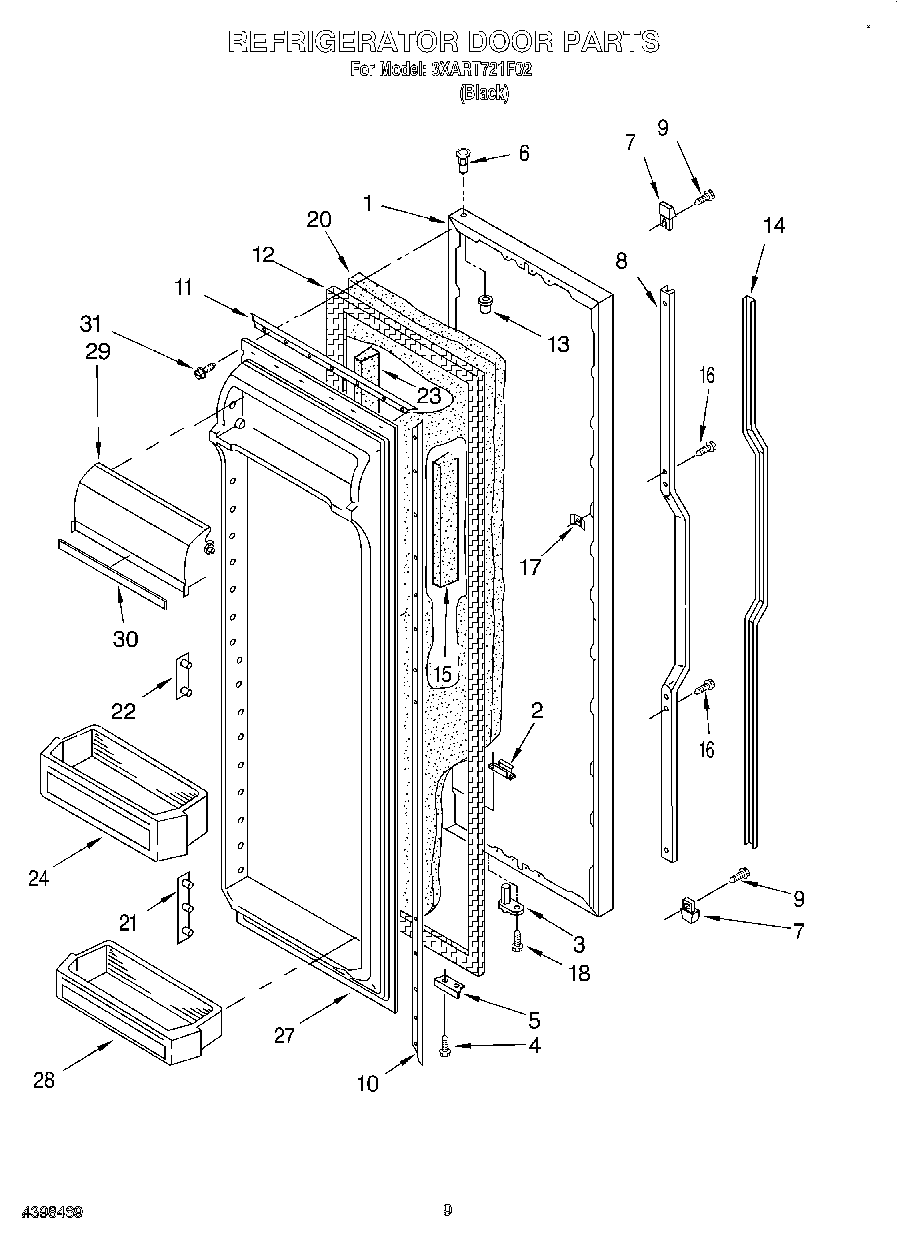

3XART721F01 05 – REFRIGERATOR DOORadmin2025-04-26T12:25:15+00:003XART721F01 05 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel |
| 2 | SCREW PLATE |
| 3 | WP2182179 Whirlpool Cam Closer |
| 4 | WP489483 Whirlpool Screw |
| 5 | Bracket, Door Stop (Black) |
| 6 | WP2182181 Whirlpool Refrigerator Thimble |
| 7 | End Cap (Black) |
| 8 | Retainer, Insert (Black) |
| 9 | WP3400852 Whirlpool Refrigerator Screw |
| 10 | Retainer, Gasket |
| 11 | Gasket Retainer, Top & Bottom |
| 12 | Door Gasket, Magnetic |
| 13 | Cap, Hinge Sleeve (2) |
| 14 | Insert, Handle (Black) |
| 15 | Door Dike, Handle Side |
| 16 | WP489463 Whirlpool Refrigerator Screw |
| 17 | Screw Anchor (2) |
| 18 | WP3400012 Whirlpool Refrigerator Screw |
| 20 | WPL 876029 |
| 21 | Pin Plate |
| 22 | Pin Plate |
| 23 | Door Dike, Hinge Side |
| 24 | Shelf Bin (2) |
| 27 | Interior Door Panel (Also Order Item No.15) |
| 28 | Shelf Bin |
| 29 | Door, Compartment |
| 30 | Trim, Door Compartment |
| 31 | WP489069 Whirlpool Compactor Screw |
