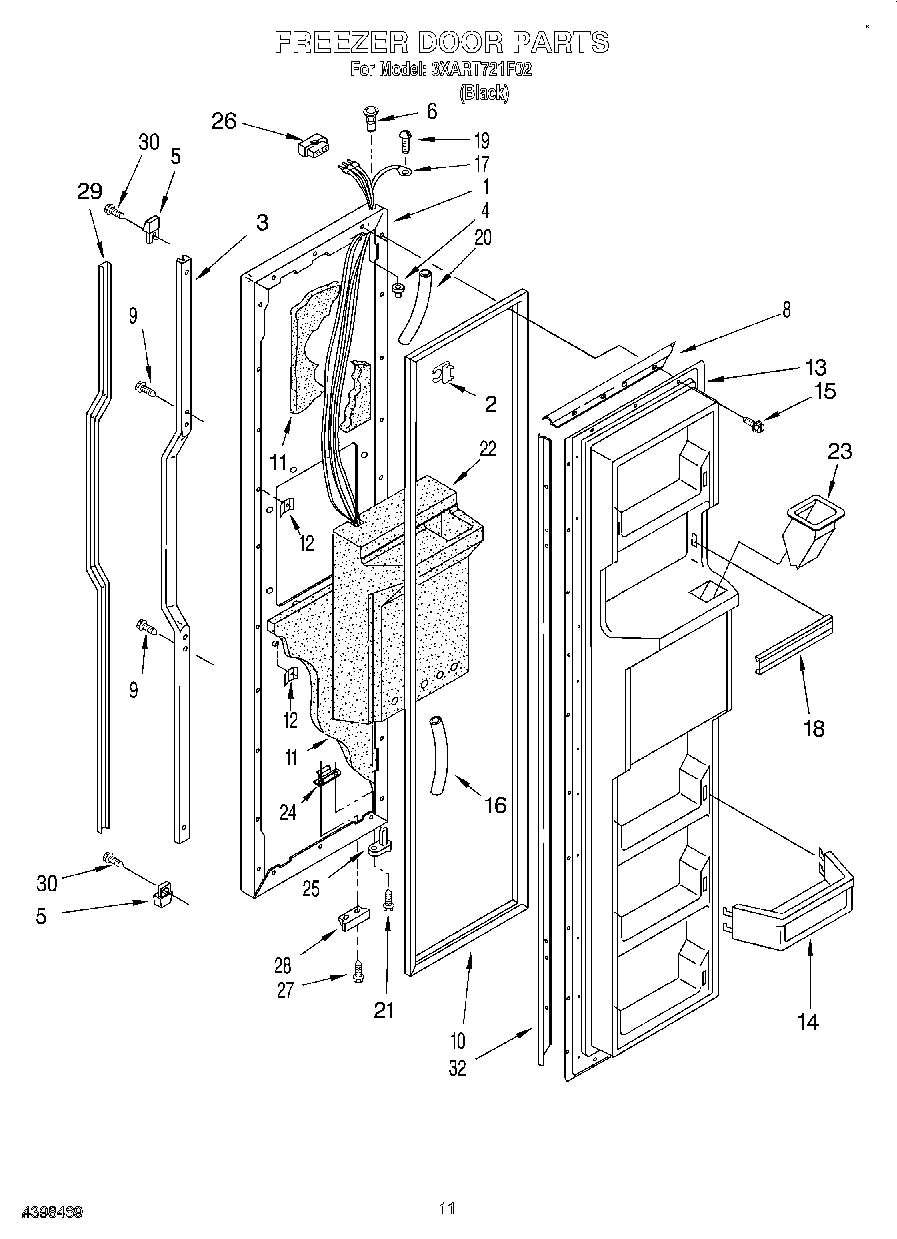

3XART721F01 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel
2	Clip
3	Retainer, Insert (Black)
4	Cap, Hinge Sleeve (2)
5	End Cap (Black)
6	WP2182181 Whirlpool Refrigerator Thimble
8	Retainer, Gasket
9	WP489463 Whirlpool Refrigerator Screw
10	Door, Gasket Magnetic
11	WPL 876029
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
14	Trim, Door Shelf (4)
15	WP489069 Whirlpool Compactor Screw
16	Tube, Water Line
17	Wire Harness
18	TRIM-DOOR
19	WP3400906 Whirlpool Refrigerator Screw
20	Tube, Door Wiring
21	WP3400012 Whirlpool Refrigerator Screw
22	Insulation, Dispenser
23	Chute, Ice
24	SCREW PLATE
25	WP2182179 Whirlpool Cam Closer
26	WP2154473 Whirlpool Refrigerator Connector
27	WP489483 Whirlpool Screw
28	Bracket, Door Stop (Black)
29	Insert, Handle (Black)
30	WP3400852 Whirlpool Refrigerator Screw
32	Retainer, Gasket
