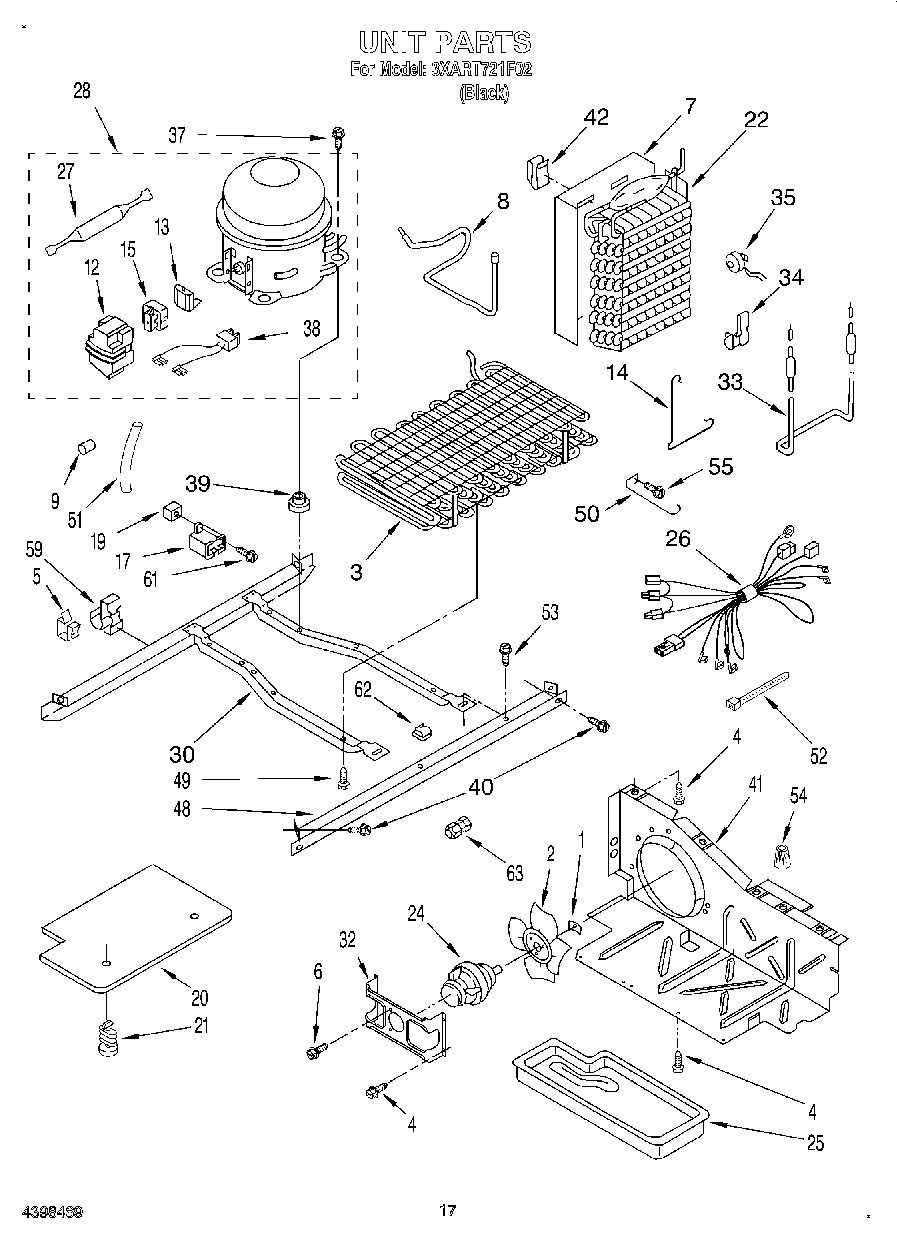

3XART721F01 10 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W10169512 Whirlpool Clip
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	2205764 Whirlpool Refrigerator Tube
9	WP2158826 Whirlpool Refrigerator Dampener
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2176790 Whirlpool Refrigerator Overload
13	4388786 Whirlpool Refrigerator Overload
14	Clamp
15	WP2262184 Whirlpool Refrigerator Start Relay
17	WP2201147 Whirlpool Refrigerator Capacitor
19	Screw Grommet
20	Cover, Unit Compartment
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10183407 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire
61	W11693756 Whirlpool Screw Assembly
62	Clip, Tube (3)
63	978026 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	VALVE, ACCESS (5/8“)
63	WP978025 Whirlpool Refrigerator Valve
63	978030 Whirlpool Refrigerator Valve
63	WP4318044 Whirlpool Refrigerator Connector
63	876764 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
