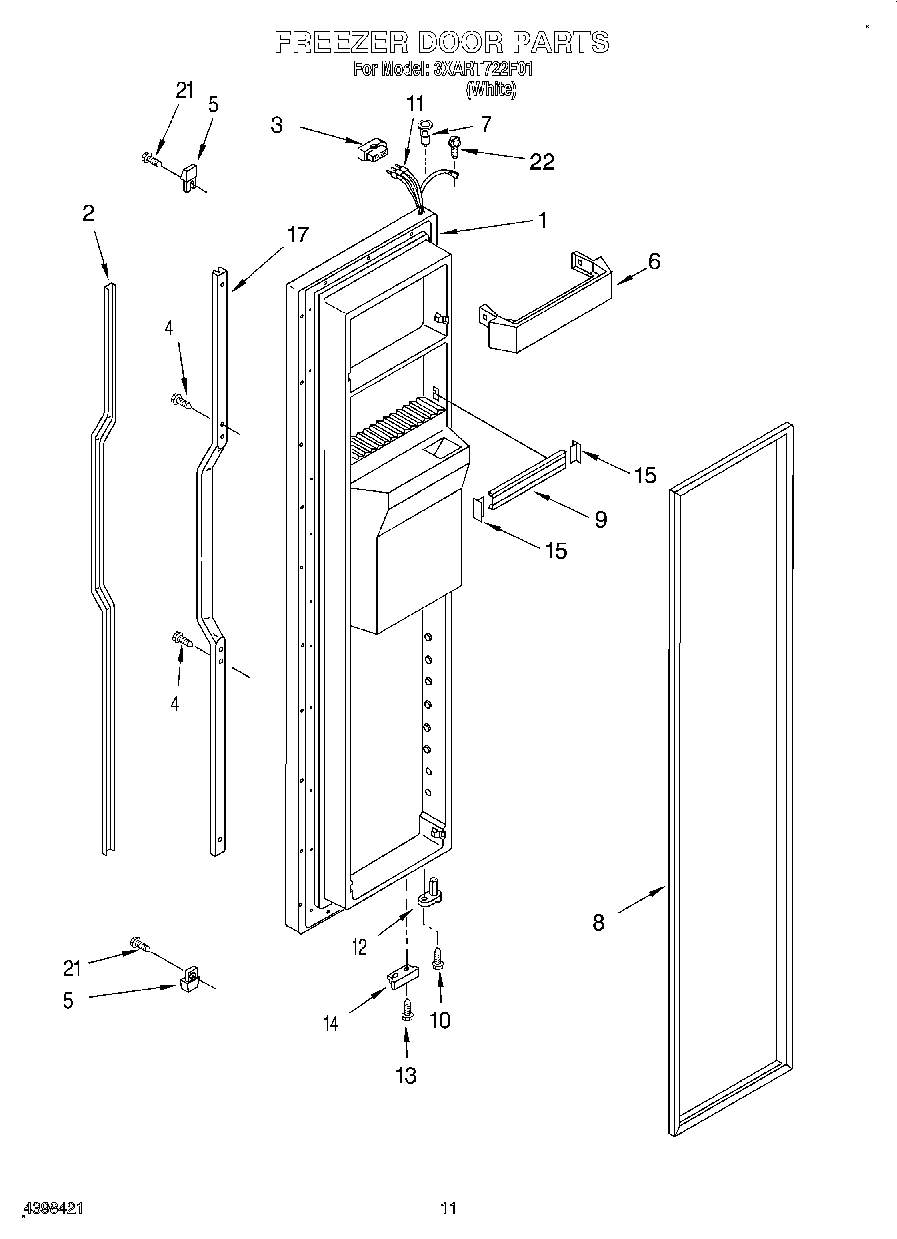

3XART722F01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door
2	Insert, Handle
3	WP2154473 Whirlpool Refrigerator Connector
4	WP489463 Whirlpool Refrigerator Screw
5	End Cap, Handle
6	WP2156021 Whirlpool Refrigerator Door Trim
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Retainer, Insert
21	WP3400852 Whirlpool Refrigerator Screw
22	WP488234 Whirlpool Air Conditioner Screw
