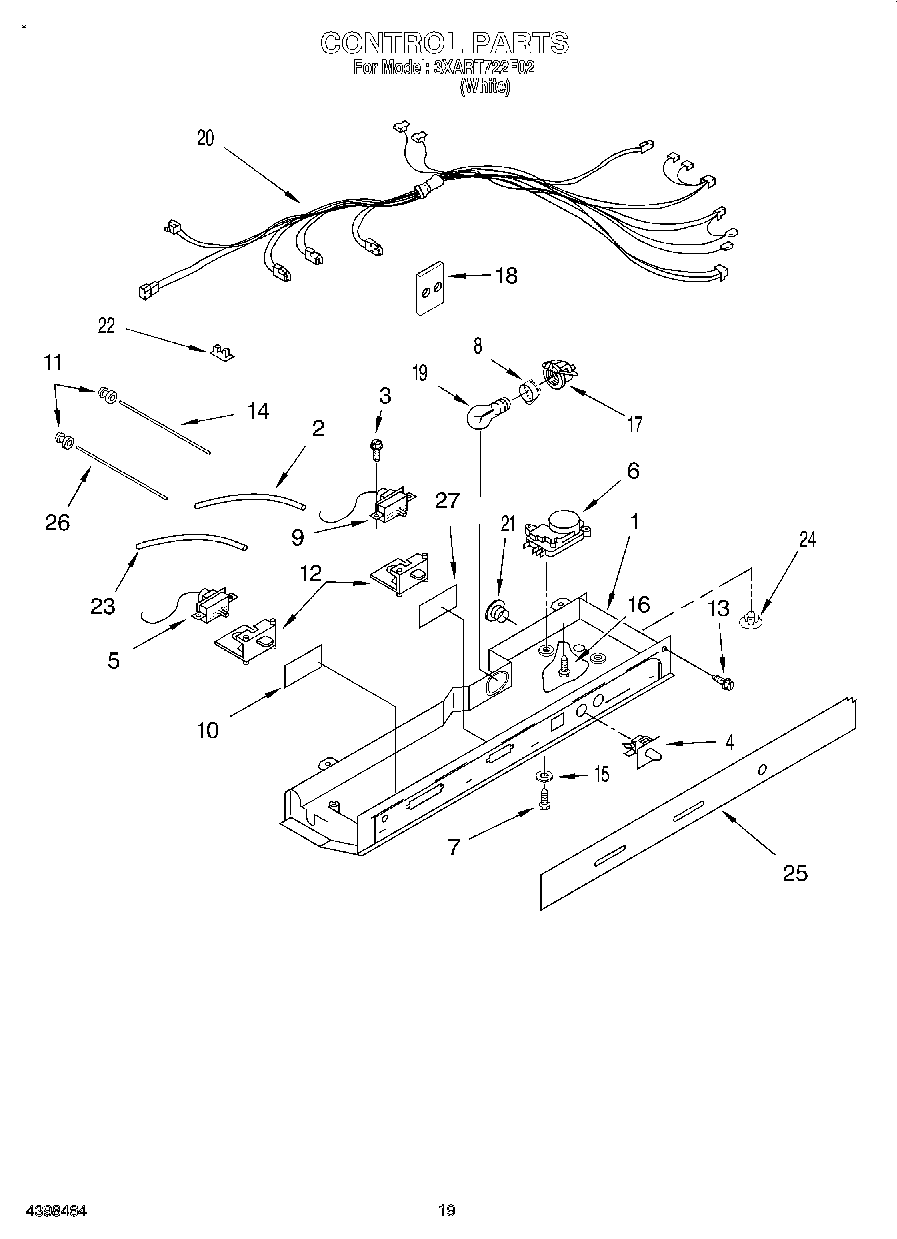

3XART722F02 12 – CONTROL, OPTIONAL

3XART722F02 12 – CONTROL, OPTIONAL

Written by

in

3XART722F02 12 – CONTROL, OPTIONAL

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Thermostat (FC)
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8WP2175210 Whirlpool Refrigerator Shroud
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15Washer
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21940014 Whirlpool Refrigerator Primary Button Plug
22CLIP, WIRING
24Hole Plug
25Escutcheon, Control Box
26Light Bar (FC)
27350942 Whirlpool Spray Paint
27212643 Whirlpool Refrigerator Permagum Sealer
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
27350930 Whirlpool White Spray Paint
27Window
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27511873 Whirlpool Refrigerator Paint
27WPW10312301 Whirlpool Refrigerator Ice Container
27606755 Whirlpool Refrigerator Bag
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27Enamel, Black (1 Qt. Uncut)
27WPL 799833
27WPL 876029
27Torx Key
27285006 Whirlpool Spray
2772032 Whirlpool Touch Up Paint Black
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
27TAPE, VINYL (3/4 X 108“)
