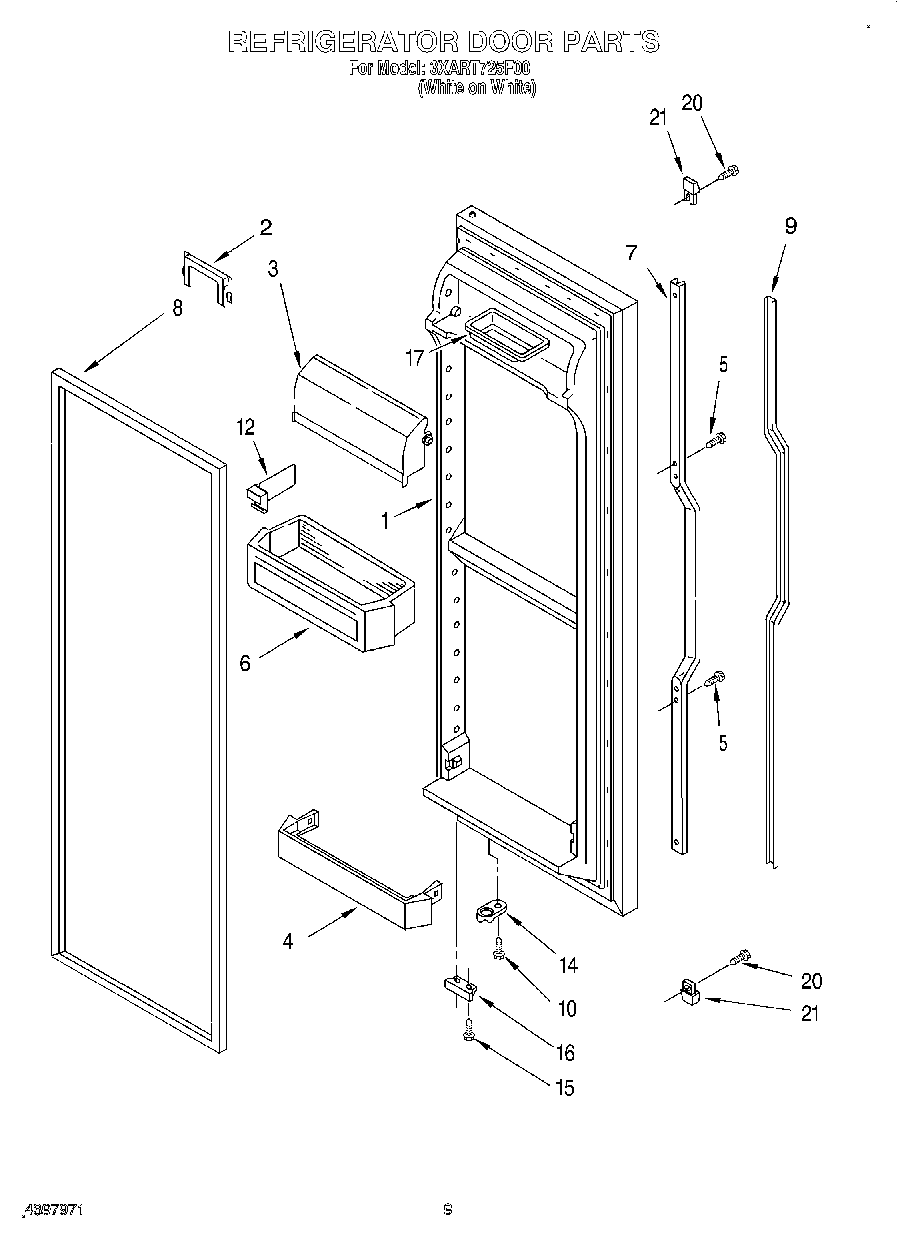

3XART725F00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (White)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489463 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7Retainer, Insert
82159075 Whirlpool Door Gasket Seal
9Insert, Handle
10WP3400012 Whirlpool Refrigerator Screw
12Divider, Bin
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
17Butter Tray
20WP3400852 Whirlpool Refrigerator Screw
21End Cap, Handle
