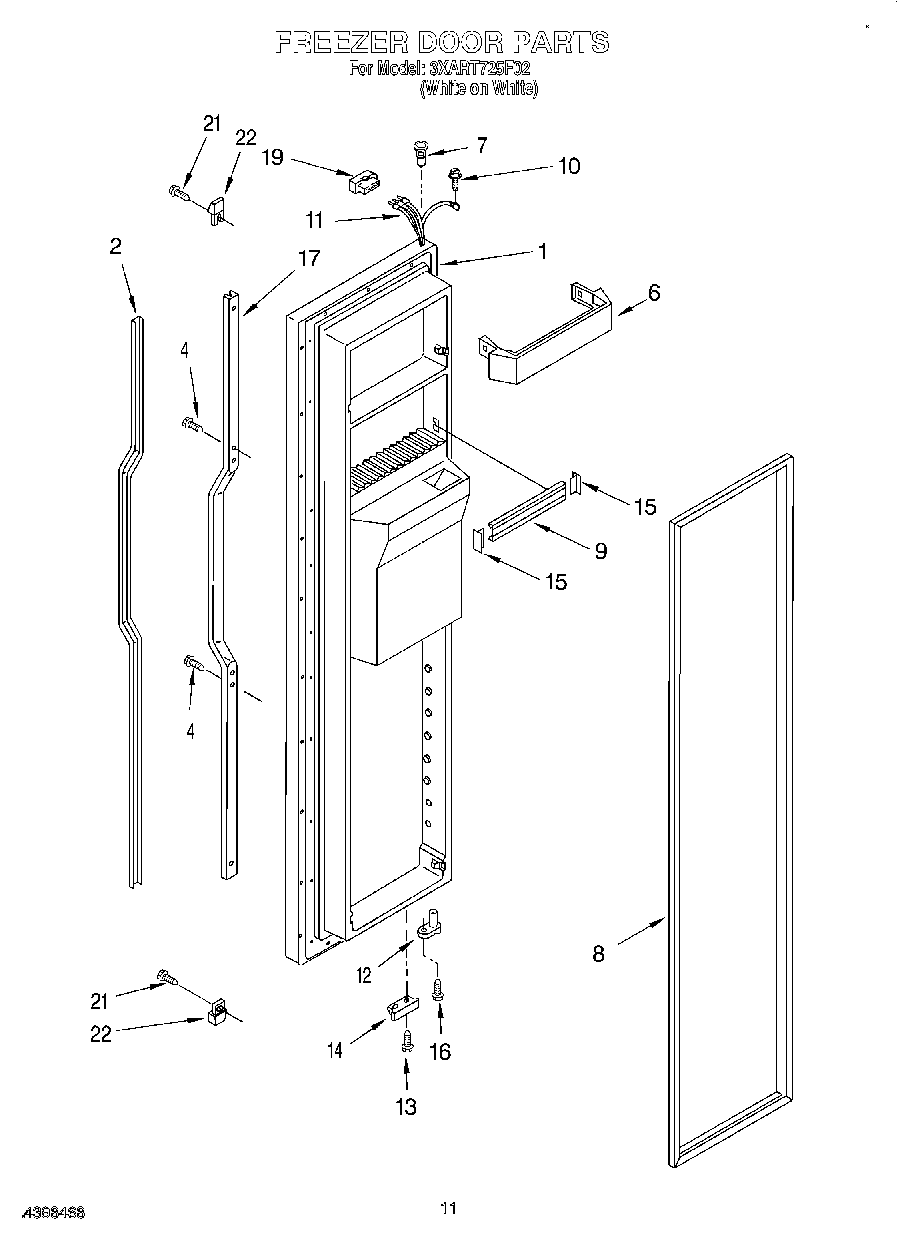

3XART725F02 07 – FREEZER DOOR

3XART725F02 07 – FREEZER DOOR

Written by

in

3XART725F02 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2Insert, Handle
4WP489463 Whirlpool Refrigerator Screw
6WP2171157 Whirlpool Shelf Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP488234 Whirlpool Air Conditioner Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16WP3400012 Whirlpool Refrigerator Screw
17Retainer, Insert
19WP2154473 Whirlpool Refrigerator Connector
21WP3400852 Whirlpool Refrigerator Screw
22End Cap, Handle
