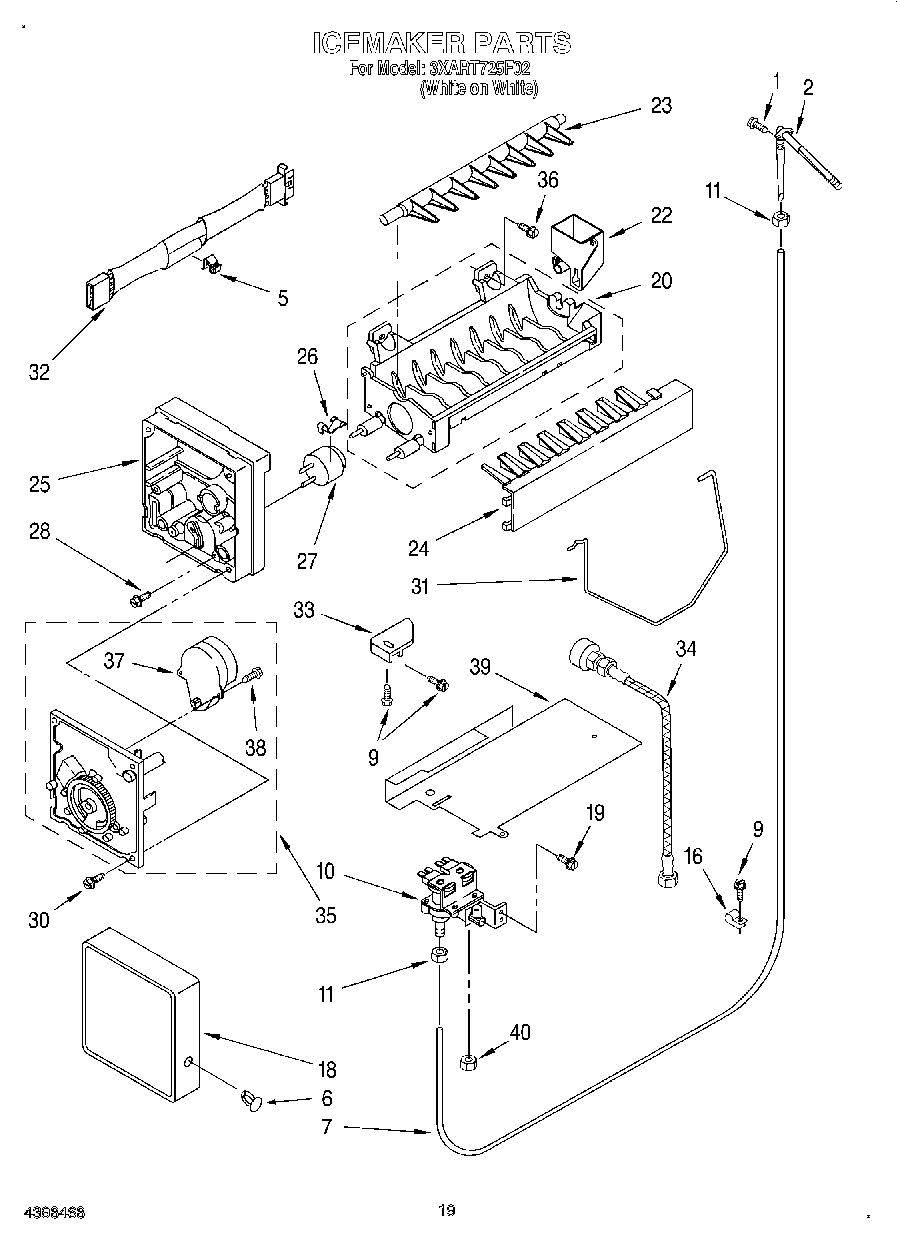

3XART725F02 12 – ICEMAKER, OPTIONAL

3XART725F02 12 – ICEMAKER, OPTIONAL

Written by

in

3XART725F02 12 – ICEMAKER, OPTIONAL

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
5	WP628379 Whirlpool Refrigerator Clip
6	WP489115 Whirlpool Refrigerator Rivet
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10122523 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	European Water Connection Tube
35	W10190933 Whirlpool Refrigerator Motor Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
39	2256178 Whirlpool Shield Assembly
40	350930 Whirlpool White Spray Paint
40	285006 Whirlpool Spray
40	72032 Whirlpool Touch Up Paint Black
40	Almond (Uncut)
40	WP72107 Whirlpool Touchup
40	350942 Whirlpool Spray Paint
40	WPW10312300 Whirlpool Refrigerator Ice Container
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	833938 Whirlpool Refrigerator Terminal
40	212643 Whirlpool Refrigerator Permagum Sealer
40	876370 Whirlpool Refrigerator Insulation
40	WP503695 Whirlpool Refrigerator Sealer
40	606755 Whirlpool Refrigerator Bag
40	WP505587 Whirlpool Refrigerator Sealer
40	WP542638 Whirlpool Refrigerator Grease
40	Torx Key
40	TAPE, VINYL (3/4 X 108“)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	Enamel, Black (1 Qt. Uncut)
40	WPL 799833
40	WPL 876029
40	511873 Whirlpool Refrigerator Paint
40	Nut, Compression
