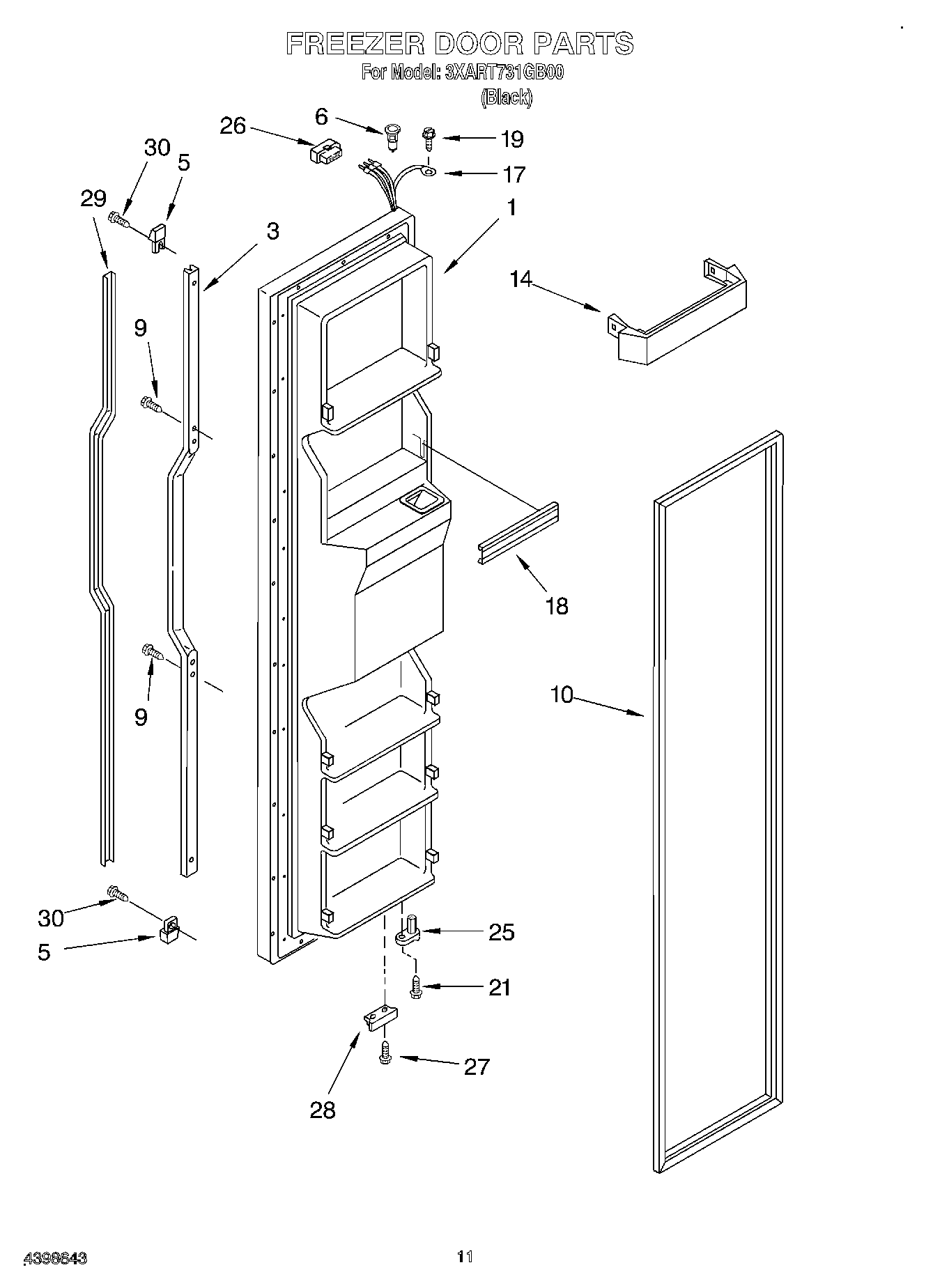

3XART731GB00 06 – FREEZER DOOR

3XART731GB00 06 – FREEZER DOOR

Written by

in

3XART731GB00 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.10)
3Retainer, Insert (Black)
5End Cap (Black)
6WP2182181 Whirlpool Refrigerator Thimble
9WP489463 Whirlpool Refrigerator Screw
102159080 Whirlpool Refrigerator Door Gasket
14WP2156021 Whirlpool Refrigerator Door Trim
17Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP3400906 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
26Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop (Black)
29Insert, Handle (Black)
30WP3400852 Whirlpool Refrigerator Screw
