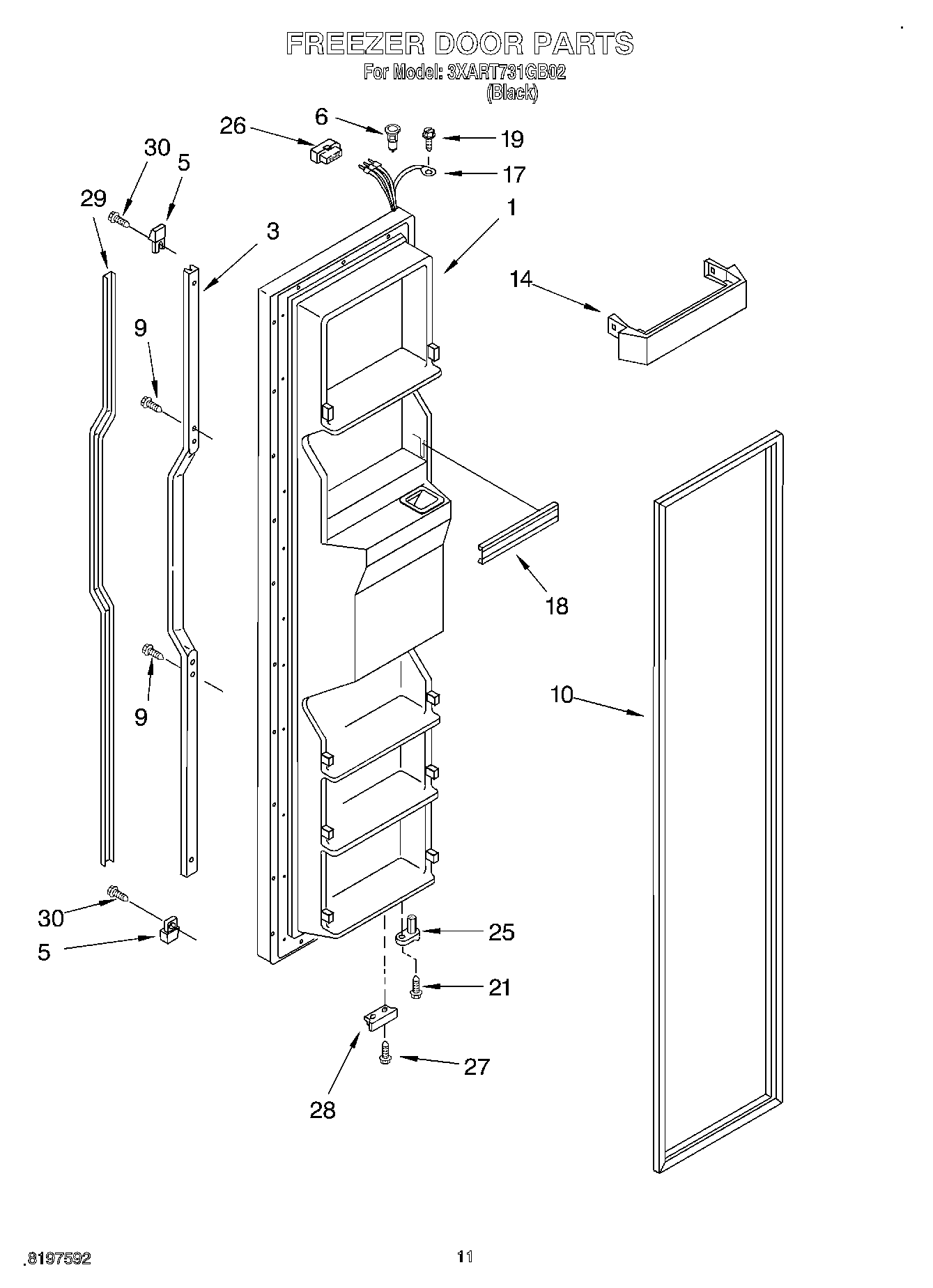

3XART731GB02 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.10)
3	Retainer, Insert (Black)
5	End Cap (Black)
6	WP2182181 Whirlpool Refrigerator Thimble
9	WP489463 Whirlpool Refrigerator Screw
10	2159080 Whirlpool Refrigerator Door Gasket
14	WP2156021 Whirlpool Refrigerator Door Trim
17	Wire Harness
18	WPW10307490 Whirlpool Door Trim Assembly
19	WP489128 Whirlpool Refrigerator Screw
21	WP3400012 Whirlpool Refrigerator Screw
25	WP2182179 Whirlpool Cam Closer
26	Connector
27	WP489483 Whirlpool Screw
28	Bracket, Door Stop (Black)
29	Insert, Handle (Black)
30	WP3400852 Whirlpool Refrigerator Screw
