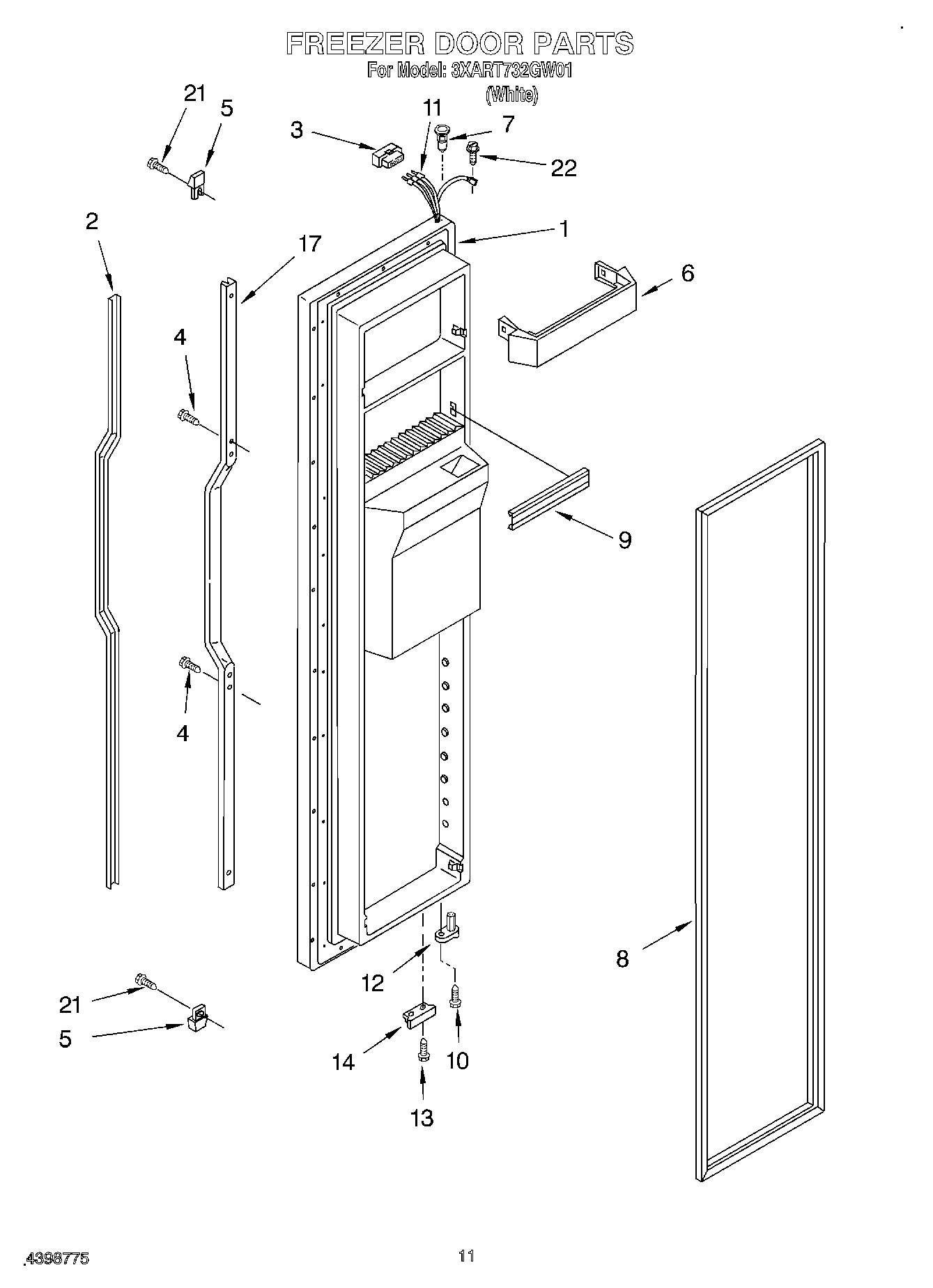

3XART732GW01 08 – FREEZER DOOR

3XART732GW01 08 – FREEZER DOOR

Written by

in

3XART732GW01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door
2Insert, Handle
3Connector
4WP489463 Whirlpool Refrigerator Screw
5End Cap, Handle
6WP2156021 Whirlpool Refrigerator Door Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
17Retainer, Insert
21WP3400852 Whirlpool Refrigerator Screw
22WP489128 Whirlpool Refrigerator Screw
