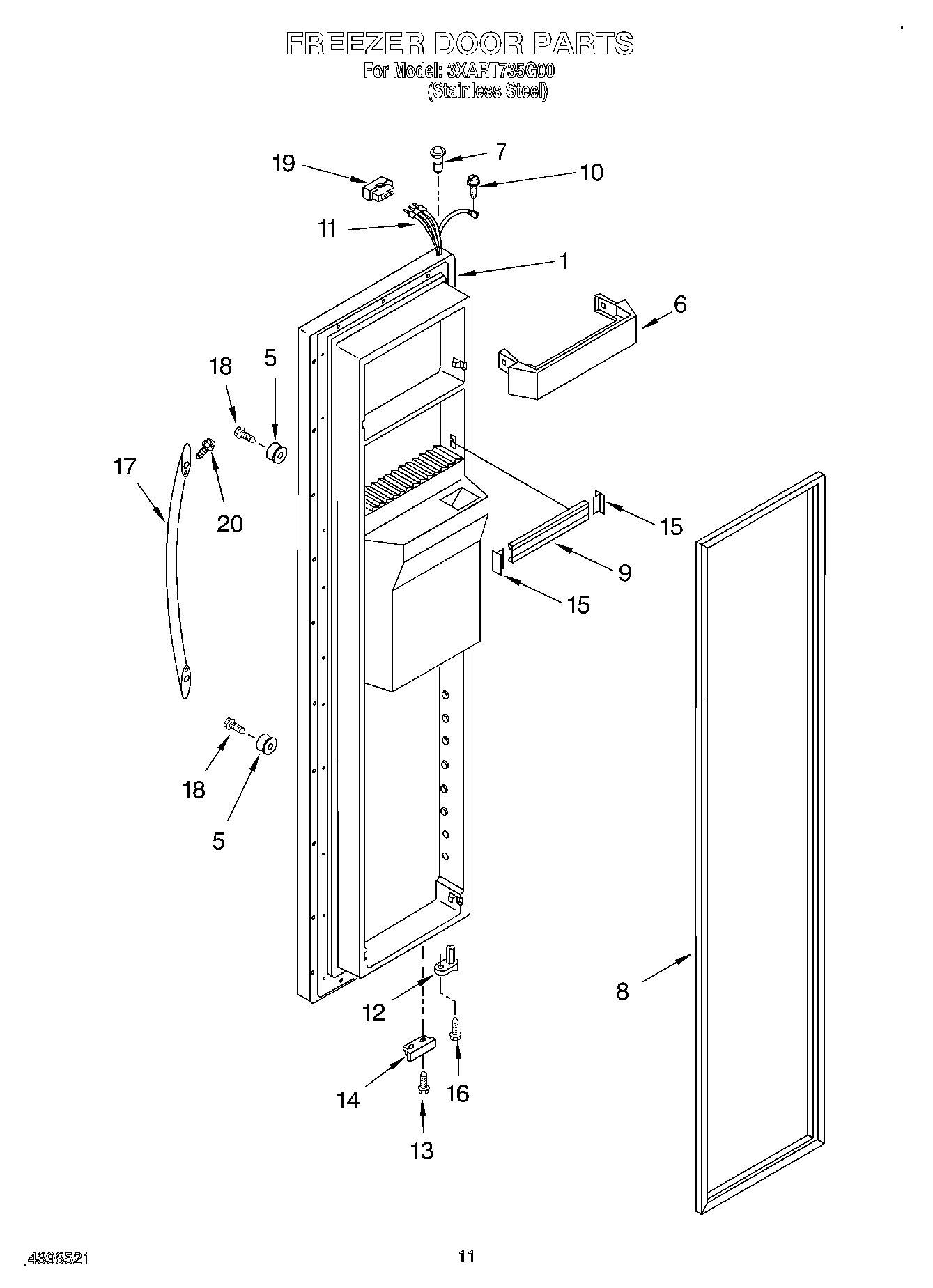

3XART735G00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
5	Stud, Handle
6	Trivet, Shelf (4)
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	WP3400012 Whirlpool Refrigerator Screw
17	Handle
18	WP489463 Whirlpool Refrigerator Screw
19	WP2154473 Whirlpool Refrigerator Connector
20	Setscrew, 10-32
