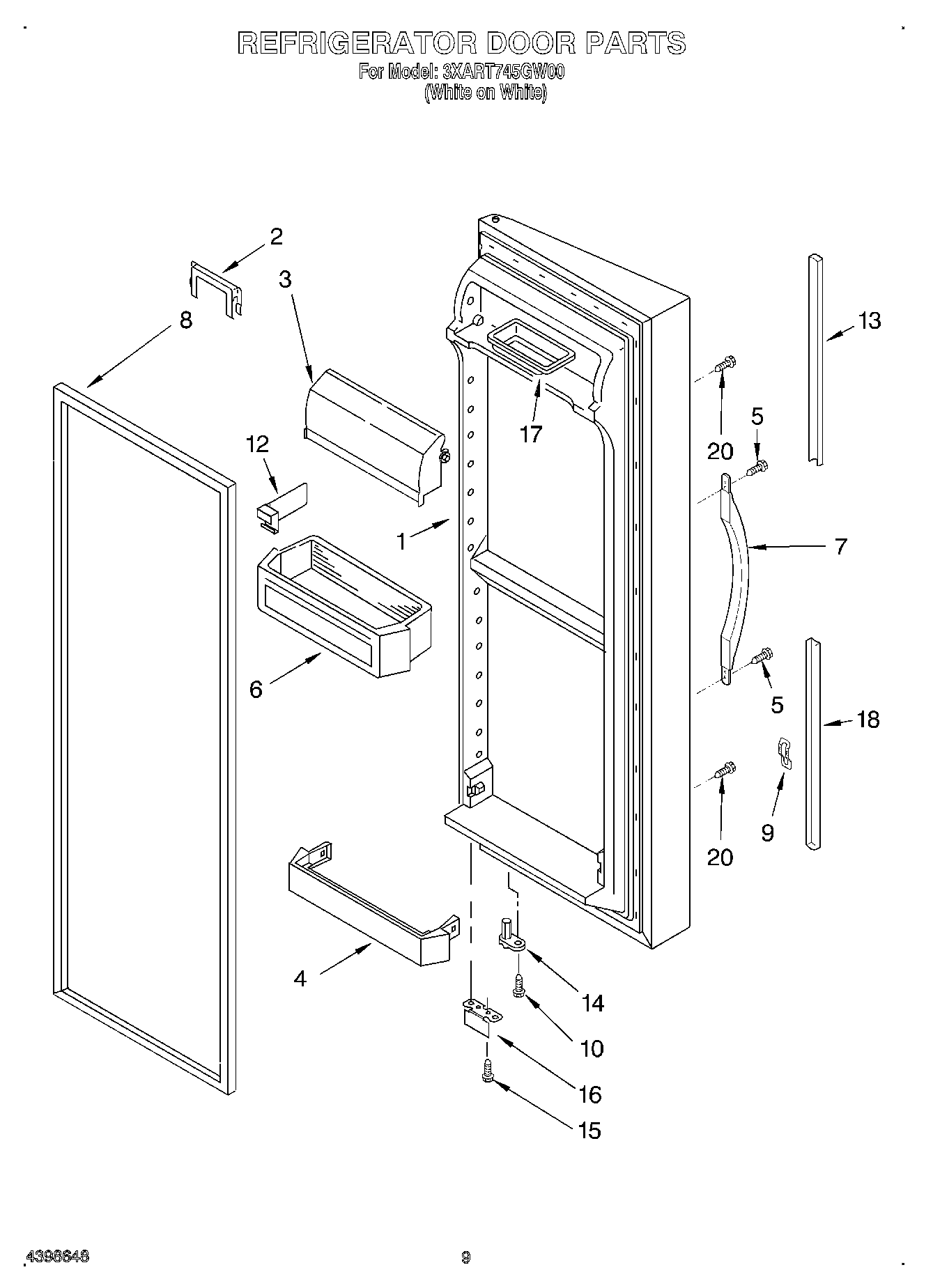

3XART745GW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.6) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Handle (White)
8	2159075 Whirlpool Door Gasket Seal
9	WP2195327 Whirlpool Refrigerator Clip
10	WP3400012 Whirlpool Refrigerator Screw
12	Divider, Bin
13	Trim, Door-Top (White)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
17	Butter Tray
18	Trim, Door-Bottom (White)
20	WP3400852 Whirlpool Refrigerator Screw
