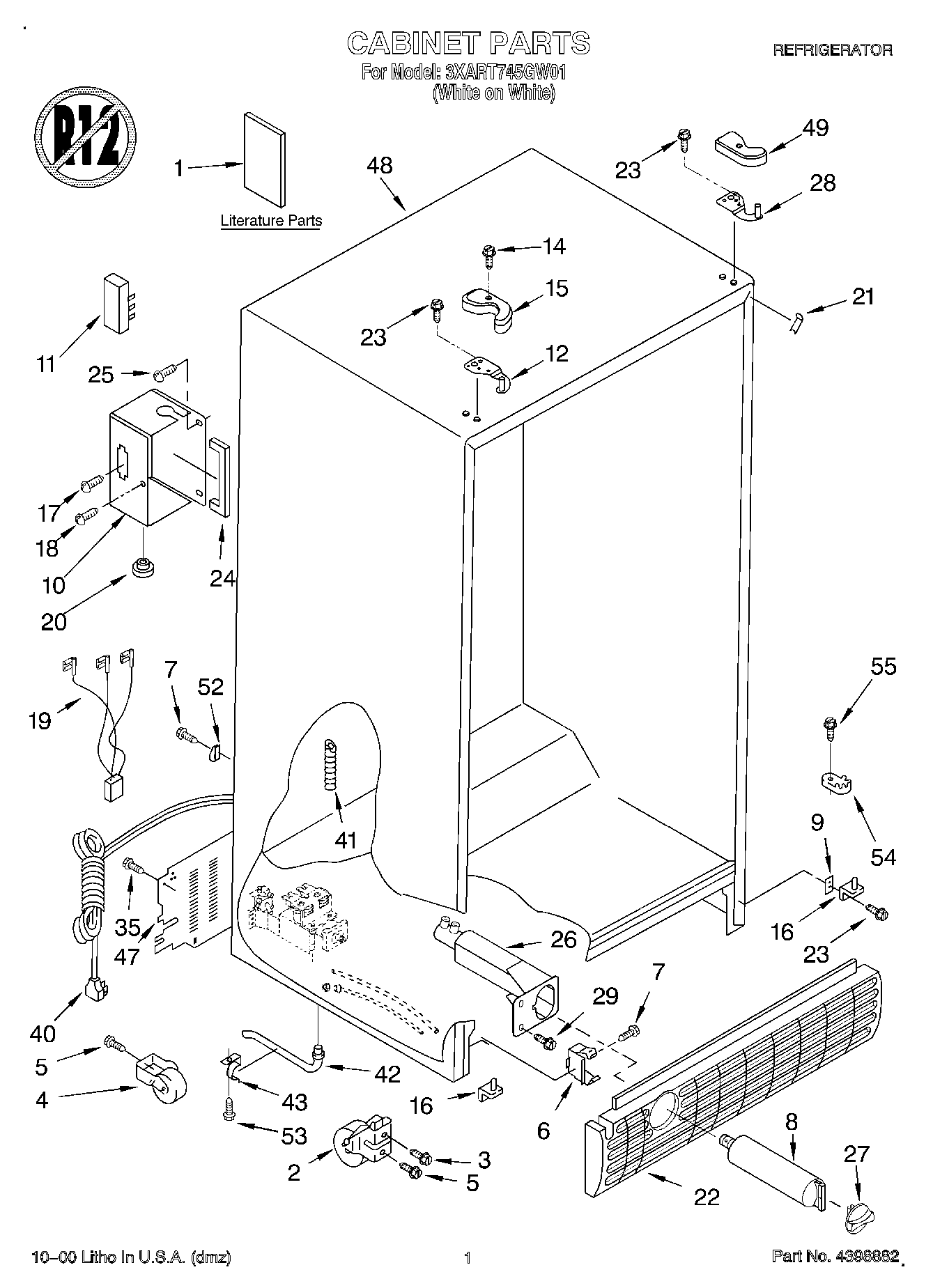

3XART745GW01 01 – CABINET, LITERATURE

Products

Position	Product
1	WPL LIT628371
1	LITERATURE PARTS (Wiring Diagram)
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
9	WP2209697 Whirlpool Refrigerator Shim
9	WP2181911 Whirlpool Refrigerator Shim
10	Enclosure, Terminal Block
11	Terminal Block
12	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WPW10272364 Whirlpool Refrigerator Screw
18	WP489399 Whirlpool Refrigerator Screw
19	Wiring Assembly
20	Bushing
21	Filler, Wrapper (White)
22	W10803964 Whirlpool Grille Assembly
23	WP489497 Whirlpool Screw
24	Gasket
25	WP489463 Whirlpool Refrigerator Screw
26	WP2186443 Whirlpool Water Filter Housing
27	WP2186494W Whirlpool Water Filter Cap
28	WP2203771 Whirlpool Refrigerator Door Hinge
29	WP489500 Whirlpool Refrigerator Screw
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
