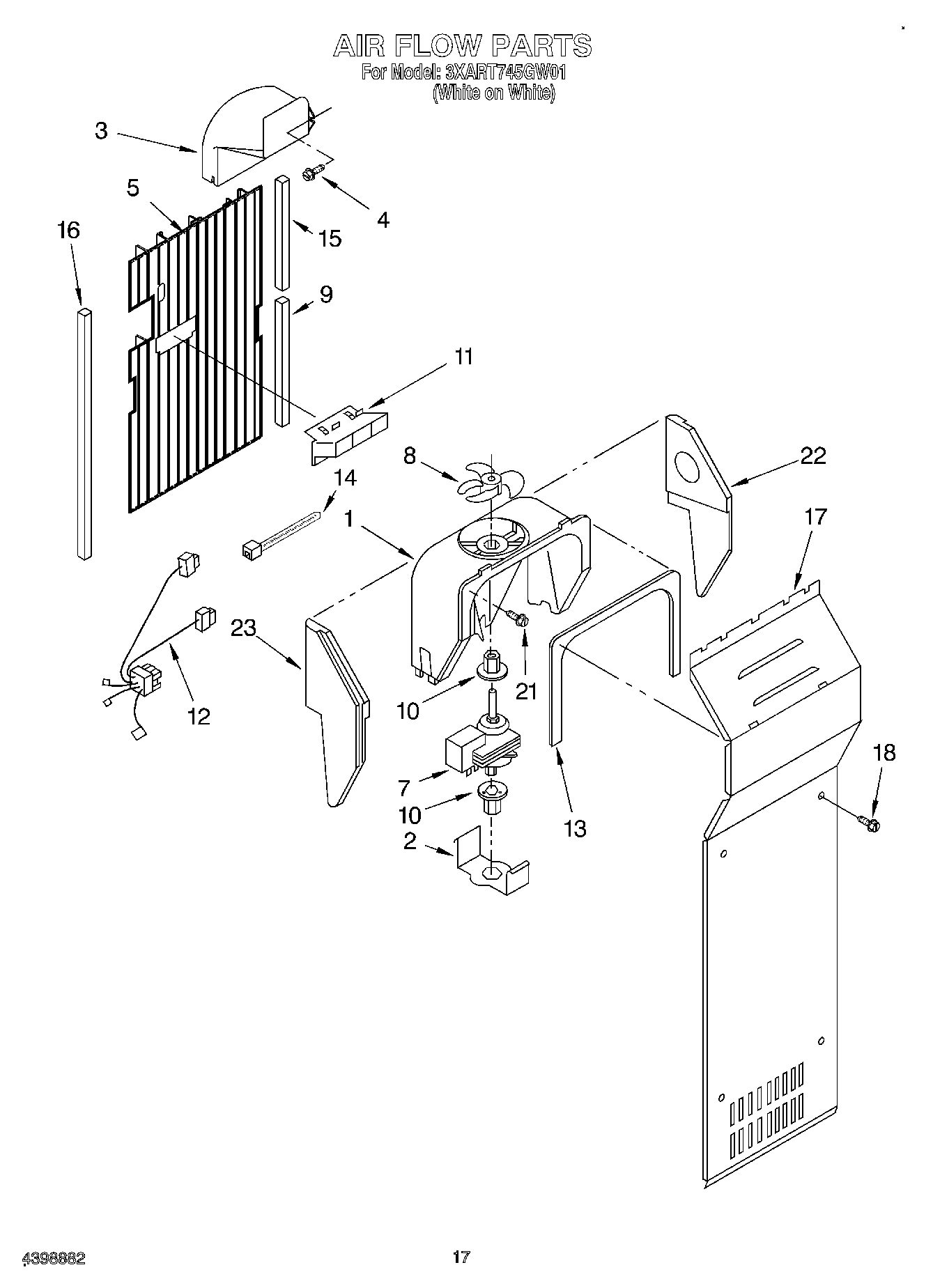

3XART745GW01 10 – AIR FLOW

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
5	Air Duct Freezer
7	Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2209606 Whirlpool Gasket Assembly
10	WP2176759 Whirlpool Refrigerator Grommet
11	2182146 Whirlpool Refrigerator Duct
12	Harness, Fan, Evaporator, And Heater
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
15	WP2209607 Whirlpool Gasket Assembly
16	4388500 Whirlpool Refrigerator Gasket
17	Cover, Evaporator
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
