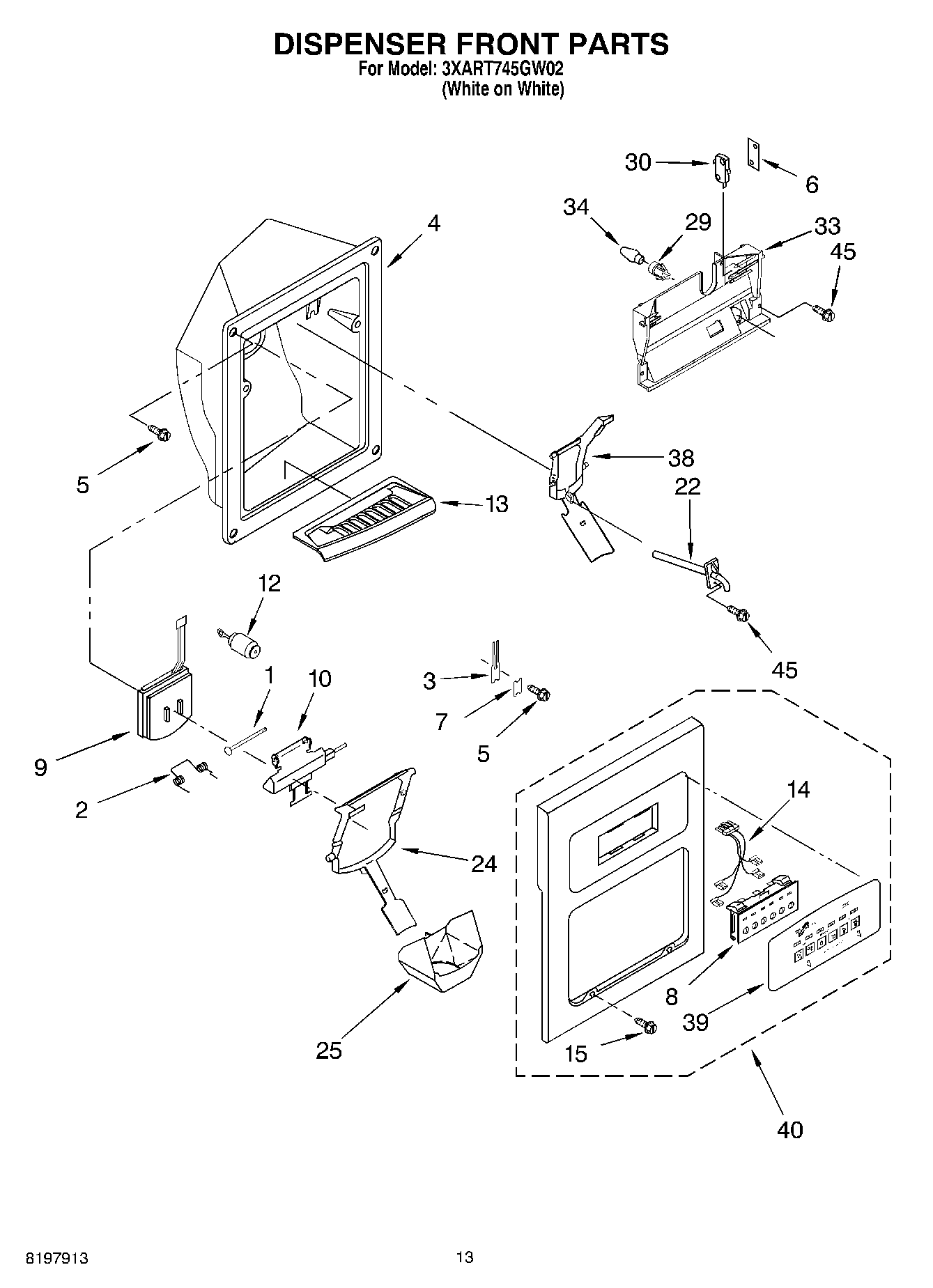

3XART745GW02 08 – DISPENSER FRONT

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing Dispenser (Not A Servicable Item)
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	Switch Assembly (Not Available Order No.40)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	Delay Mechanism
13	Grille, Overflow (White)
14	2311650 Whirlpool Refrigerator Wire Harness
15	WP3400065 Whirlpool Refrigerator Screw
22	WP4388152 Whirlpool Refrigerator Fitting
24	WP2203562W Whirlpool Refrigerator Dispenser Arm
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	2203561W Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover (Not Available Order No.40)
40	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
45	WP3400906 Whirlpool Refrigerator Screw
