3XEC5SHGKQ00 01 – CABINET, LITERATURE

3XEC5SHGKQ00 01 – CABINET, LITERATURE

Written by

in

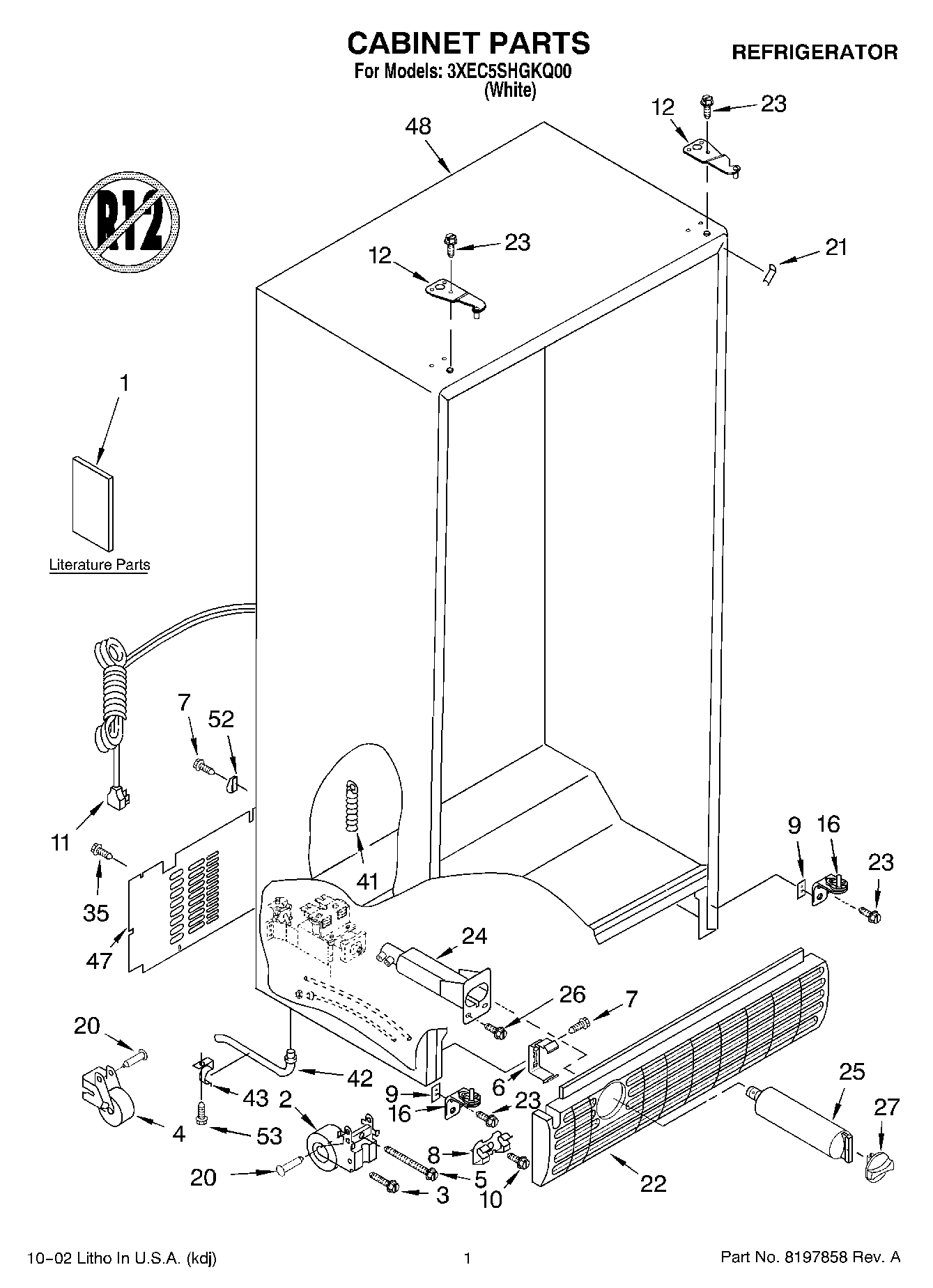

3XEC5SHGKQ00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Use & Care Guide)
1WPL LIT628371
1LITERATURE PARTS (Wiring Diagram)
2Front Roller (2)
3Bolt
4Roller (Rear) (2)
5Bolt
6Clip, Grille
8Clip
9WP2181911 Whirlpool Refrigerator Shim
10Screw
11Service Cord
122307007AP Whirlpool Refrigerator Hinge
122307008AP Whirlpool Refrigerator Hinge
16Hinge & Cam Assy.
20W11594405 Whirlpool Axle
21Filler, Wrapper (White)
22Grille (White)
23WP489497 Whirlpool Screw
24WP2199840 Whirlpool Refrigerator Housing
25EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
26WP489478 Whirlpool Refrigerator Screw
27WP2186494W Whirlpool Water Filter Cap
35WP489464 Whirlpool Refrigerator Screw
41W11566763 Whirlpool Fitting
42Extension Tube
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet (Not A Serviceable Part)
52489348 Whirlpool Refrigerator Tube Clamp
