3XEC5SHGKQ00 12 – ICEMAKER

3XEC5SHGKQ00 12 – ICEMAKER

Written by

in

3XEC5SHGKQ00 12 – ICEMAKER

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	4317943 Whirlpool Refrigerator Ice Maker Assembly
	212643 Whirlpool Refrigerator Permagum Sealer
	WP505587 Whirlpool Refrigerator Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Ice Contianer Assembly
	Ice Crusher Mechanism Assembly
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	WP542638 Whirlpool Refrigerator Grease
	WPL 876029
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WP503695 Whirlpool Refrigerator Sealer

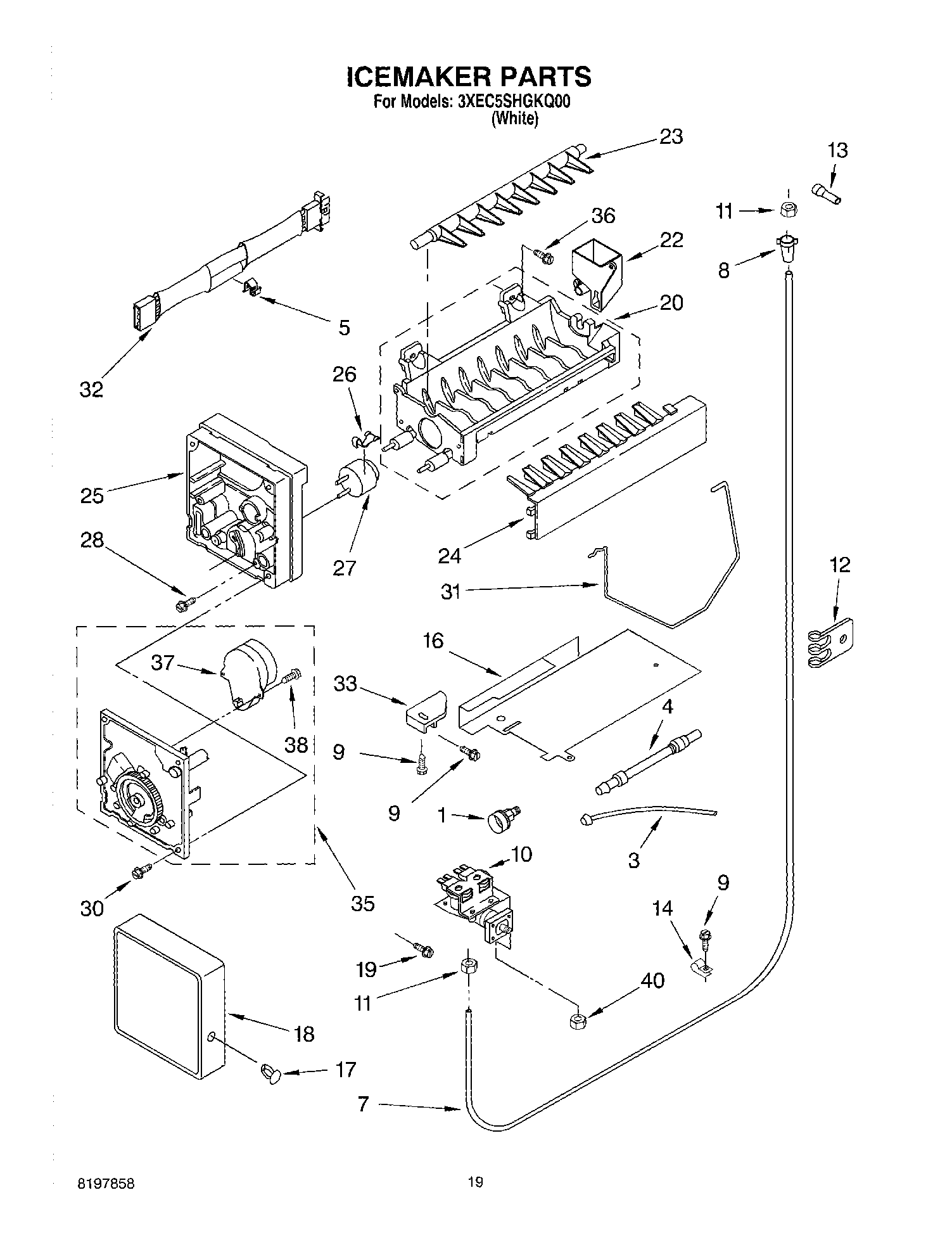

1	Connector, Water
3	W11496481 Whirlpool Refrigerator Water Tube
4	Tube, Filter Inlet
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	4387491 Whirlpool Refrigerator Insert
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
12	WP488366 Whirlpool Refrigerator Clamp
13	Tube, Water Inlet
14	WP488878 Whirlpool Refrigerator Tube Clamp
16	2256178 Whirlpool Shield Assembly
17	WP489115 Whirlpool Refrigerator Rivet
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10122523 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
35	W10190933 Whirlpool Refrigerator Motor Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
