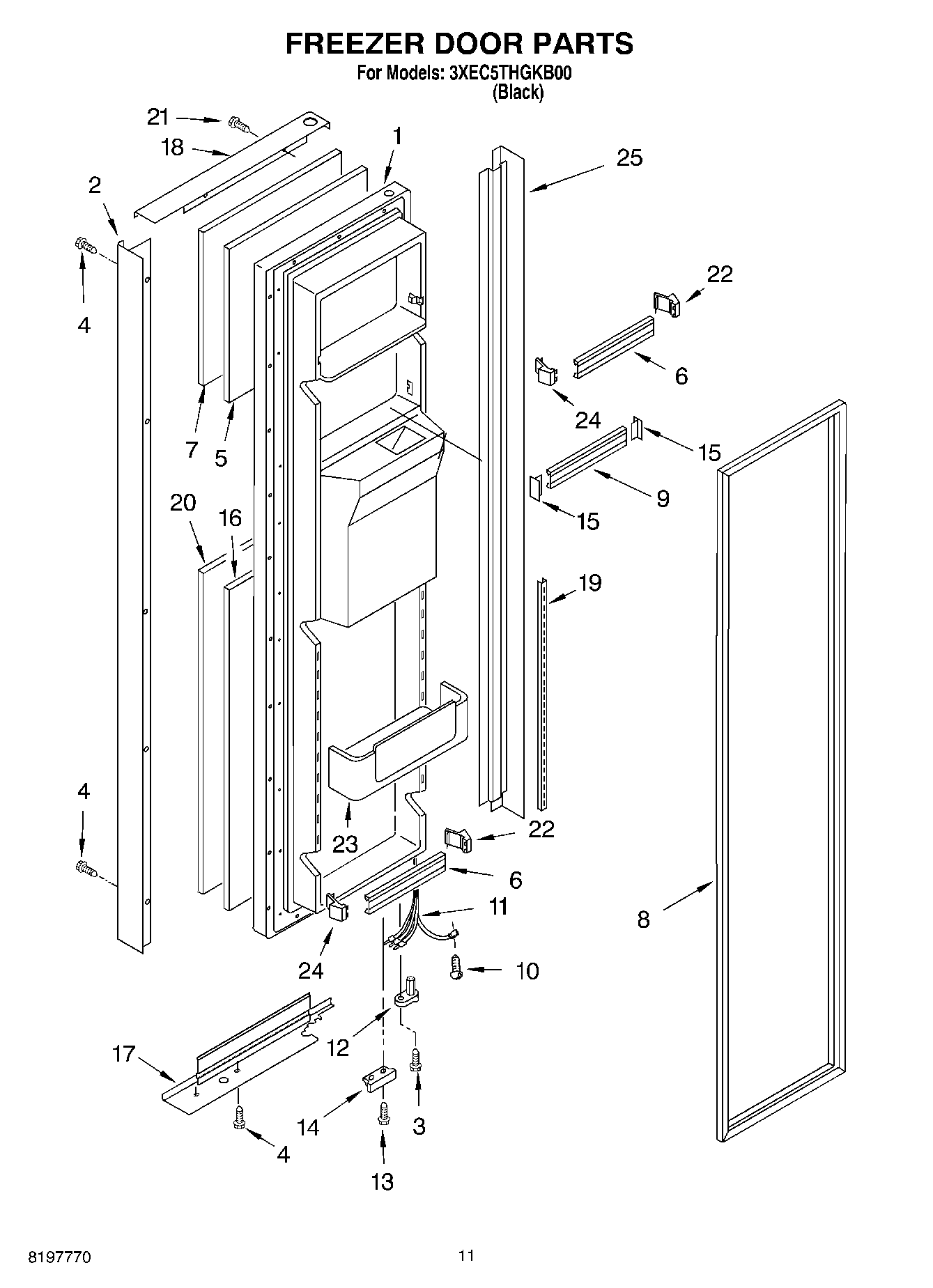

3XEC5THGKB00 07 – FREEZER DOORadmin2025-04-26T12:28:29+00:003XEC5THGKB00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black) |
| 2 | Handle (Stainless Steel) |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 4 | WP3196557 Whirlpool Screw |
| 5 | Filler, Panel (Upper) |
| 6 | Trim, Door Shelf |
| 7 | Panel, Top |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Trim, Door Shelf |
| 10 | WP489128 Whirlpool Refrigerator Screw |
| 11 | Wiring Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 16 | Filler, Panel (Lower) |
| 17 | Trim, Door-Bottom (Stainless Steel) |
| 18 | Trim, Door-Top (Stainless Steel) |
| 19 | Ladder, Shelf Assembly (2) |
| 20 | Panel, Bottom |
| 21 | Screw |
| 22 | ENDCAP |
| 23 | Bin, Door (2) |
| 24 | WP2195917K Whirlpool Refrigerator Endcap |
| 25 | Trim, Hinge-Side (Stainless Steel) |
