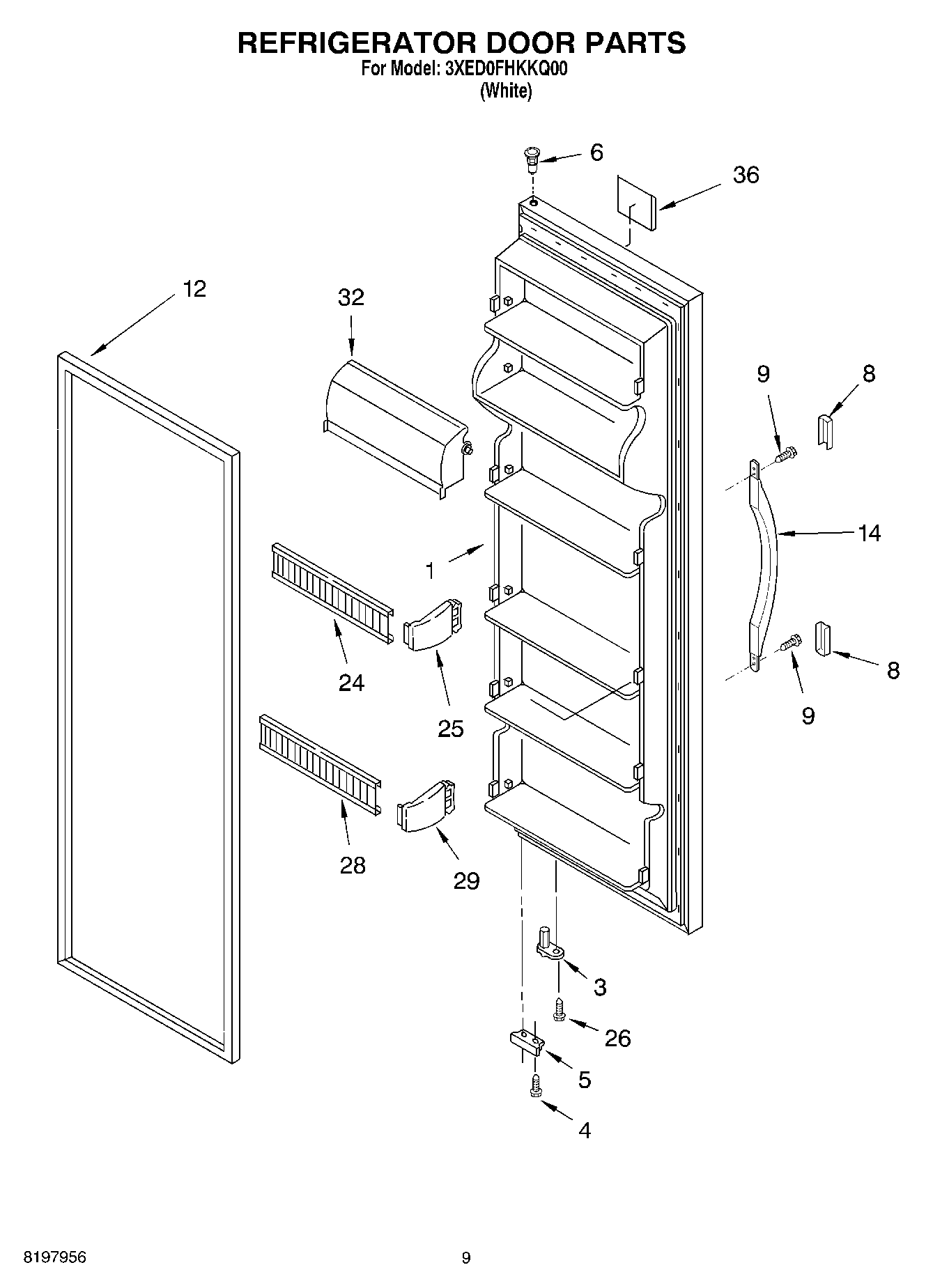

3XED0FHKKQ00 06 – REFRIGERATOR DOOR

3XED0FHKKQ00 06 – REFRIGERATOR DOOR

Written by

in

3XED0FHKKQ00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5WP2206629B Whirlpool Refrigerator Bracket
6WP2182181 Whirlpool Refrigerator Thimble
8WP2193353W Whirlpool Refrigerator Trim Handle
9WP489491 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Handle, Center (White)
24Trim, Door Shelf
25WP2195915 Whirlpool Door Shelf Support
26WP3400012 Whirlpool Refrigerator Screw
28WP2256010 Whirlpool Door Shelf Trim
29ENDCAP
32WP2256101 Whirlpool Dairy Door
36Nameplate
