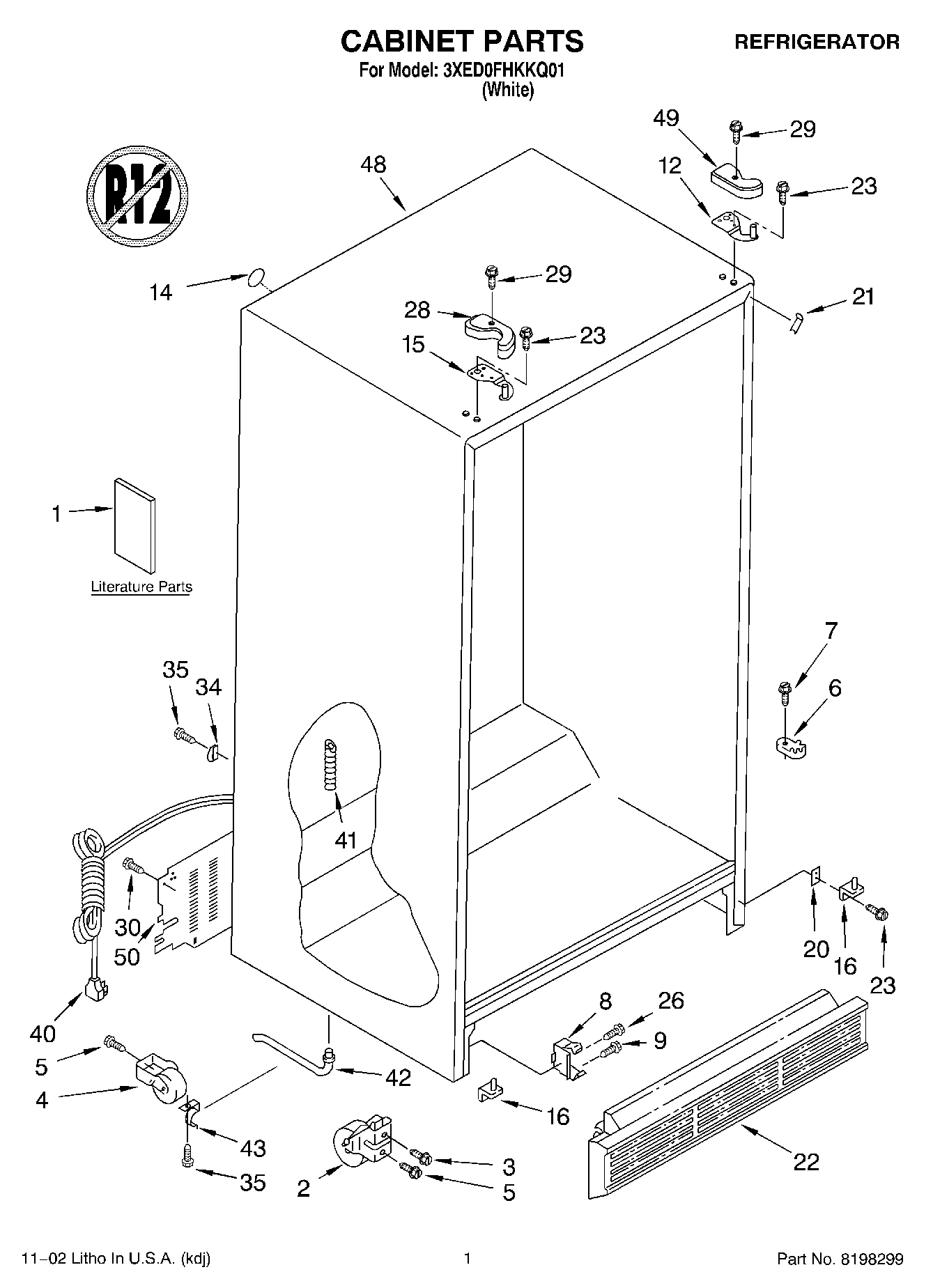

3XED0FHKKQ01 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Label
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP489128 Whirlpool Refrigerator Screw
12	WP2203771 Whirlpool Refrigerator Door Hinge
14	2223173 Whirlpool Refrigerator Tube Plug
15	WP2203770 Whirlpool Refrigerator Door Hinge
16	8201707 Whirlpool Door Hinge
20	WP2209697 Whirlpool Refrigerator Shim
21	Filler, Wrapper (White)
22	W10804014 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
26	WP489478 Whirlpool Refrigerator Screw
28	WP2203407W Whirlpool Refrigerator Cover
29	WP8281227 Whirlpool Screw
34	489348 Whirlpool Refrigerator Tube Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
50	Cover, Unit
