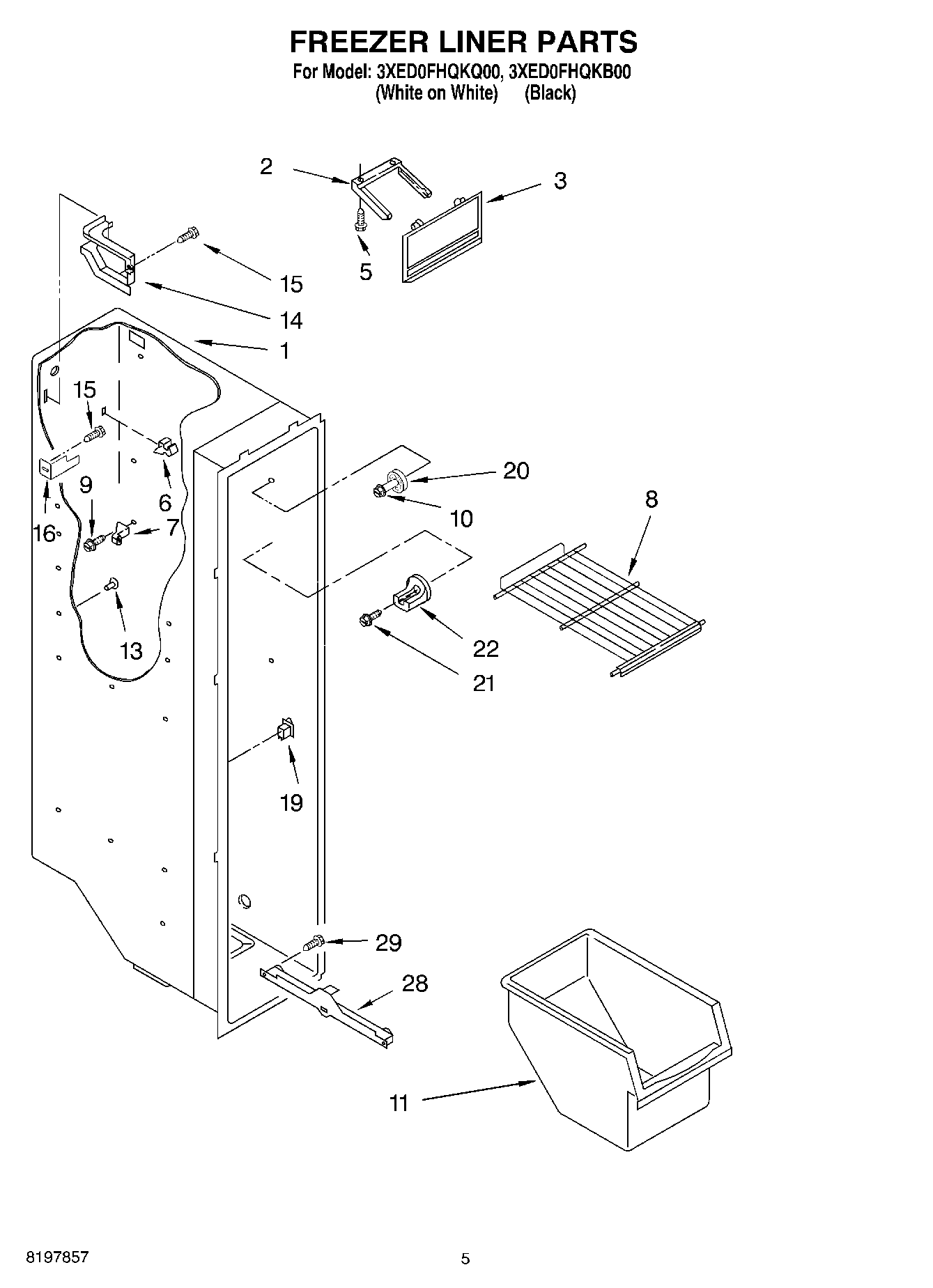

3XED0FHQKB00 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (1)
8	Shelf (2)
10	WP3400806 Whirlpool Screw
11	Bin, Freezer
13	Grommet
14	Cover, Wiring
15	SCREW
16	Bracket, Fill Tube
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP2196483 Whirlpool Refrigerator Shelf Stud
21	W10142289 Whirlpool Air Conditioner Screw
22	Stud, Rear
28	Slide, Basket (Left Side)
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
