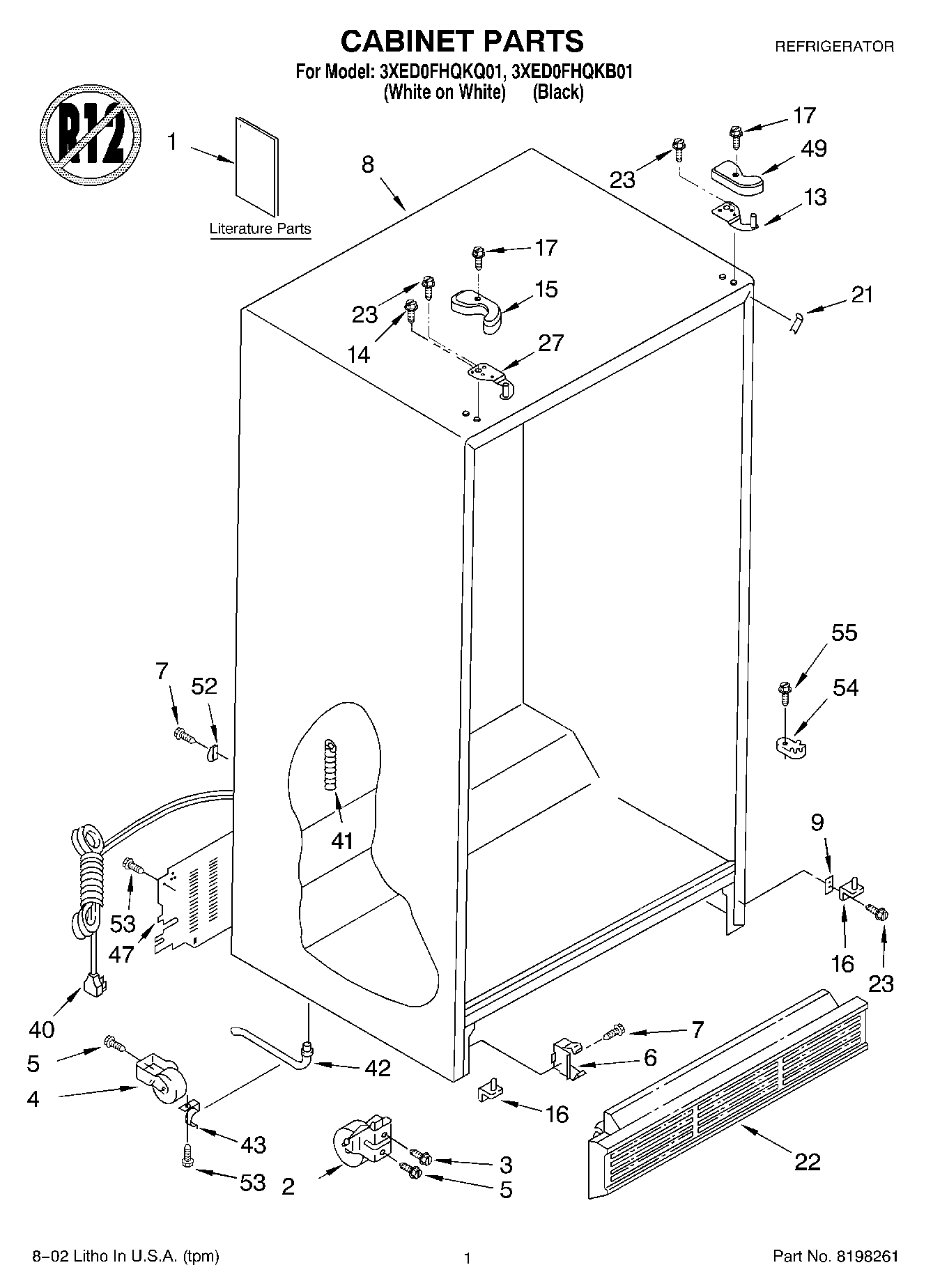

3XED0FHQKB01 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	LITERATURE PARTS (Use & Care Guide)
1	Energy Label
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	Cabinet (Not A Serviceable Part)
9	WP2209697 Whirlpool Refrigerator Shim
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP8281227 Whirlpool Screw
21	Filler, Wrapper (White)
21	Filler, Wrapper (Black)
22	W10804014 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
27	WP2203770 Whirlpool Refrigerator Door Hinge
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
49	WP2203408W Whirlpool Refrigerator Cover
49	WP2203408B Whirlpool Refrigerator Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
