3XED0FHQKQ01 10 – UNIT, OPTIONAL

3XED0FHQKQ01 10 – UNIT, OPTIONAL

Written by

in

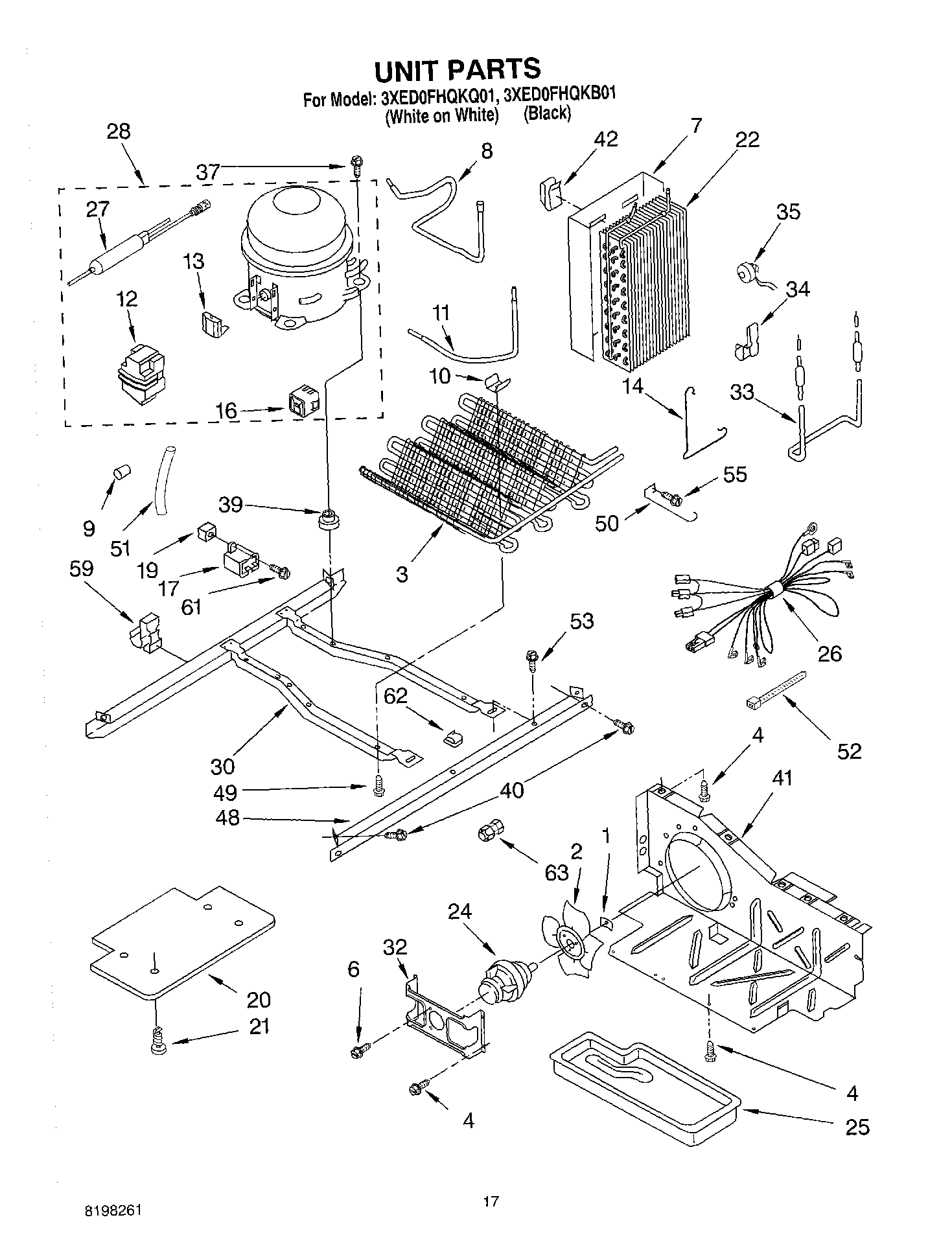

3XED0FHQKQ01 10 – UNIT, OPTIONAL

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
6681390 Whirlpool Refrigerator Screw
7Heat Shield
82205764 Whirlpool Refrigerator Tube
9WP2158826 Whirlpool Refrigerator Dampener
10W10683556 Whirlpool Refrigerator Clip
11Tube, Condenser to Heat Loop
12WP61002138 Whirlpool Refrigerator Terminal Cover
134388786 Whirlpool Refrigerator Overload
14Clamp
16Start Device, Combination (Start Relay and Overload) For Production Compressor Only
17WP2201147 Whirlpool Refrigerator Capacitor
19Screw Grommet
20Cover, Unit Compartment
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
248201703 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27W10843121 Whirlpool Refrigerator Tube
28W10183407 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
30Unit Mounting Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2313330 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37SCREW
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
61W11693756 Whirlpool Screw Assembly
62Clip, Tube (3)
63WP4373559 Whirlpool Fitting
63350930 Whirlpool White Spray Paint
63Ice Crusher Mechanism Assembly
63Ice Container Assembly
63VALVE, ACCESS (1/2“)
63WP503695 Whirlpool Refrigerator Sealer
63876370 Whirlpool Refrigerator Insulation
63833938 Whirlpool Refrigerator Terminal
63606755 Whirlpool Refrigerator Bag
63511873 Whirlpool Refrigerator Paint
63350942 Whirlpool Spray Paint
63212643 Whirlpool Refrigerator Permagum Sealer
63VALVE, ACCESS (5/8“)
63Almond (Uncut)
63WP72107 Whirlpool Touchup
63799344 Whirlpool Refrigerator Paint
6372017 Whirlpool Appliance Touch-Up Paint White
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63WP505587 Whirlpool Refrigerator Sealer
6372032 Whirlpool Touch Up Paint Black
63285006 Whirlpool Spray
63WPL 876029
63WPL 799833
63Enamel, Black (1 Qt. Uncut)
63CEMENT, ALUMILASTIC (1 1/4 OZ.)
63TAPE, VINYL (3/4 X 108“)
63WP978025 Whirlpool Refrigerator Valve
63Torx Key
63978030 Whirlpool Refrigerator Valve
63WP542638 Whirlpool Refrigerator Grease
63978027 Whirlpool Refrigerator Primary Valve
63350956 Whirlpool Spray Assembly
