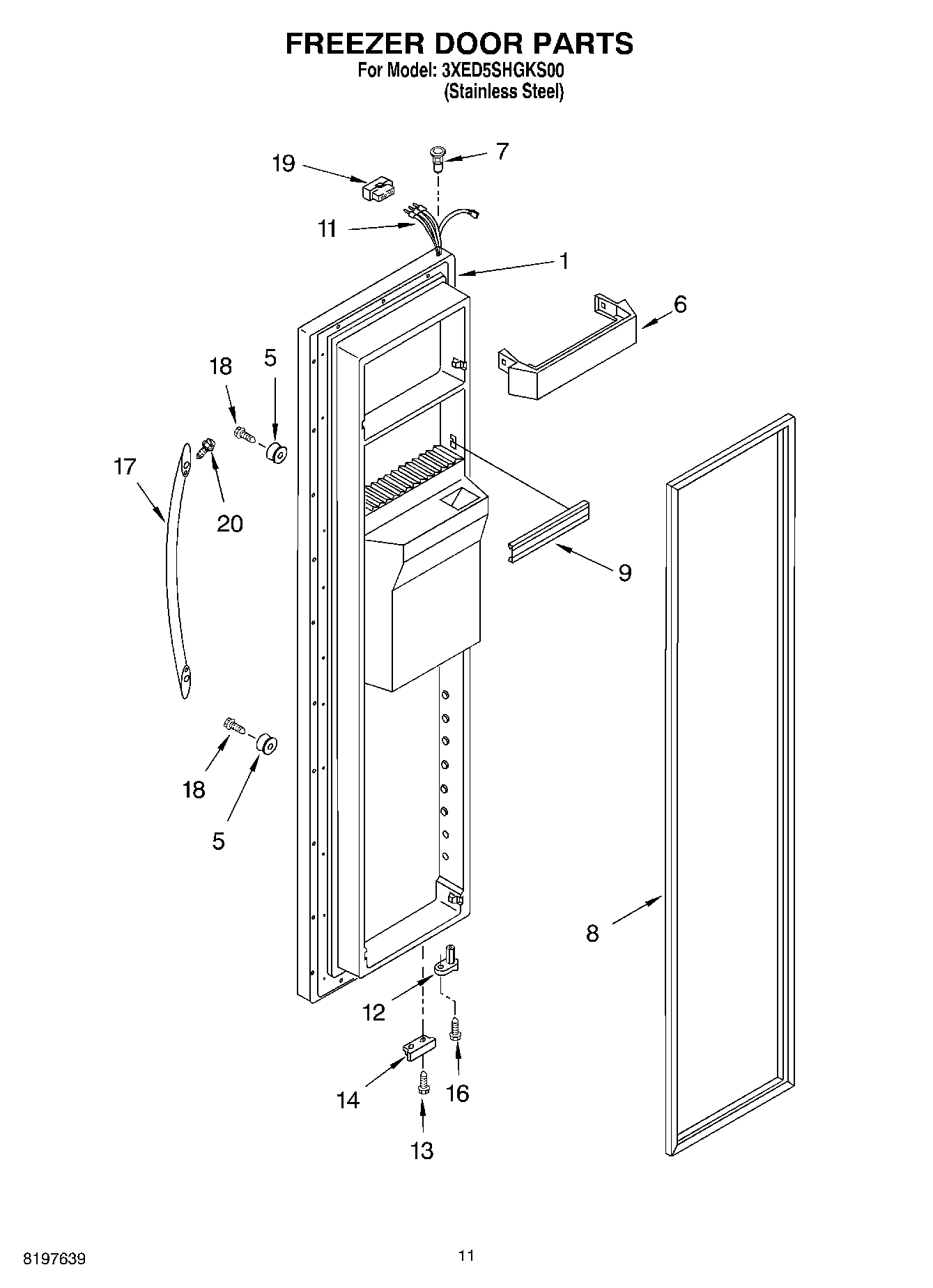

3XED5SHGKS00 07 – FREEZER DOOR

3XED5SHGKS00 07 – FREEZER DOOR

Written by

in

3XED5SHGKS00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts)
5Stud, Handle
6Trivet, Shelf (4)
7WP2182181 Whirlpool Refrigerator Thimble
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP3400012 Whirlpool Refrigerator Screw
17Handle (Stainless Steel)
18WP489463 Whirlpool Refrigerator Screw
19WP2154473 Whirlpool Refrigerator Connector
20Setscrew, 10-32
