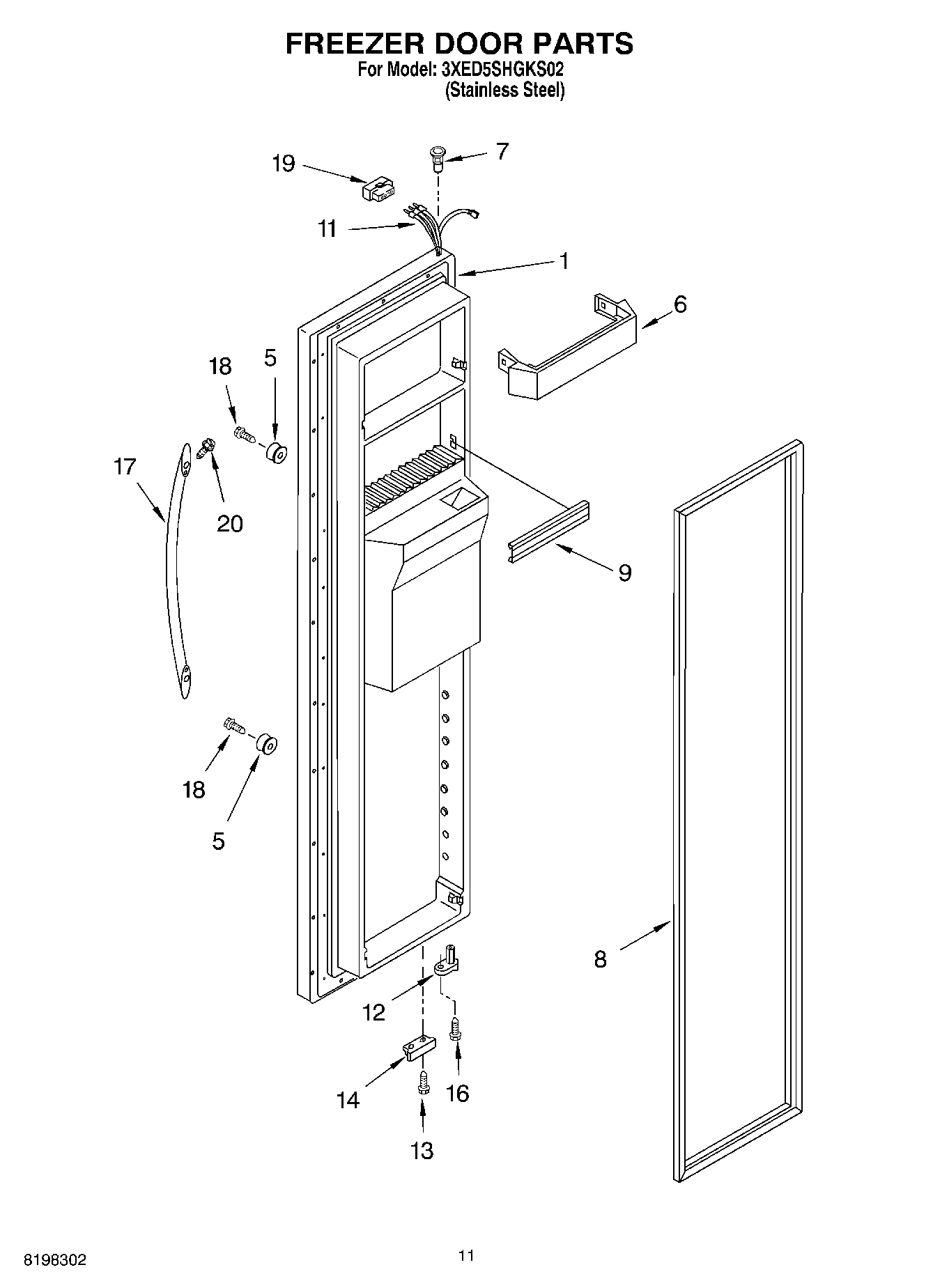

3XED5SHGKS02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts)
5	Stud, Handle
6	Trivet, Shelf (4)
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	WP3400012 Whirlpool Refrigerator Screw
17	Handle (Stainless Steel)
18	WP489463 Whirlpool Refrigerator Screw
19	Connector
20	Setscrew, 10-32
