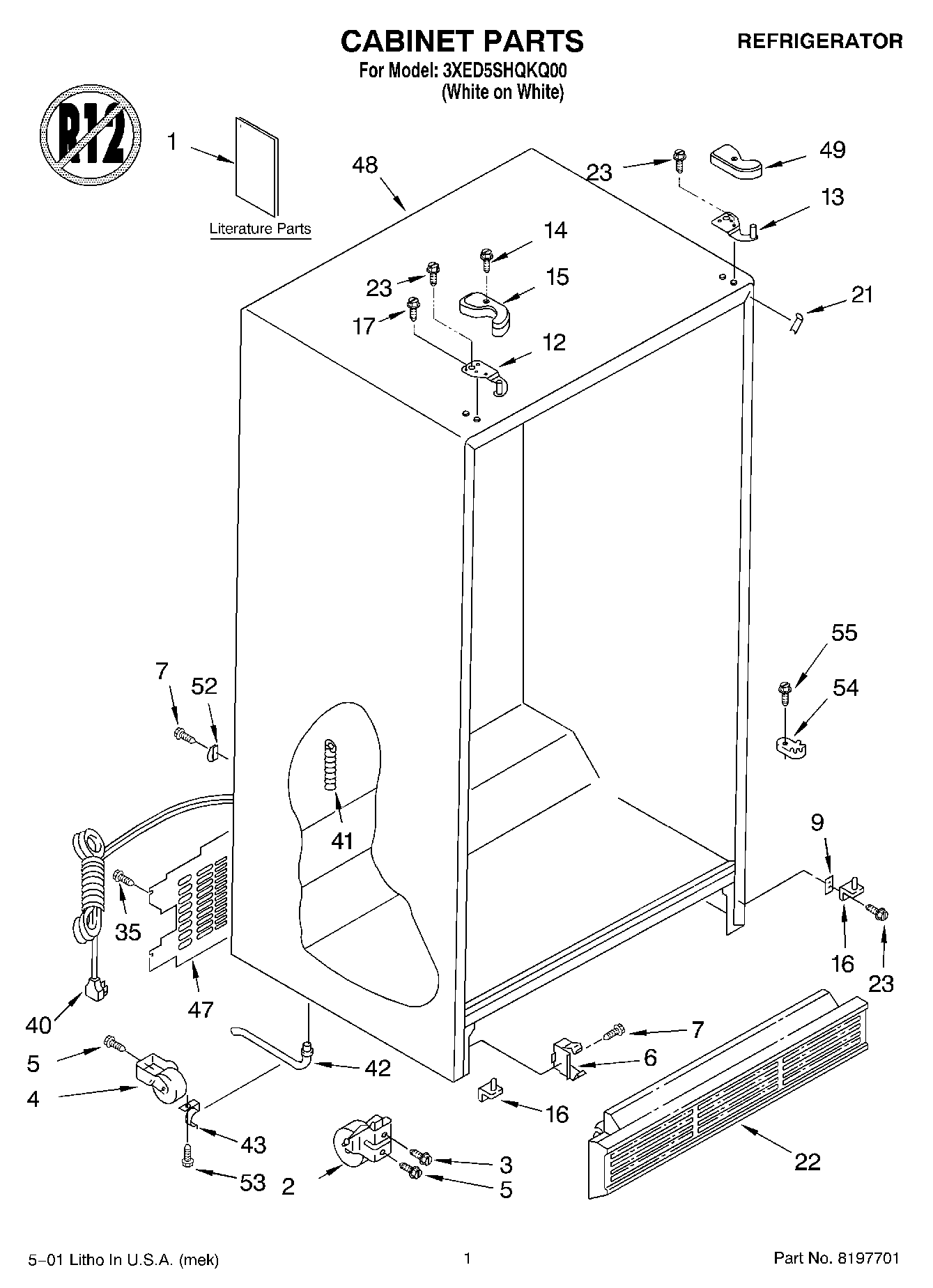

3XED5SHQKQ00 01 – CABINET, LITERATURE

3XED5SHQKQ00 01 – CABINET, LITERATURE

Written by

in

3XED5SHQKQ00 01 – CABINET, LITERATURE

Products

PositionProduct
1WPL LIT628371
1Energy Label
1LITERATURE PARTS (Wiring Diagram)
1LITERATURE PARTS (Use & Care Guide)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9WP2181911 Whirlpool Refrigerator Shim
12WP2203770 Whirlpool Refrigerator Door Hinge
13WP2203771 Whirlpool Refrigerator Door Hinge
14WP8281227 Whirlpool Screw
15WP2203407W Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
17WP489500 Whirlpool Refrigerator Screw
21Filler, Wrapper (White)
22WPW10283946 Whirlpool Refrigerator Grille
23WP489497 Whirlpool Screw
35WP489464 Whirlpool Refrigerator Screw
40Service Cord
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet (Not A Serviceable Part)
49WP2203408W Whirlpool Refrigerator Cover
52489348 Whirlpool Refrigerator Tube Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489483 Whirlpool Screw
