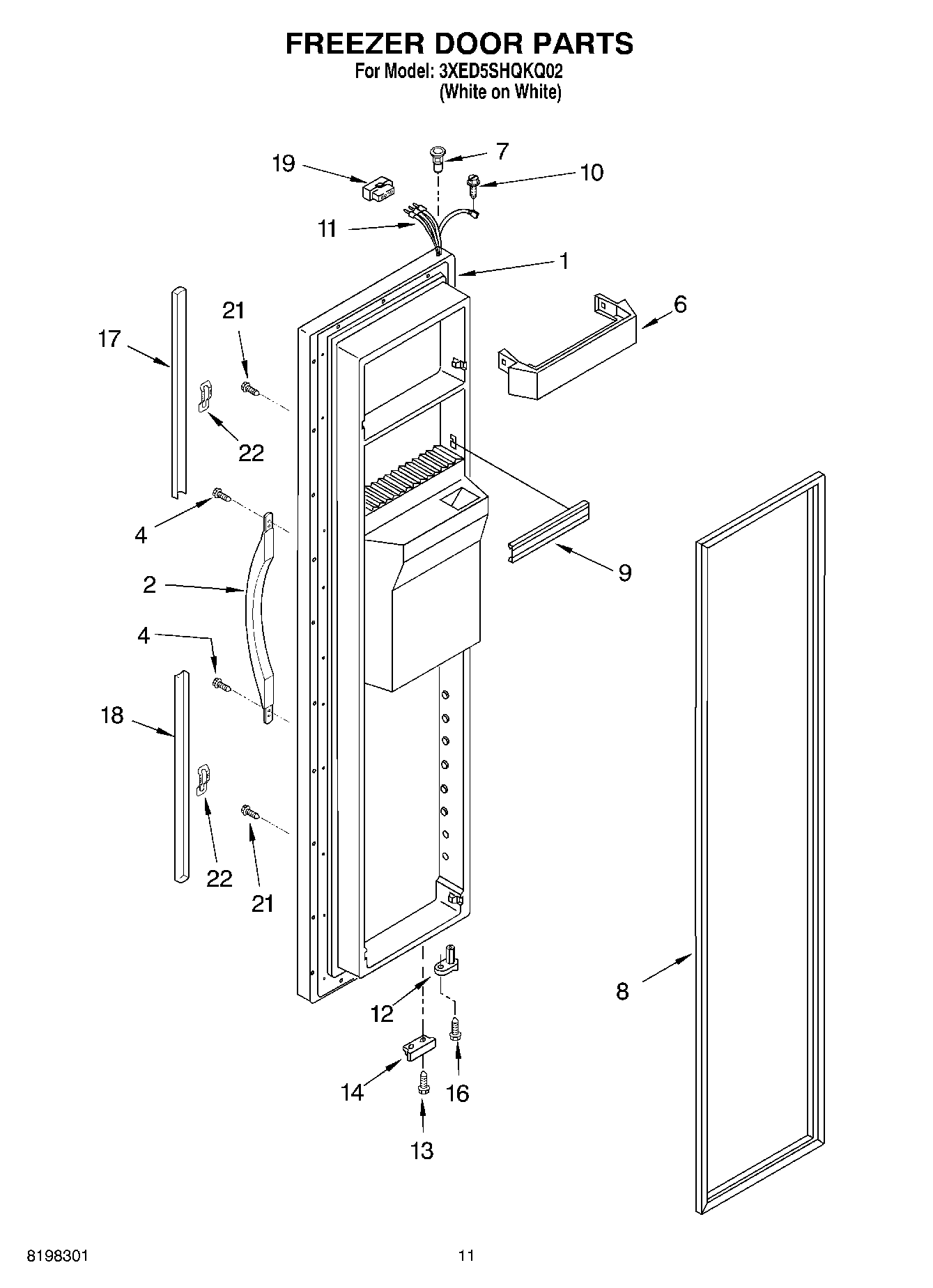

3XED5SHQKQ02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts)
2	Handle, Center (White)
4	WP489491 Whirlpool Refrigerator Screw
6	Trivet, Shelf (4)
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400906 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	WP3400012 Whirlpool Refrigerator Screw
17	WP2194973W Whirlpool Door Trim
18	Extension, Bottom (White)
19	Connector
21	WP3400852 Whirlpool Refrigerator Screw
22	WP2195327 Whirlpool Refrigerator Clip
