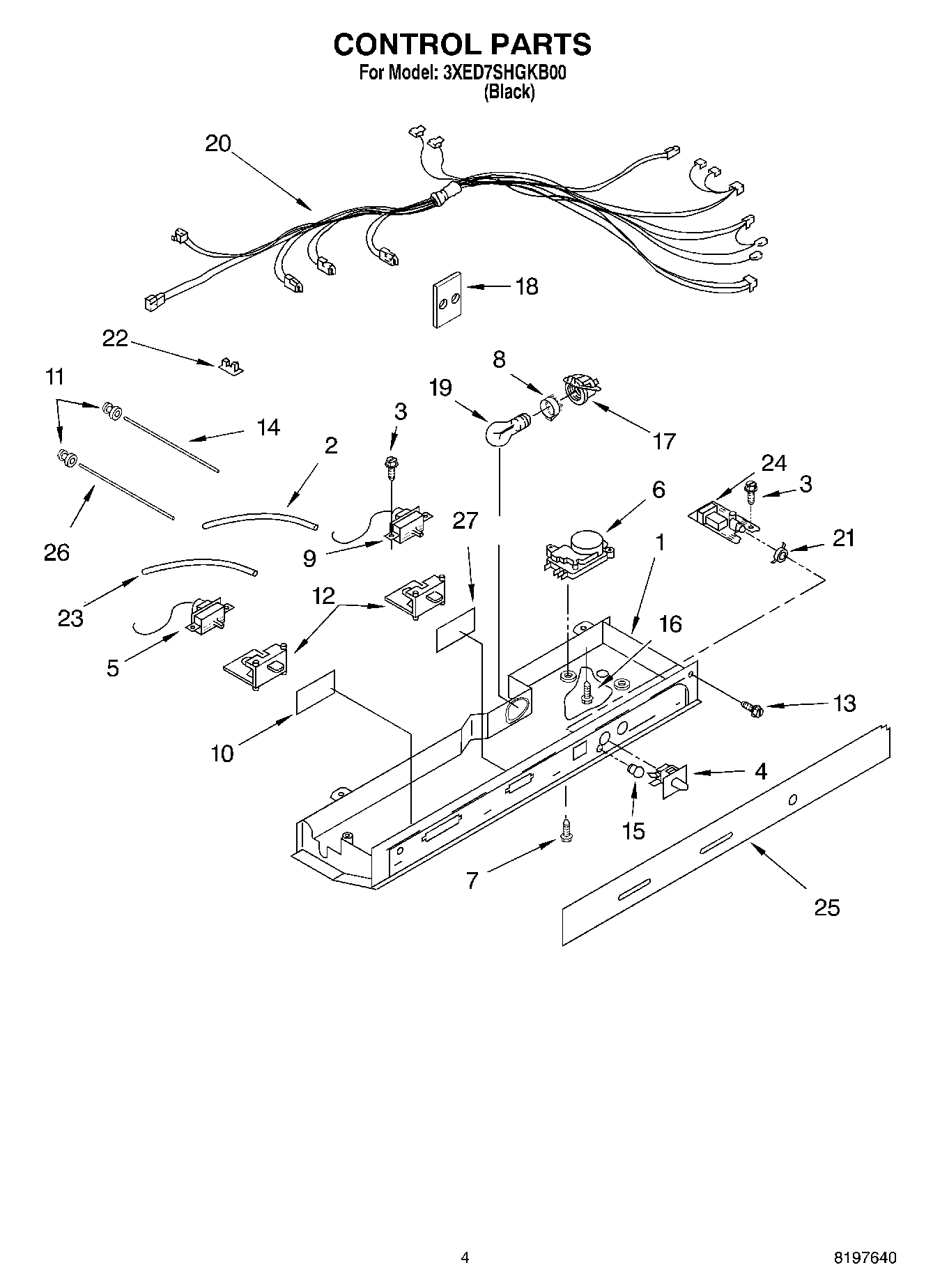

3XED7SHGKB00 03 – CONTROLadmin2025-04-26T11:38:39+00:003XED7SHGKB00 03 – CONTROL ProductsPositionProduct12200135 Whirlpool Refrigerator Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5Thermostat (FC)6WP2188379 Whirlpool Refrigerator Defrost Timer7489392 Whirlpool Refrigerator Screw8WP2175210 Whirlpool Refrigerator Shroud9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic15COVER, LIGHT LENS16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19WP67002552 Whirlpool Refrigerator Light Bulb20Control Box Harness21Retainer, Light Lens22CLIP, WIRING24P.C. Board Filter Indicator25Escutcheon, Control Box26Light Bar (FC)27Window
