3XES0FHGKS01 05 – REFRIGERATOR DOOR

3XES0FHGKS01 05 – REFRIGERATOR DOOR

Written by

in

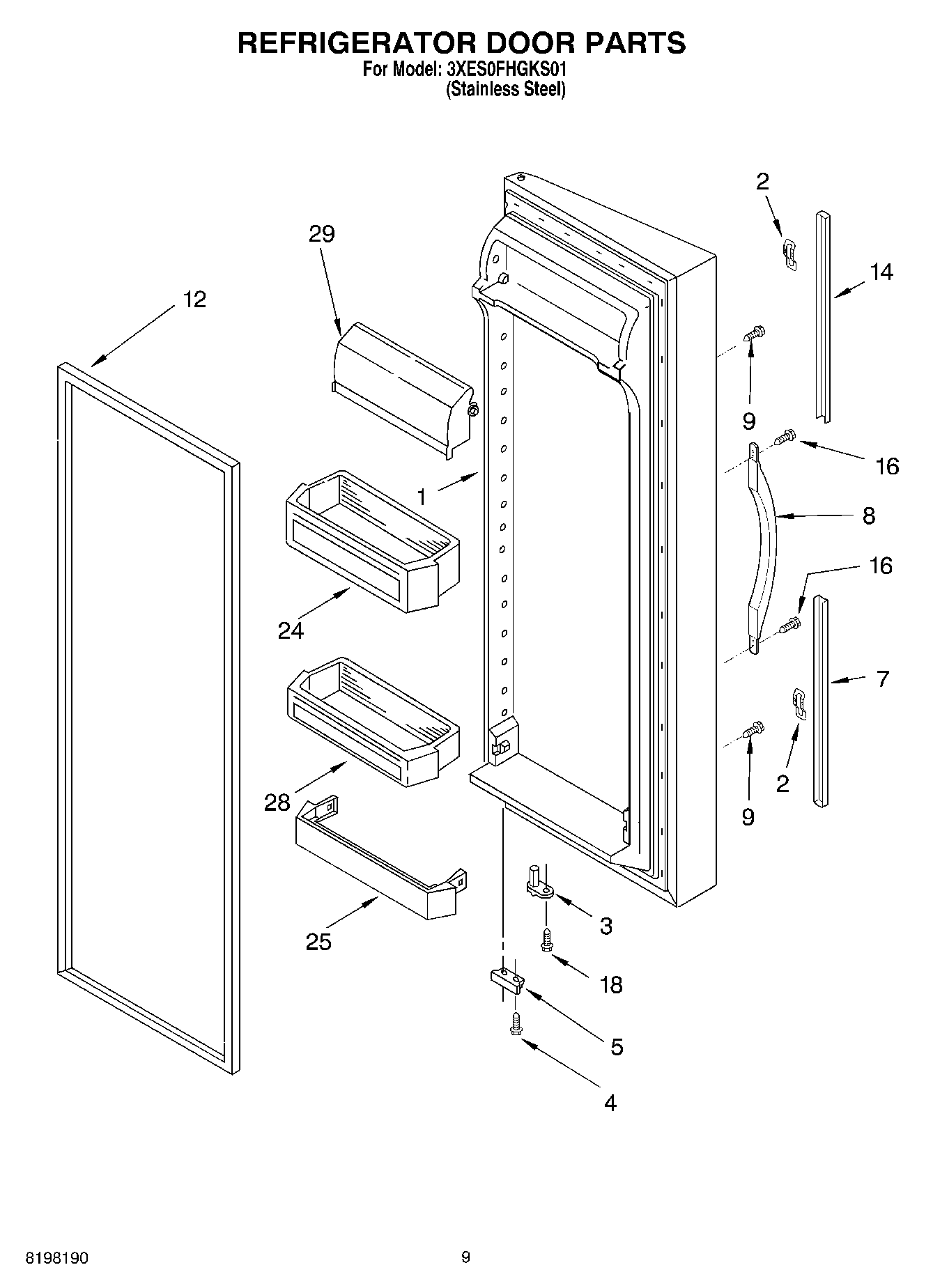

3XES0FHGKS01 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Stainless)
2WP2195327 Whirlpool Refrigerator Clip
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop
7Trim, Door-Bottom (Black)
8WP2217185B Whirlpool Refrigerator Handle
9WP3400852 Whirlpool Refrigerator Screw
122159081 Whirlpool Refrigerator Door Gasket
14Trim, Door-Top (Black)
16WP489491 Whirlpool Refrigerator Screw
18WP3400012 Whirlpool Refrigerator Screw
24WP2203828 Whirlpool Door Shelf Bin
25WP2156022 Whirlpool Refrigerator Door Trim
28Door Bin
29WP2256101 Whirlpool Dairy Door
