3XES0FHGKS01 06 – FREEZER DOOR

3XES0FHGKS01 06 – FREEZER DOOR

Written by

in

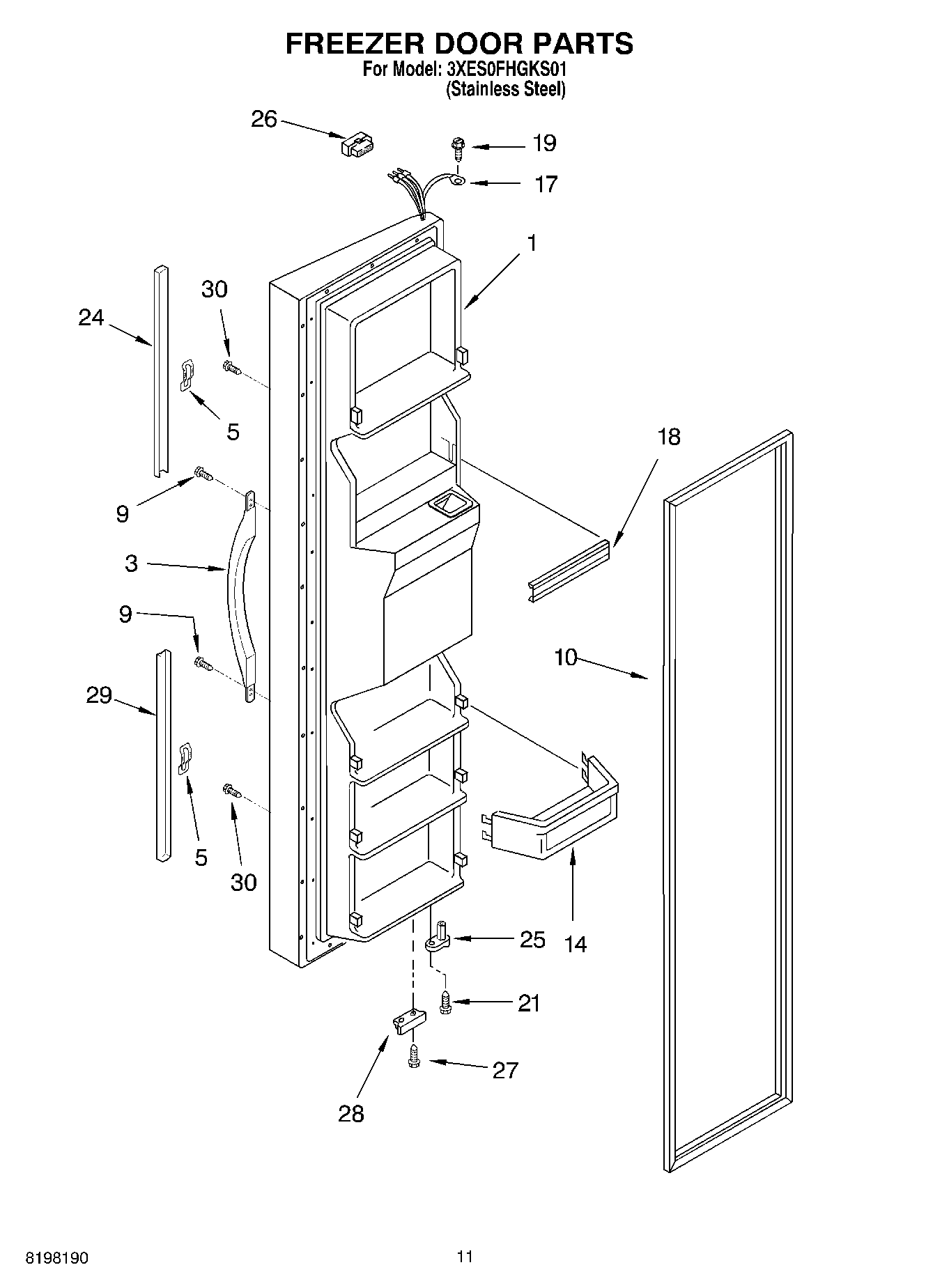

3XES0FHGKS01 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door
3WP2217185B Whirlpool Refrigerator Handle
5WP2195327 Whirlpool Refrigerator Clip
9WP489491 Whirlpool Refrigerator Screw
102159080 Whirlpool Refrigerator Door Gasket
14WP2156021 Whirlpool Refrigerator Door Trim
172187272 Whirlpool Refrigerator Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
24Trim, Door-Top (Black)
25WP2182179 Whirlpool Cam Closer
26Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop
29Trim, Door-Bottom (Black)
30WP3400852 Whirlpool Refrigerator Screw
