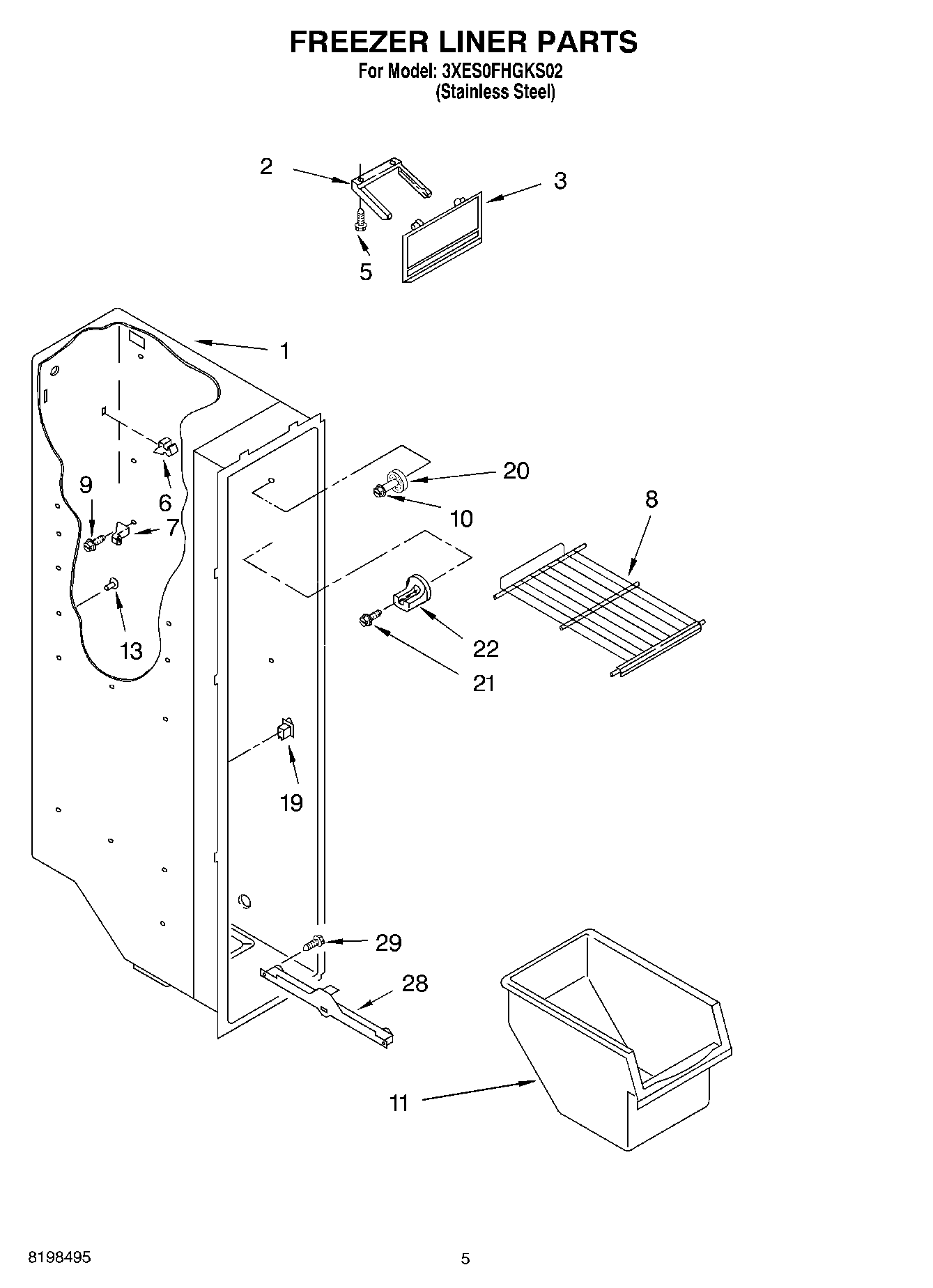

3XES0FHGKS02 03 – FREEZER LINER PARTS

3XES0FHGKS02 03 – FREEZER LINER PARTS

Written by

in

3XES0FHGKS02 03 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8Shelf (1)
10WP3400806 Whirlpool Screw
11Bin, Freezer
13Grommet
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
21W10142289 Whirlpool Air Conditioner Screw
22Stud, Rear
28Slide, Basket (Left Side)
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
