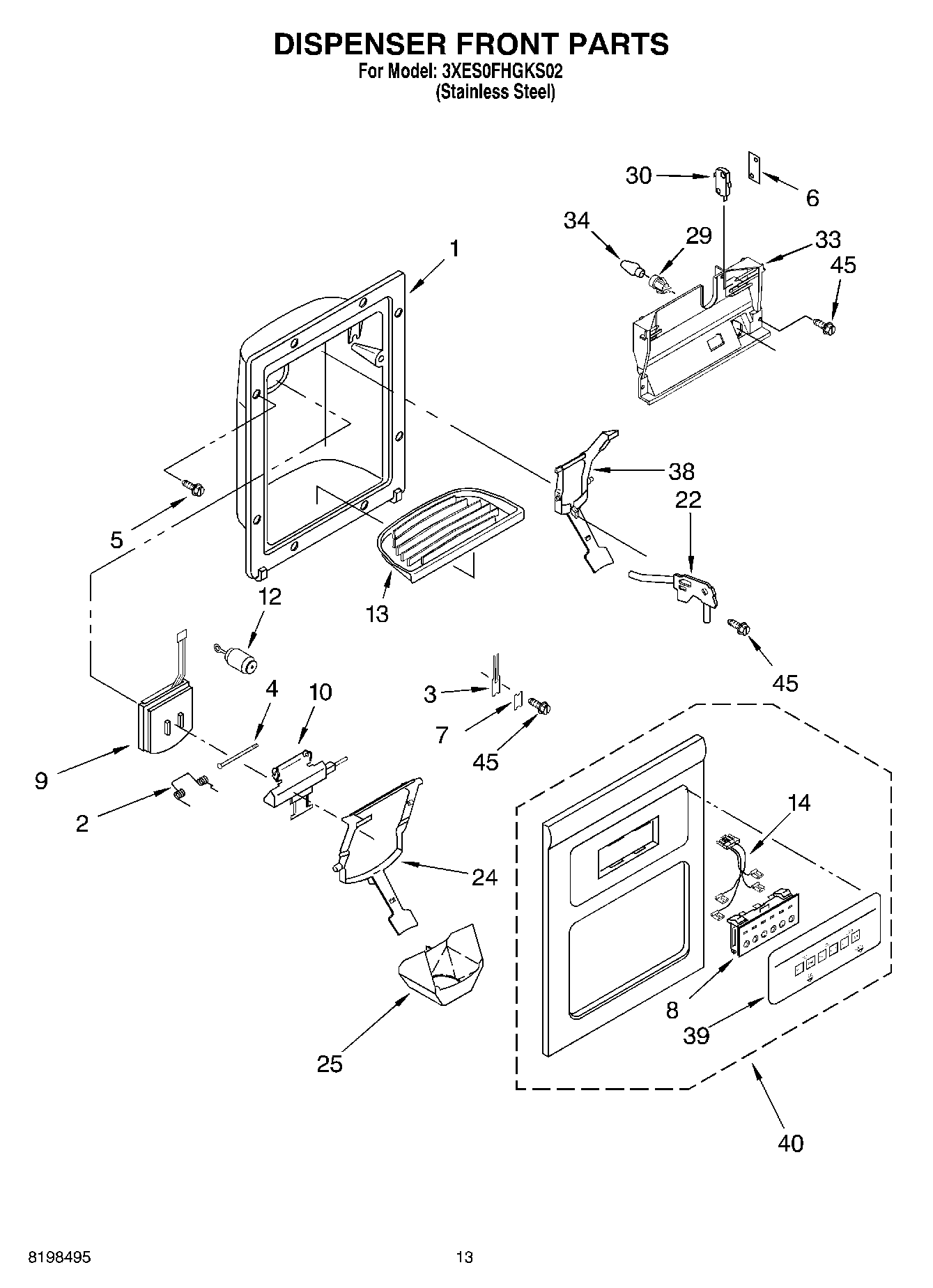

3XES0FHGKS02 07 – DISPENSER FRONT PARTSadmin2025-04-26T12:26:06+00:003XES0FHGKS02 07 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | Housing, Dispenser (Not Serviced) |
| 2 | WPW10224328 Whirlpool Refrigerator Spring |
| 3 | WP2194719 Whirlpool Refrigerator Clip |
| 4 | WP2196195 Whirlpool Refrigerator Door Pin |
| 5 | WP3196175 Whirlpool Screw |
| 6 | Spacer, Switch (2) |
| 7 | WP2195051 Whirlpool Refrigerator Clip |
| 8 | Switch Assembly (Not Available, Order 40) |
| 9 | WP2180353 Whirlpool Dispenser Door |
| 10 | Door Mechanism Assembly |
| 12 | Delay Mechanism |
| 13 | Grille, Overflow (Black) |
| 14 | 2311650 Whirlpool Refrigerator Wire Harness |
| 22 | 8201537 Whirlpool Water Tubing Assembly |
| 24 | Lever, Ice Dispenser (Black) |
| 25 | WP2180224 Whirlpool Dispenser Funnel Guide |
| 29 | 2180200 Whirlpool Refrigerator Socket |
| 30 | WP2162361 Whirlpool Switch |
| 33 | WP2180226 Whirlpool Ice Dispenser Control Switch Bracket |
| 34 | Bulb, Light |
| 38 | 2203561B Whirlpool Refrigerator Dispenser Arm |
| 39 | Overlay, Front Cover (Not Available, Order 40) |
| 40 | Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black) |
| 45 | WP3400906 Whirlpool Refrigerator Screw |
