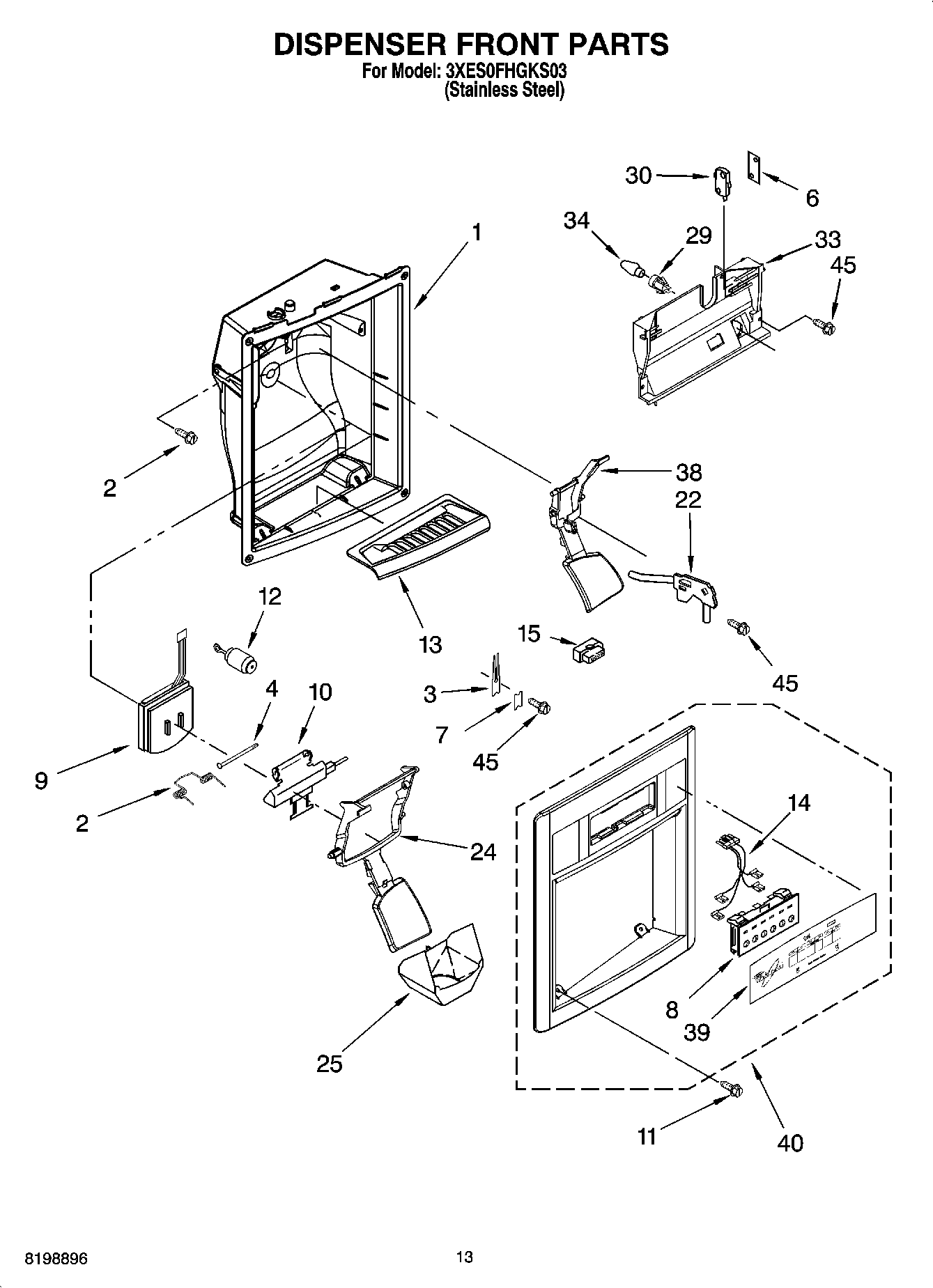

3XES0FHGKS03 07 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	WP2196195 Whirlpool Refrigerator Door Pin
5	WP3196557 Whirlpool Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	Switch Assembly (Not Available, Order 40)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
11	WP3400065 Whirlpool Refrigerator Screw
12	Delay Mechanism
13	Grille, Overflow (Black)
14	2311650 Whirlpool Refrigerator Wire Harness
15	Connector
22	8201537 Whirlpool Water Tubing Assembly
24	WP2255431B Whirlpool Refrigerator Dispenser Arm
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	WP2255432B Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover (Not Available, Order 40)
40	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
45	WP3400906 Whirlpool Refrigerator Screw
