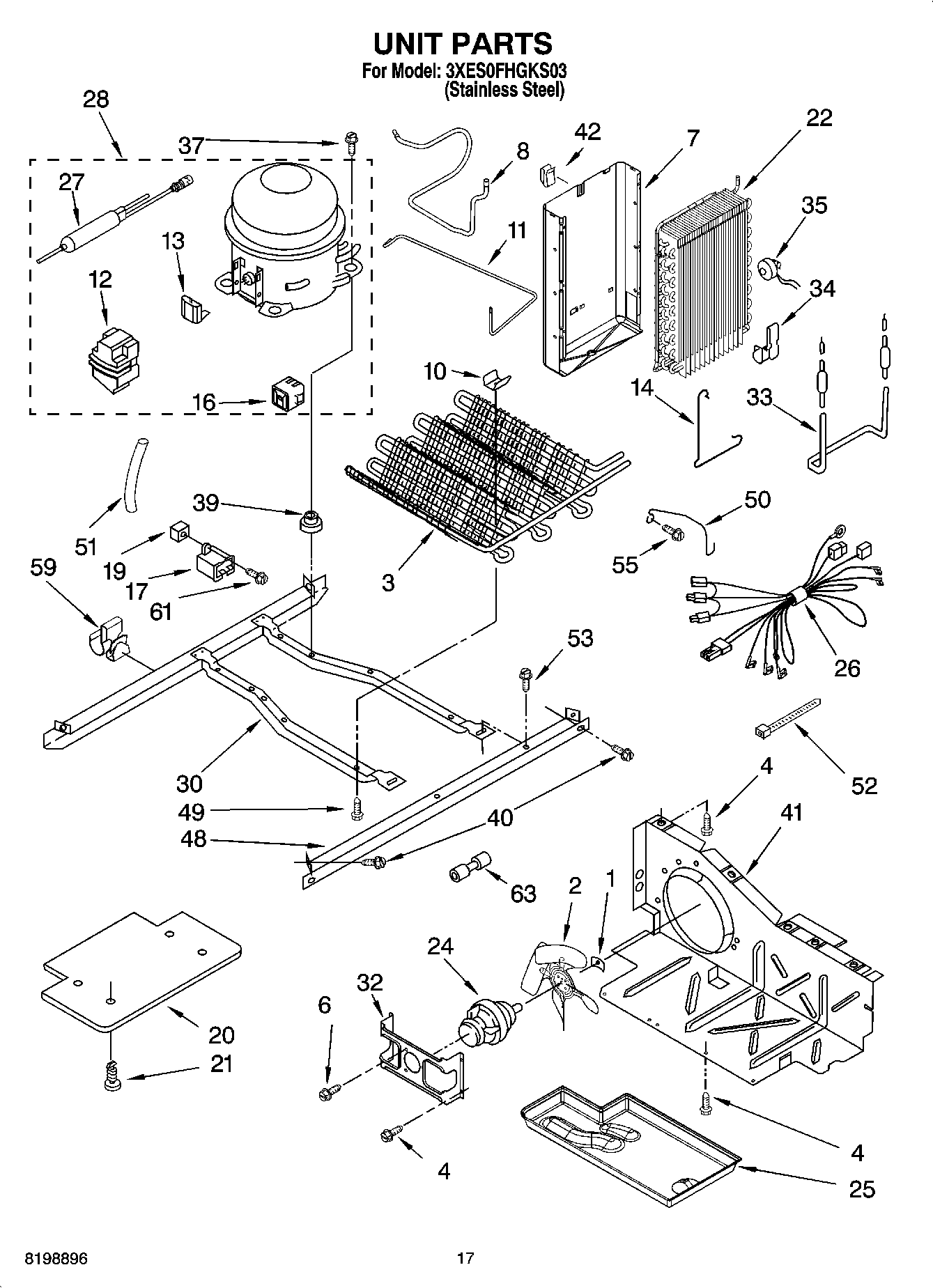

3XES0FHGKS03 10 – UNIT PARTS

3XES0FHGKS03 10 – UNIT PARTS

Written by

in

3XES0FHGKS03 10 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
6681390 Whirlpool Refrigerator Screw
7Heat Shield And Drain Pan
82205764 Whirlpool Refrigerator Tube
10W10683556 Whirlpool Refrigerator Clip
11Tube, Condenser to Heat Loop
12WP61002138 Whirlpool Refrigerator Terminal Cover
134388786 Whirlpool Refrigerator Overload
14Clamp
16Start Device, Combination (Start Relay and Overload) For Production Compressor Only
17WP2201147 Whirlpool Refrigerator Capacitor
19Screw Grommet
20Cover, Unit Compartment
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
248201703 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27W10843121 Whirlpool Refrigerator Tube
28W10183407 Whirlpool Refrigerator Compressor
30Unit Mounting Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2313330 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
61W11693756 Whirlpool Screw Assembly
63Following Parts Not Illustrated and Optional Parts Not Included
63VALVE, ACCESS (5/8“)
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63WP4373559 Whirlpool Fitting
63REFRIGERANT CHARGE 5.0 oz. (R-134A)
