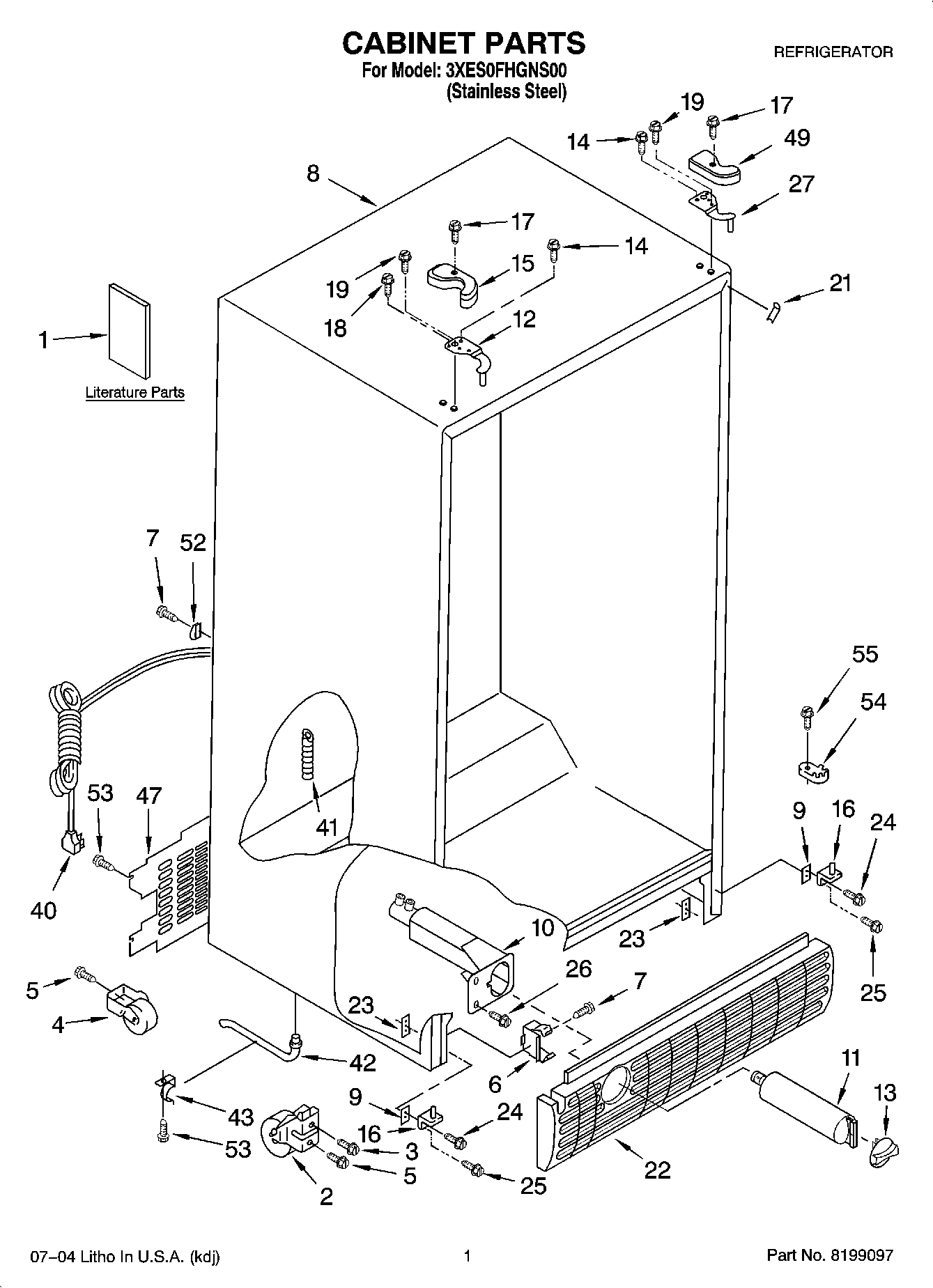

3XES0FHGNS00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Use & Care Guide
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	Cabinet (Not A Serviceable Part)
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2186443 Whirlpool Water Filter Housing
11	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2186494B Whirlpool Refrigerator Filter Cap
14	W10853301 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP8281227 Whirlpool Screw
18	WP489128 Whirlpool Refrigerator Screw
21	Filler, Wrapper (Black)
22	W10802713 Whirlpool Refrigerator Grille
23	WP2304249 Whirlpool Refrigerator Plate
24	WP489497 Whirlpool Screw
25	W10856122 Whirlpool Refrigerator Screw
26	WP489500 Whirlpool Refrigerator Screw
27	WP2203771 Whirlpool Refrigerator Door Hinge
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
49	WP2203408B Whirlpool Refrigerator Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
