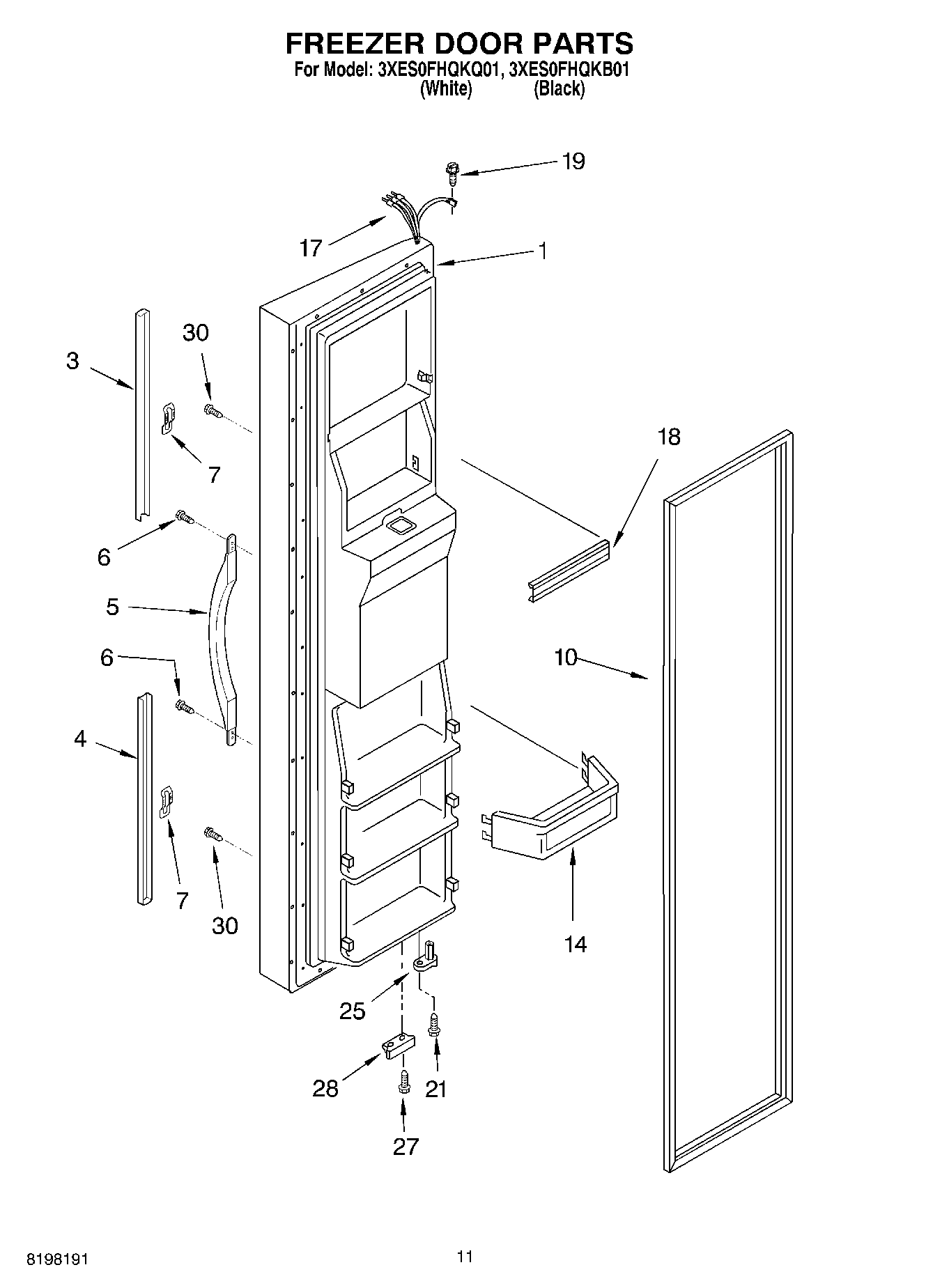

3XES0FHQKB01 06 – FREEZER DOOR

3XES0FHQKB01 06 – FREEZER DOOR

Written by

in

3XES0FHQKB01 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item 10) (White)
1Freezer Door (Includes Item 10) (Black)
3Trim, Door-Top (White)
3Trim, Door-Top (Black)
4Trim, Door-Bottom (Black)
4Trim, Door-Bottom (White)
5Handle (White)
5WP2217185B Whirlpool Refrigerator Handle
6WP489491 Whirlpool Refrigerator Screw
7WP2195327 Whirlpool Refrigerator Clip
102159080 Whirlpool Refrigerator Door Gasket
102159072 Whirlpool Refrigerator FIP Gasket
14WP2156021 Whirlpool Refrigerator Door Trim
172311642 Whirlpool Refrigerator Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
27WP489483 Whirlpool Screw
28Bracket, Door Stop
28Bracket, Door Stop
30WP3400852 Whirlpool Refrigerator Screw
