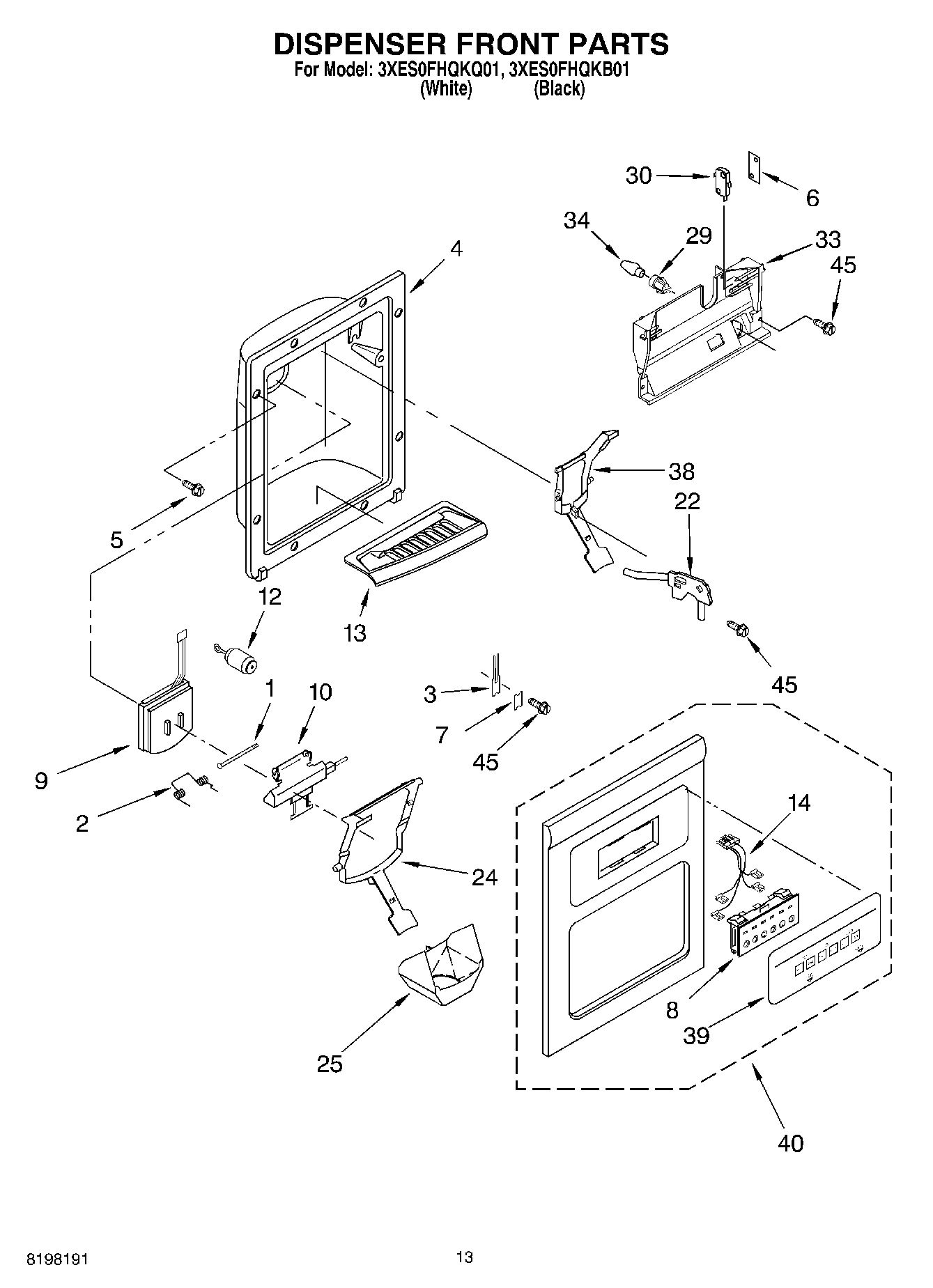

3XES0FHQKB01 07 – DISPENSER FRONT

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing, Dispenser (Not Available- See Freezer Door)
5	WP3196175 Whirlpool Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	Switch Assembly (Not Avaialble- Order No.40)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	Delay Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Black)
14	2311650 Whirlpool Refrigerator Wire Harness
22	8201537 Whirlpool Water Tubing Assembly
24	WP2203562W Whirlpool Refrigerator Dispenser Arm
24	Lever, Ice Dispenser (Black)
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	2203561B Whirlpool Refrigerator Dispenser Arm
38	2203561W Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover (Not Available Order No.40)
40	Front Cover Assembly (Includes Items 8, 14 & 39) (Black)
40	Front Cover Assembly (Includes Items 8, 14 & 39) (White)
45	WP3400906 Whirlpool Refrigerator Screw
