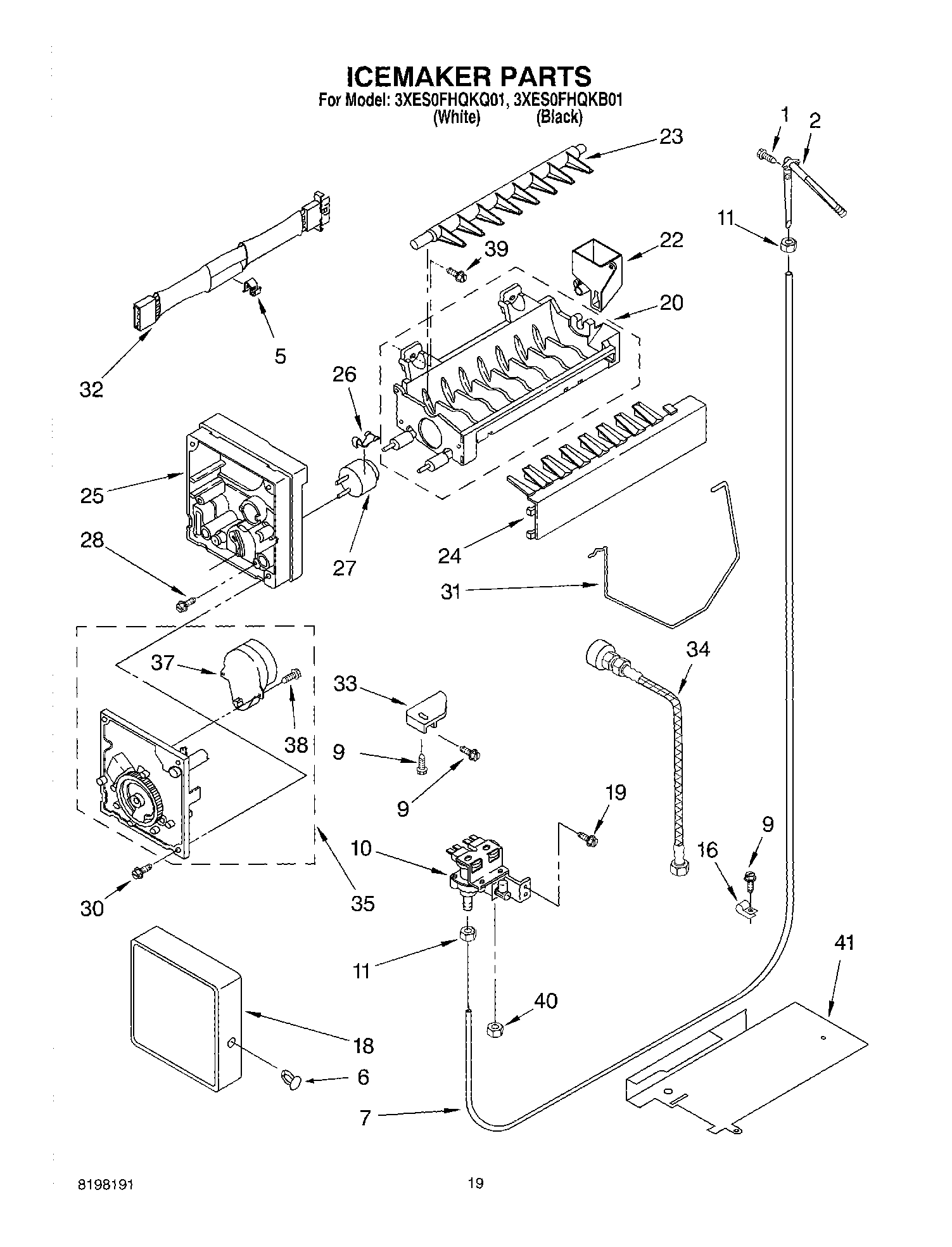

3XES0FHQKQ01 11 – ICEMAKER

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
5	WP628379 Whirlpool Refrigerator Clip
6	WP489115 Whirlpool Refrigerator Rivet
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10122523 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	European Water Connection Tube
35	W10190933 Whirlpool Refrigerator Motor Assembly
38	489136 Whirlpool Refrigerator Screw
39	WP488163 Whirlpool Refrigerator Screw
40	Nut, Compression
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	2256178 Whirlpool Shield Assembly
41	Ice Crusher Mechanism Assembly
41	Ice Container Assembly
41	WPL 876029
41	WPL 799833
41	511873 Whirlpool Refrigerator Paint
41	350942 Whirlpool Spray Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	350930 Whirlpool White Spray Paint
41	Almond (Uncut)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	606755 Whirlpool Refrigerator Bag
41	833938 Whirlpool Refrigerator Terminal
41	Enamel, Black (1 Qt. Uncut)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	TAPE, VINYL (3/4 X 108“)
41	Torx Key
41	WP542638 Whirlpool Refrigerator Grease
41	WP505587 Whirlpool Refrigerator Sealer
41	WP503695 Whirlpool Refrigerator Sealer
41	876370 Whirlpool Refrigerator Insulation
41	350956 Whirlpool Spray Assembly
