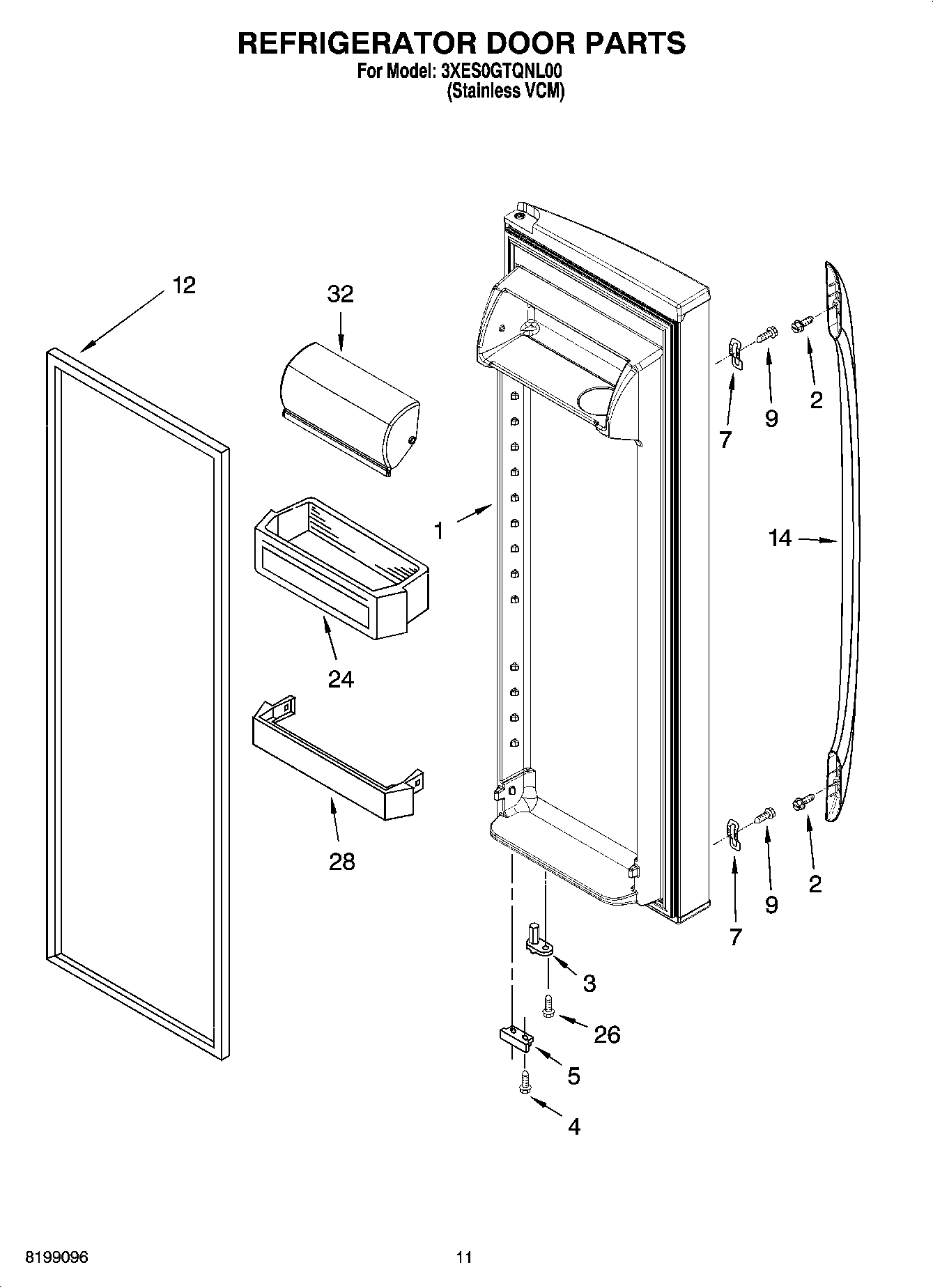

3XES0GTQNL00 07 – REFRIGERATOR DOOR PARTS

3XES0GTQNL00 07 – REFRIGERATOR DOOR PARTS

Written by

in

3XES0GTQNL00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door
2SCREW
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop
7WP2255411 Whirlpool Refrigerator Clip
9WP489491 Whirlpool Refrigerator Screw
122159081 Whirlpool Refrigerator Door Gasket
14Handle
24WP2187172 Whirlpool Refrigerator Door Shelf Bin
26WP3400012 Whirlpool Refrigerator Screw
28WP2177962K Whirlpool Refrigerator Door Trim
32WP2256101 Whirlpool Dairy Door
