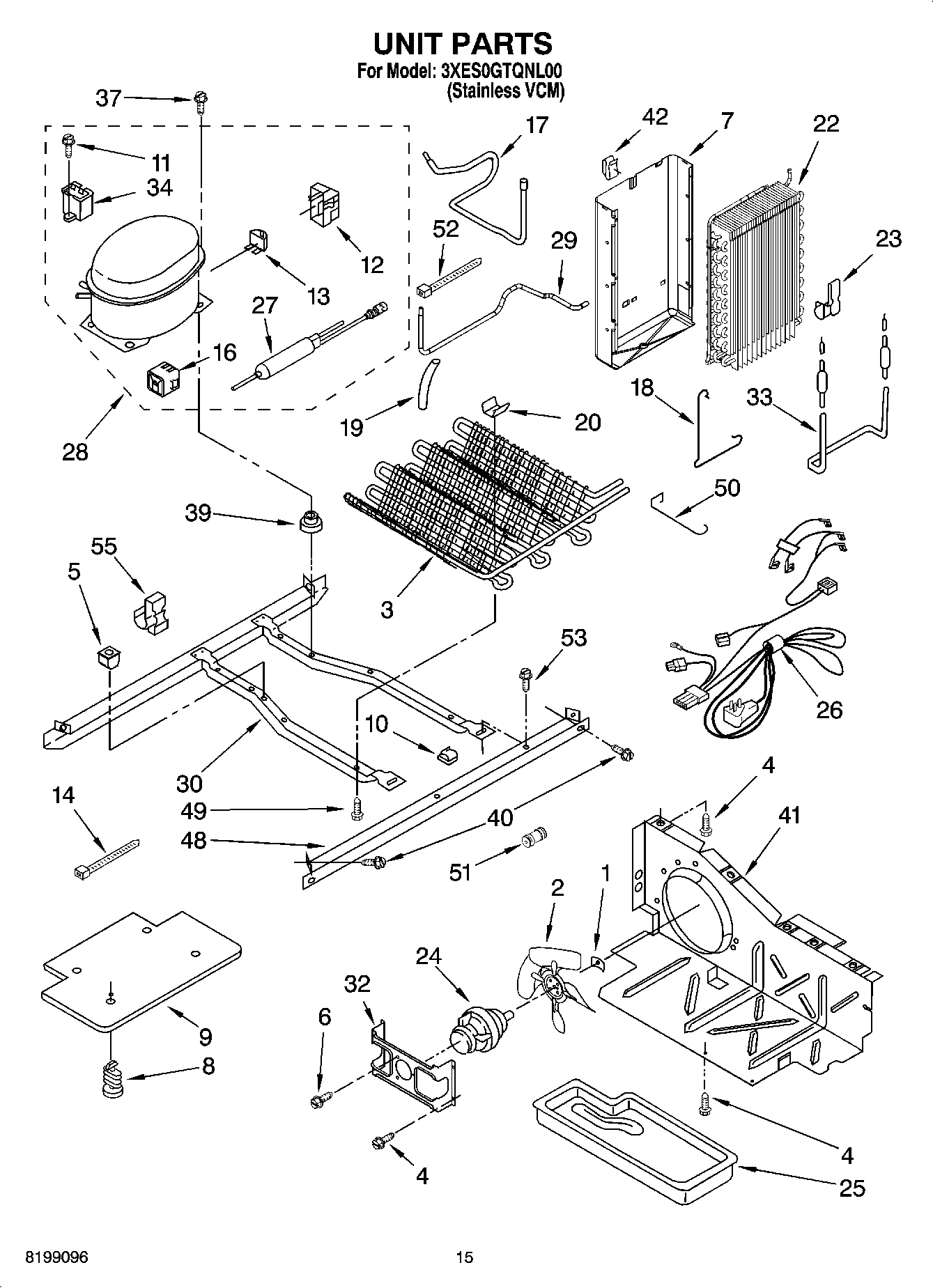

3XES0GTQNL00 09 – UNIT PARTSadmin2025-04-26T12:27:10+00:003XES0GTQNL00 09 – UNIT PARTS ProductsPositionProduct1WP486692 Whirlpool Refrigerator Nut2Blade, Fan32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Screw Grommet6681390 Whirlpool Refrigerator Screw7Heat Shield8489396 Whirlpool Refrigerator Clip9Cover, Unit Compartment10Clip, Tube (3)11W11693756 Whirlpool Screw Assembly12WP61002138 Whirlpool Refrigerator Terminal Cover134388786 Whirlpool Refrigerator Overload16Start-Device, Combination (Start Relay and Overload) for Production172205764 Whirlpool Refrigerator Tube18Clamp19SLEEVE20W10683556 Whirlpool Refrigerator Clip22WP2188822 Whirlpool Refrigerator Evaporator23W11623163 Whirlpool Refrigerator Clip248201703 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Unit, Harness27W10843121 Whirlpool Refrigerator Tube28W10183407 Whirlpool Refrigerator Compressor292261599 Whirlpool Refrigerator Tube30Unit Mounting Frame32WP2181929 Whirlpool Refrigerator Bracket33WP2313330 Whirlpool Refrigerator Heater34WP2201147 Whirlpool Refrigerator Capacitor39876811 Whirlpool Grommet39WP4387558 Whirlpool Refrigerator Compressor Grommet40489340 Whirlpool Refrigerator Screw41Air Baffle42Clip, Heat Shield48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw501105612 Whirlpool Fan Guard51WP4373559 Whirlpool Fitting52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw55876764 Whirlpool Refrigerator Primary Valve55and Optional Parts Not Included55FOLLOWING PARTS NOT ILLUSTRATED55VALVE, ACCESS (1/2``)55VALVE, ACCESS (5/8``)55WP978025 Whirlpool Refrigerator Valve55Clip, Wire & Tube55978030 Whirlpool Refrigerator Valve55978027 Whirlpool Refrigerator Primary Valve55978026 Whirlpool Refrigerator Primary Valve55REFRIGERANT CHARGE 5.0 oz.
