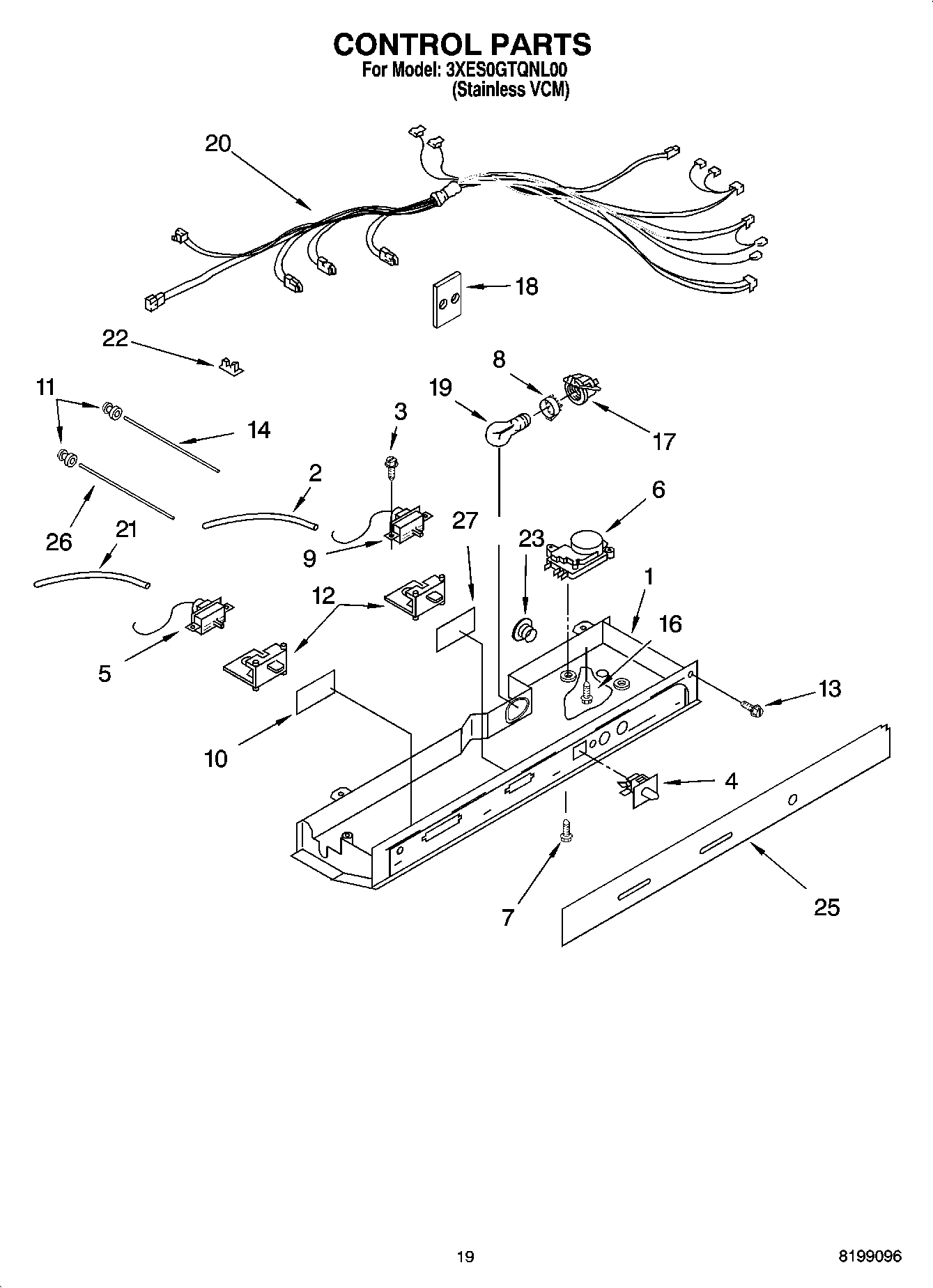

3XES0GTQNL00 11 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

3XES0GTQNL00 11 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3XES0GTQNL00 11 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI13187A7
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI13188A6
Ice Container Assembly
WPL ARI13186A3
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
WP72107 Whirlpool Touchup
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
833938 Whirlpool Refrigerator Terminal
72017 Whirlpool Appliance Touch-Up Paint White
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
606755 Whirlpool Refrigerator Bag
350930 Whirlpool White Spray Paint
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Thermostat (FC)
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8WP2175210 Whirlpool Refrigerator Shroud
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
23940014 Whirlpool Refrigerator Primary Button Plug
25Escutcheon, Control Box
26Light Bar (FC)
27Window
