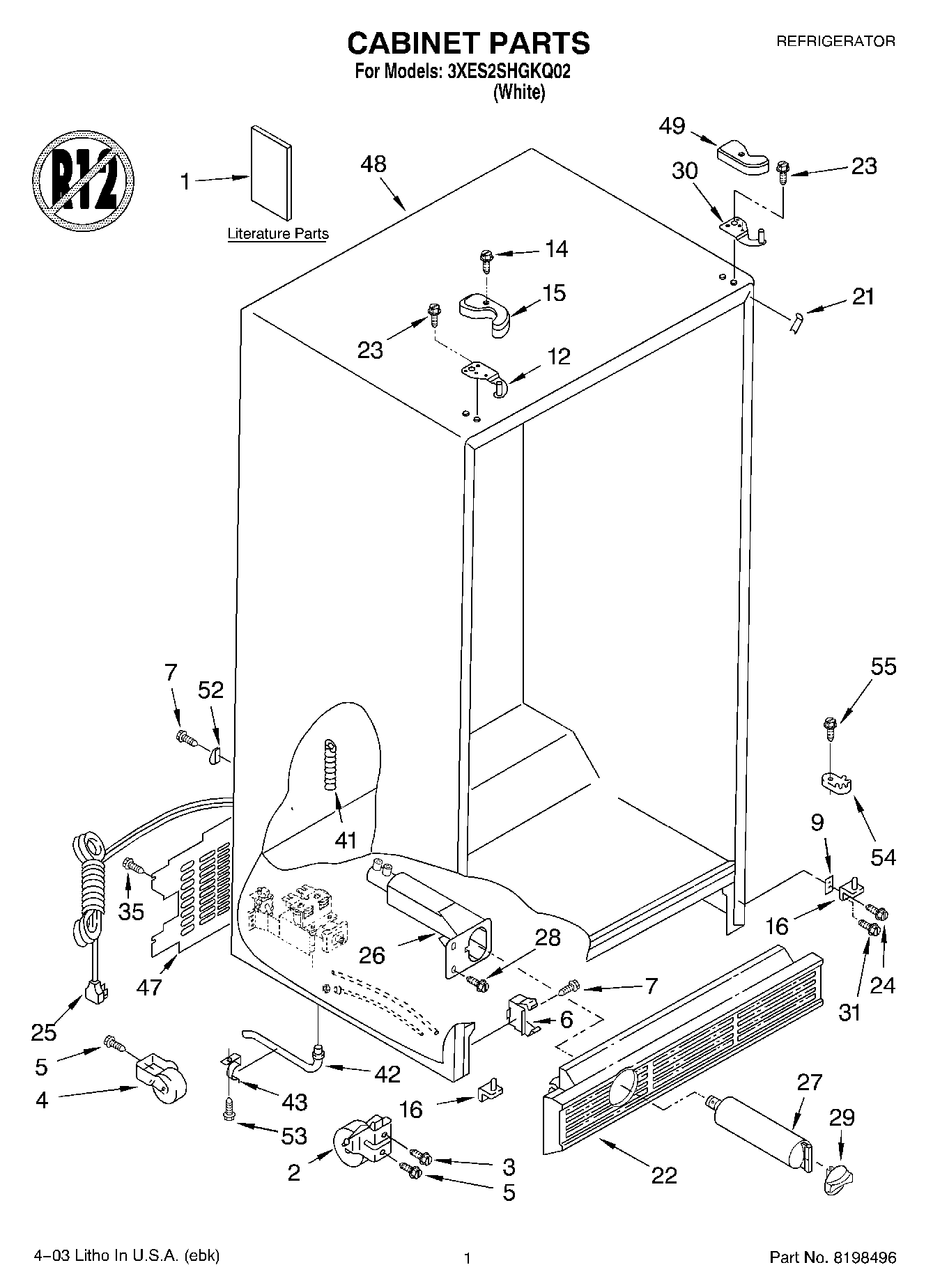

3XES2SHGKQ02 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Label
1	LITERATURE PARTS (Use & Care Guide)
1	WPL LIT628371
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
9	WP2209697 Whirlpool Refrigerator Shim
12	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP8281227 Whirlpool Screw
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
21	Filler, Wrapper (White)
22	W10802713 Whirlpool Refrigerator Grille
24	WP489497 Whirlpool Screw
25	Service Cord
26	WP2186443 Whirlpool Water Filter Housing
27	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
28	WP489500 Whirlpool Refrigerator Screw
29	WP2186494W Whirlpool Water Filter Cap
30	WP2203771 Whirlpool Refrigerator Door Hinge
31	W10856122 Whirlpool Refrigerator Screw
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	WP2203408W Whirlpool Refrigerator Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
