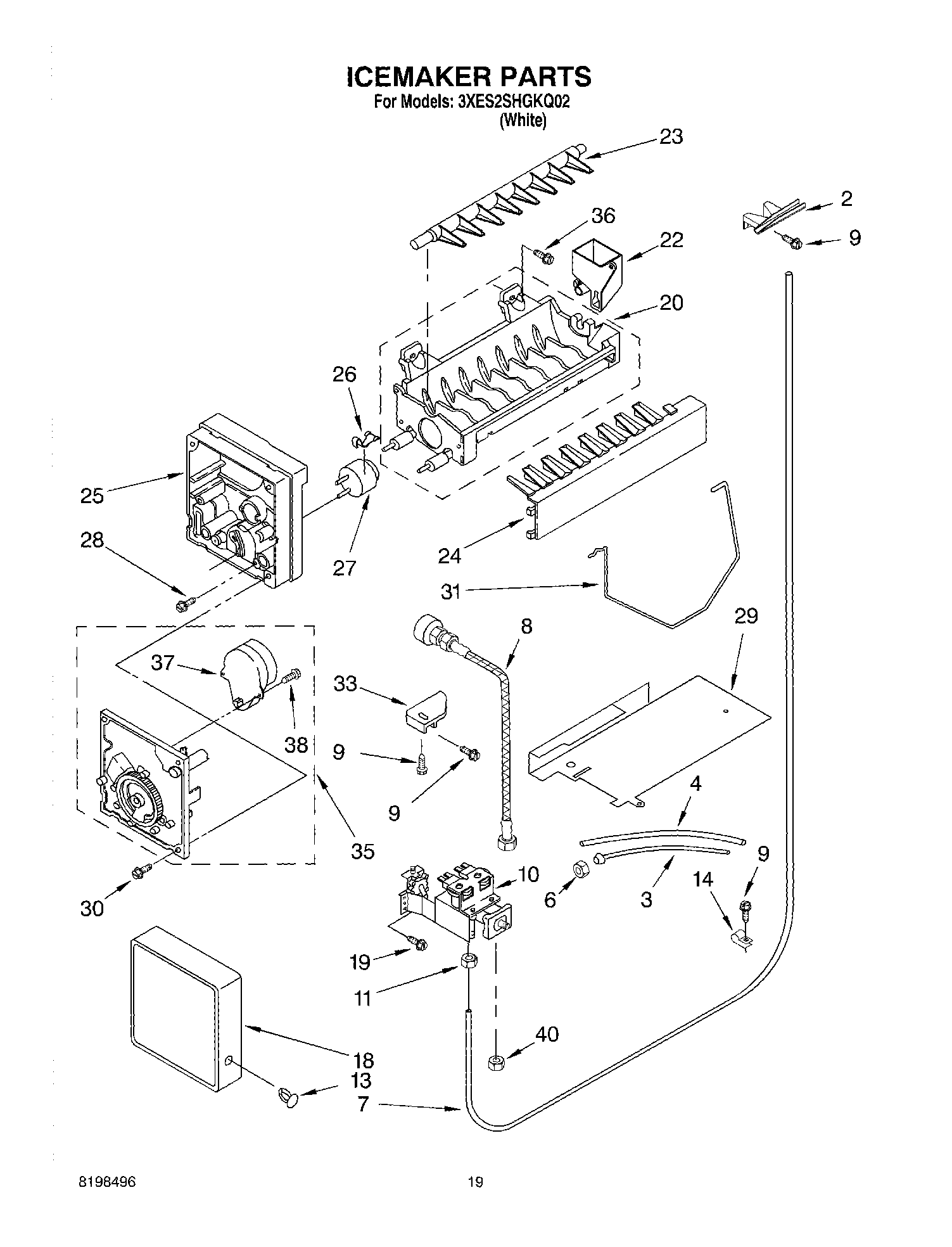

3XES2SHGKQ02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

3XES2SHGKQ02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

3XES2SHGKQ02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
72032 Whirlpool Touch Up Paint Black
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
Torx Key
WPW10312300 Whirlpool Refrigerator Ice Container
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
WPL ARI13210A2
285006 Whirlpool Spray
WP542638 Whirlpool Refrigerator Grease
212643 Whirlpool Refrigerator Permagum Sealer
WP72107 Whirlpool Touchup
TAPE, VINYL (3/4 X 108“)
WPL ARI13209A4
799344 Whirlpool Refrigerator Paint
WPL ARI13208A1
WPL ARI13207A1
WPL ARI13206A3
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPW10312301 Whirlpool Refrigerator Ice Container
350930 Whirlpool White Spray Paint
Almond (Uncut)
2W11505385 Whirlpool Refrigerator Chute
3W11496481 Whirlpool Refrigerator Water Tube
48201597 Whirlpool Inlet Water Fill Tube Kit Filter
6Nut, Compression
7W10823511 Whirlpool Refrigerator Water Tube
8European Water Connection Tube
9WP489478 Whirlpool Refrigerator Screw
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
13WP489115 Whirlpool Refrigerator Rivet
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10122523 Whirlpool Refrigerator Ice Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
292256178 Whirlpool Shield Assembly
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
35W10190933 Whirlpool Refrigerator Motor Assembly
36WP488163 Whirlpool Refrigerator Screw
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
