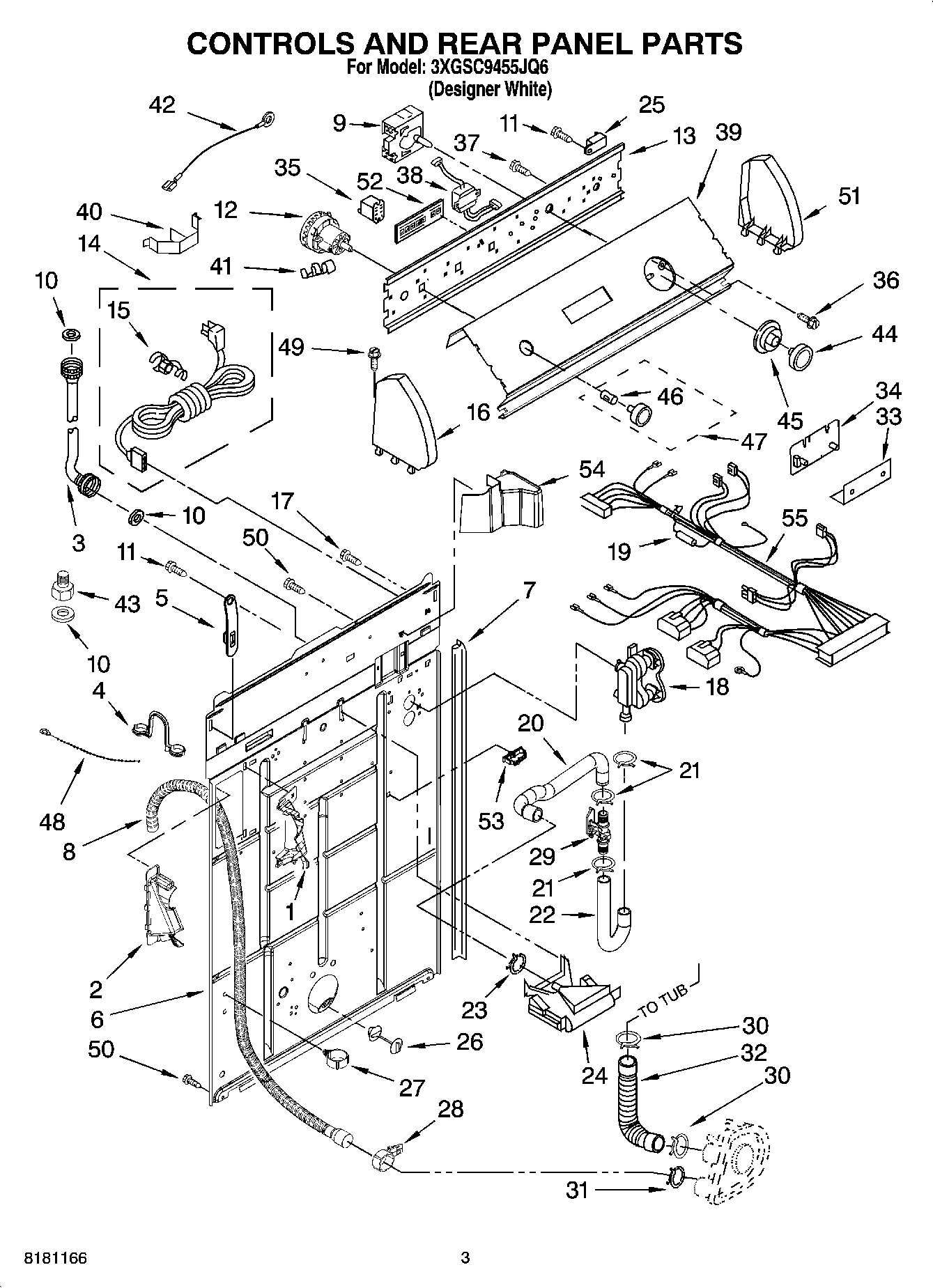

3XGSC9455JQ6 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
2	WPW10096921 Whirlpool Hose
3	WPW10615809 Whirlpool Fill Hose
3	WPW10615831 Whirlpool Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10111545 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	WPW10111181 Whirlpool Fuse Assembly
20	WP3349365 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	WP3357319 Whirlpool Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	3952439 Whirlpool Buzzer
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WP3388228 Whirlpool Screw
34	WPW10110247 Whirlpool Electronic Control Board
35	Relay (240 VAC)
36	WP3400818 Whirlpool Screw
37	Screw (6)
38	3407160 Whirlpool Transformer
39	Panel, Console
40	Clip, Harness & Pressure Hose
41	W10113937 Whirlpool Clamp
42	Wire, Ground
43	WP3357397 Whirlpool Adapter
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
46	WP8536939 Whirlpool Spring Clip
47	WP3957799 Whirlpool Knob
48	WPW10339879 Whirlpool Wire Tie
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	Switch, Clean Touch (7 Pad)
53	Clip, Harness
54	Sh
55	WPL 3956867
