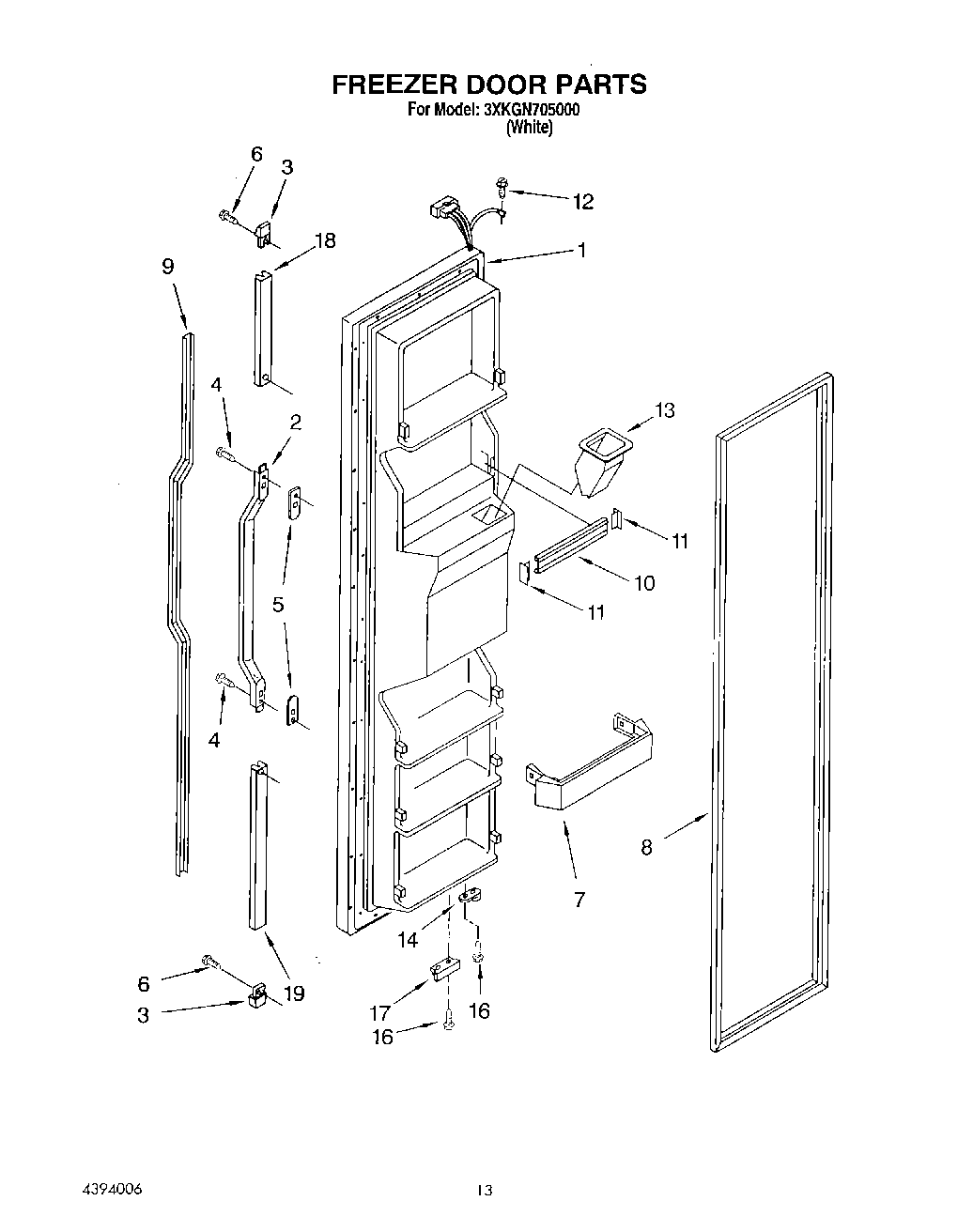

3XKGN705000 08 – FREEZER DOOR

3XKGN705000 08 – FREEZER DOOR

Written by

in

3XKGN705000 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle
3End Cap (2)
5Spacer, Handle
6Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Insert, Handle
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12WP488234 Whirlpool Air Conditioner Screw
13Chute, Ice
144318165 Whirlpool Refrigerator Door Closure Cam Kit
16WP999367 Whirlpool Refrigerator Screw
17Bracket, Door Stop
18Retainer, Insert
19Retainer, Insert
