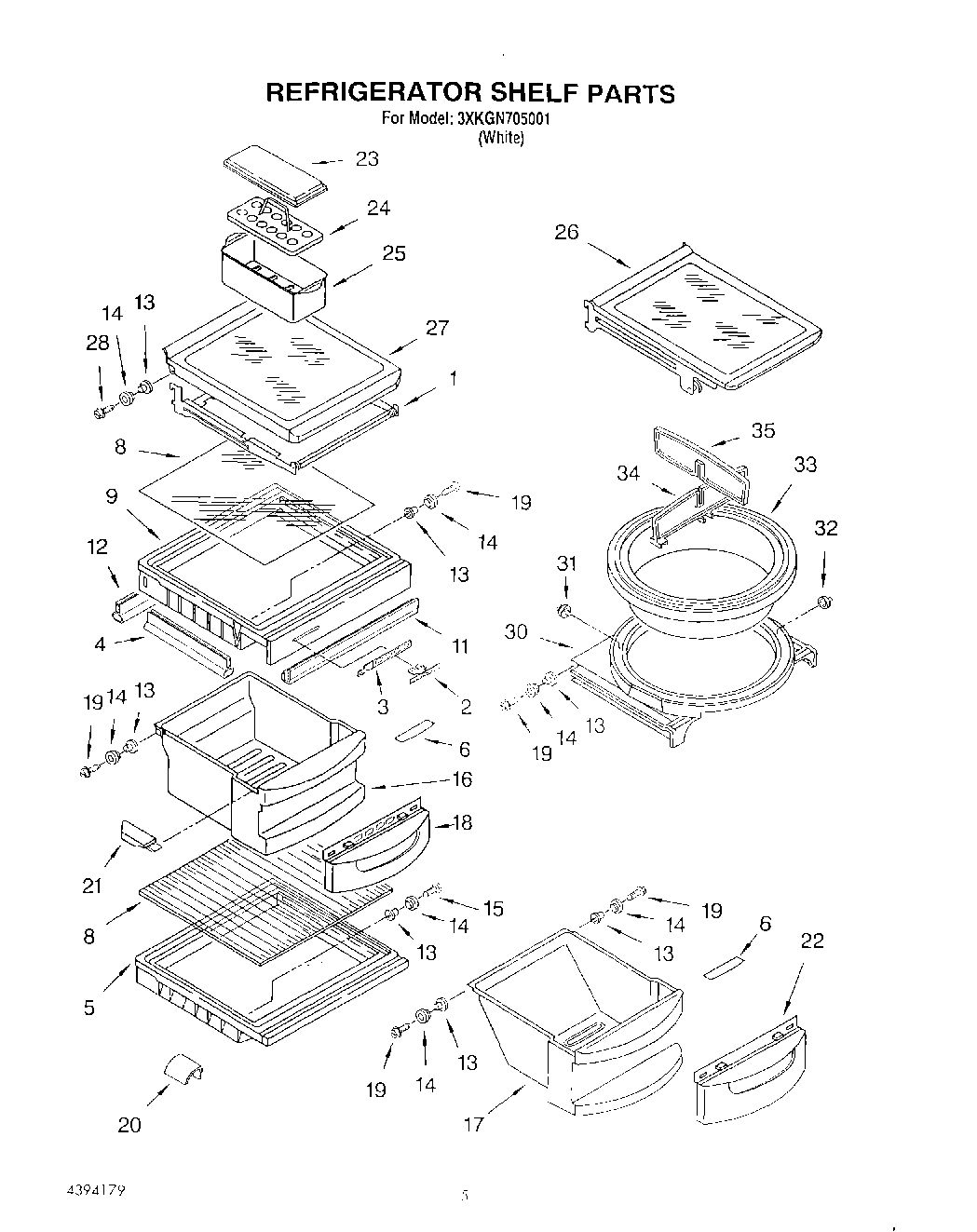

3XKGN705001 04 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2161491 Whirlpool Crisper Drawer Cover
6	Nameplate
8	Glass, Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, (Rear)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14, 18, 19 & 21)
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	Cap, Crisper (Right Side)
21	Cap, Crisper (Left Side)
22	Window, Meat Pan
23	Cover
24	WP2177817 Whirlpool Refrigerator Egg Container
25	W10136387A Whirlpool Refrigerator Egg Container
26	Frame And Roller Asm. (Cantilever)
27	Shelf & Roller Assembly
28	Screw
30	Carriage
31	Roller, Front (2)
32	Roller, Rear (2)
33	Round Pan
34	Divider, 1/2
35	Divider, 1/4
