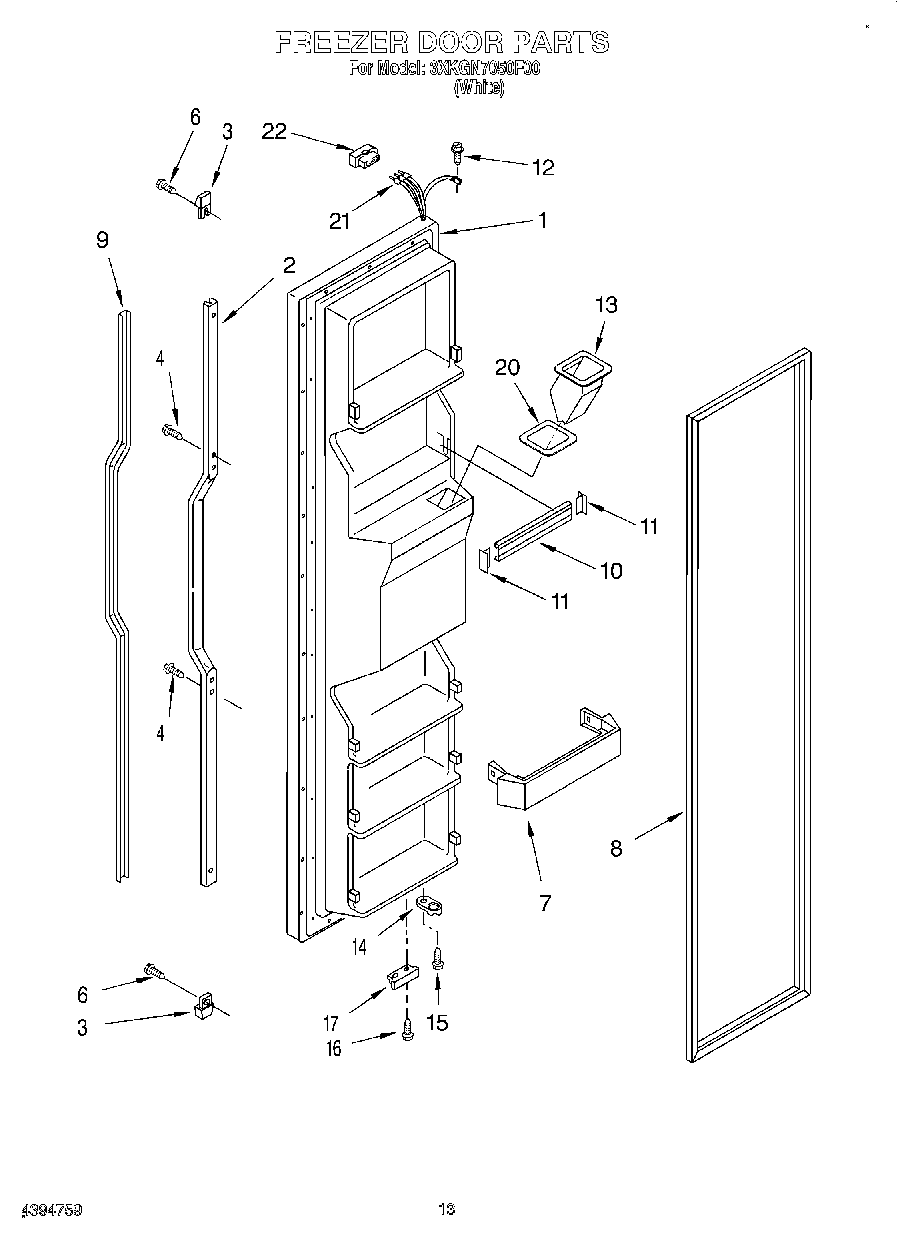

3XKGN7050F00 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Retainer, Insert
3	End Cap, Handle
6	WP3400852 Whirlpool Refrigerator Screw
7	Shelf Bin (4)
8	2159074 Whirlpool Door Gasket Seal
9	Insert, Handle
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12	WP488234 Whirlpool Air Conditioner Screw
13	Chute, Ice
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP3400012 Whirlpool Refrigerator Screw
16	WP999367 Whirlpool Refrigerator Screw
17	Bracket, Door Stop (Chrome)
20	Seal, Housing
21	Wire Harness
22	WP2154473 Whirlpool Refrigerator Connector
